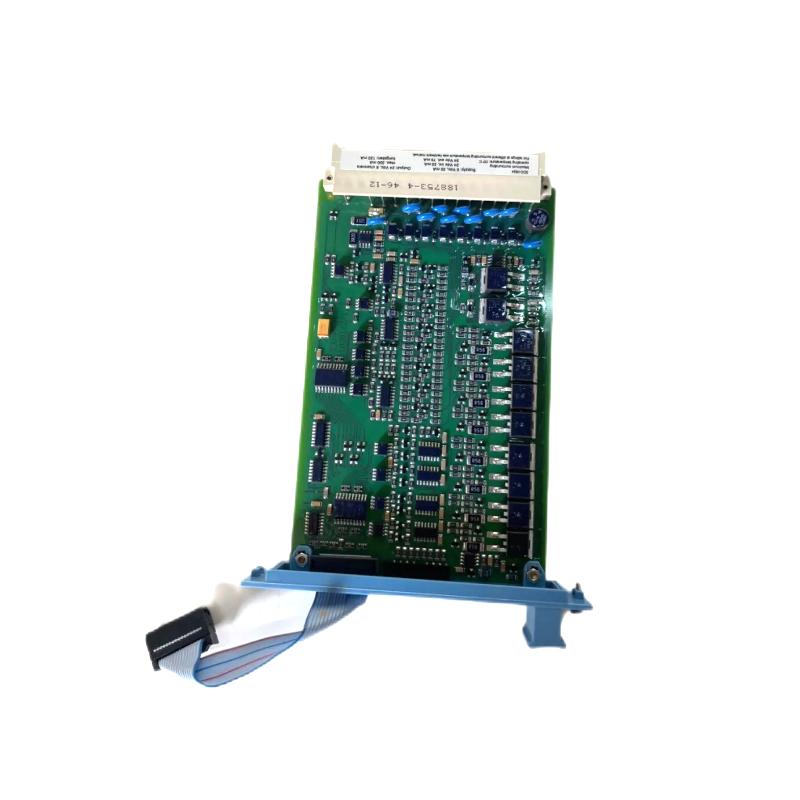

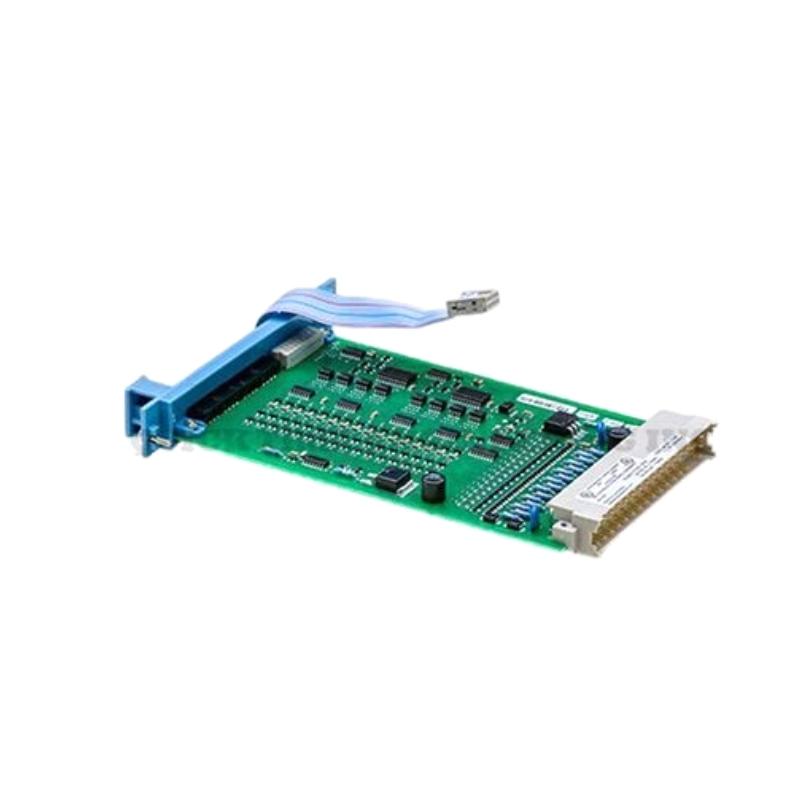

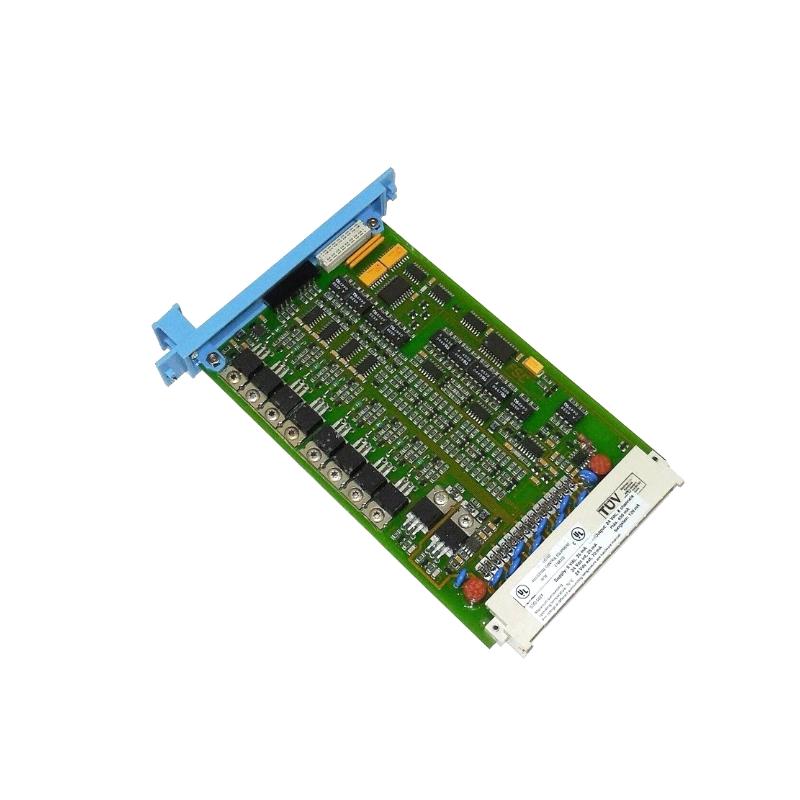

Honeywell FC-SDO-1624 Safe Digital Output Module Recommended products 100% New

Brand：Honeywell DCS

Item No.：Honeywell FC-SDO-1624

Product origin：USA

Dimensions:196.9  × 149.4  × 74.4 mm

Weight:0.38 kg

Original overseas introduction, testing assistance and explanation support, stable and reliable service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The Honeywell FC‑SDO‑1624 is a safety‑rated digital output module designed for use in Honeywell’s Safety Manager / FC‑series I/O systems. It provides 16 independent 24 V DC output channels with integrated safety diagnostics for high‑integrity automation and Safety Instrumented Systems (SIS).

General Information

Model / Type: FC‑SDO‑1624

Manufacturer: Honeywell

Country of Origin: USA

Product Category: Safe Digital Output Module – 16 channels, 24 V DC

Application: Safety instrumented systems (SIS), redundant I/O racks, industrial automation

Electrical & Functional Specifications

Number of Output Channels: 16

Output Voltage: 24 V DC solid‑state source (per channel)

Maximum Current per Channel: 0.55 A typical

Load Capability: Supports resistive or inductive loads with built‑in suppression; max load capacitance 1 µF

Voltage Drop at Max Current: < 2 V per channel

Off‑Current (No Load): < 0.1 mA

Power Supply Requirements:

5 V DC logic supply: ~25 mA

24 V DC internal: ~25 mA

24 V DC external: ~70 mA (no output load)

Diagnostics / Safety Features:

Channel‑level monitoring

Cross‑channel diagnostics

Fail‑safe de‑energize of outputs

Certifications / Approvals: CE, TÜV, UL, CSA, FM

Environmental Conditions

Operating Temperature Range: −20 °C to +60 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non‑condensing

Protection Rating: IP20 (module designed for internal cabinet environment)

Mounting: Rack or chassis mounting in Safety Manager I/O system

Dimensions & Weight

Dimension: 196.9  × 149.4  × 74.4 mm

Weight: ~0.38 kg

Authentic brand-new products, 24/7 online support, stock available, rapid quotes provided.

The product price is transparent, delivery is fast, and project procurement supports a tiered pricing plan.
