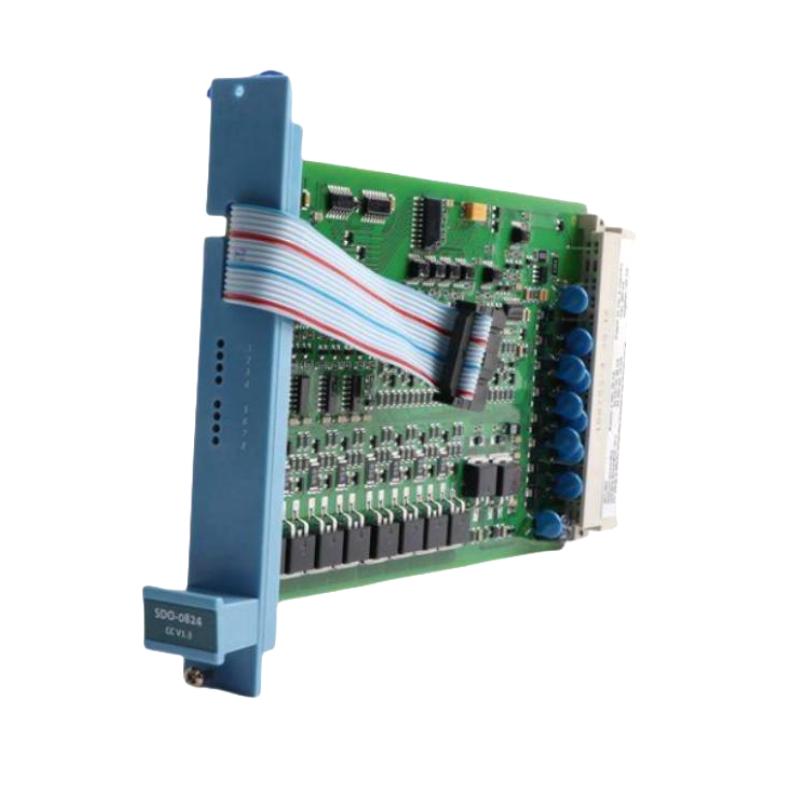

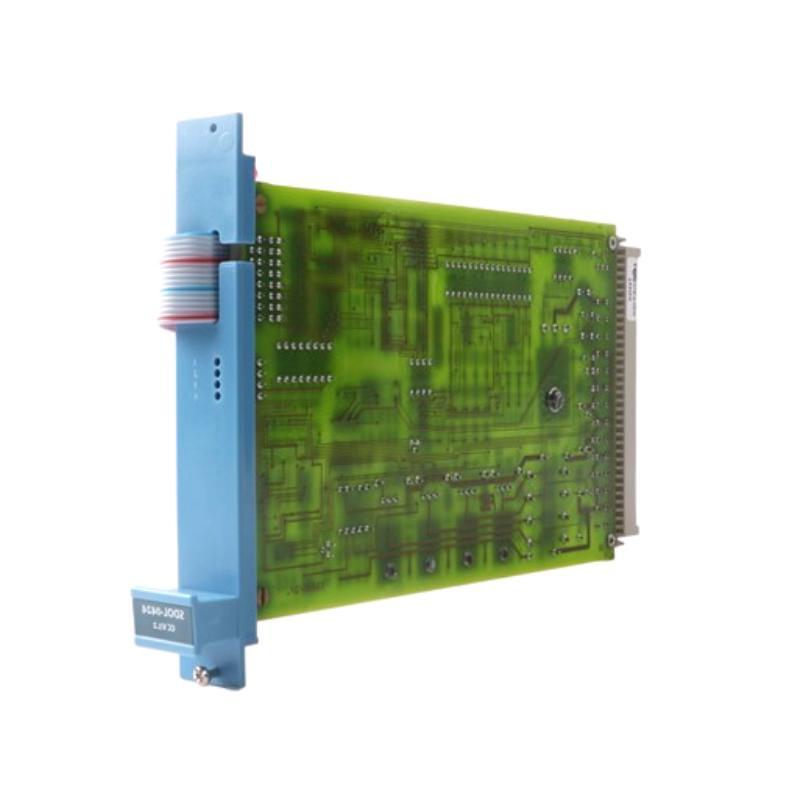

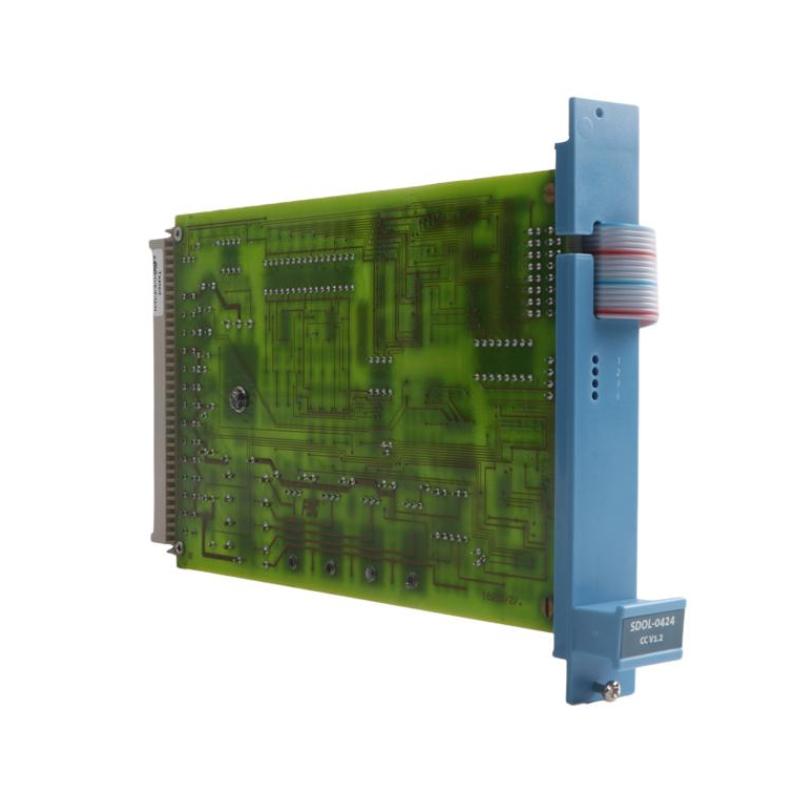

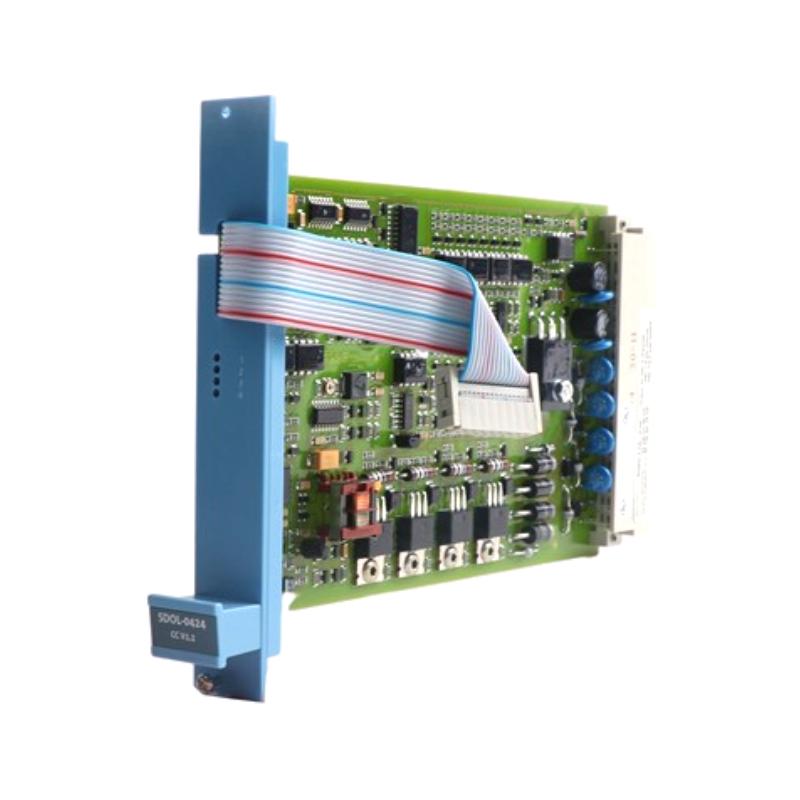

Honeywell FC-SDO-0424 Safe Digital Output Module Recommended products Unbelievable Prices!

Brand：Honeywell DCS

Item No.：Honeywell FC-SDO-0424

Product origin：USA

Dimensions:196.9 × 149.4 × 74.4 mm

Weight:0.38 kg

The source of the product is clear and reliable, support third-party testing, and perfect after-sales support

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The Honeywell FC-SDO-0424 is a safety-rated digital output module designed for use in Honeywell’s Safety Manager / FC series safety systems. It provides multiple independent output channels for driving actuators or modules in high-integrity automation and safety instrumented systems.

General Information

Model / Type: FC-SDO-0424

Manufacturer: Honeywell

Country of Origin: United States / Netherlands (various sources)

Product Category: Safe Digital Output Module – 24 V DC typical output, 4 channels

Application: Safety instrumented systems (SIS), redundant I/O racks, fail-safe digital outputs

Electrical & Functional Specifications

Number of Output Channels: 4

Output Voltage: 24 V DC solid-state source (each channel)

Maximum Current per Channel: 2 A (typical)

Maximum Total Module Load: 6 A (for all channels combined)

Short-circuit Proof: Yes

Voltage Drop at Max Current: < 1.3 V at 2 A (typical)

Maximum Load Capacitance: 1 µF

Onboard Suppression for Inductive Loads: Each output includes suppression diode for inductive load protection

Logic Supply Requirements:

5 V DC logic supply (typical current ~15 mA)

24 V DC internal/external supply (no-load currents: internal ~35 mA; external ~50 mA)

Diagnostic / Safety Features:

Output monitoring (loop test)

Cross-channel diagnostics

Fail-safe de-energize of outputs when required

Certifications / Approvals: CE, TUV, UL, CSA, FM (depending on system configuration)

Environmental Conditions

Operating Temperature Range: –40 °C to +70 °C

Storage Temperature Range: –40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Module suitable for internal cabinet use (nominal IP20)

Mounting: Rack or chassis mounting within a Safety Manager I/O system; space requirement: 4 TE width, 3 HE height unit

Dimensions & Weight

Dimension: ~ 196.9 × 149.4 × 74.4 mm

Weight: ~ 0.38 kg
