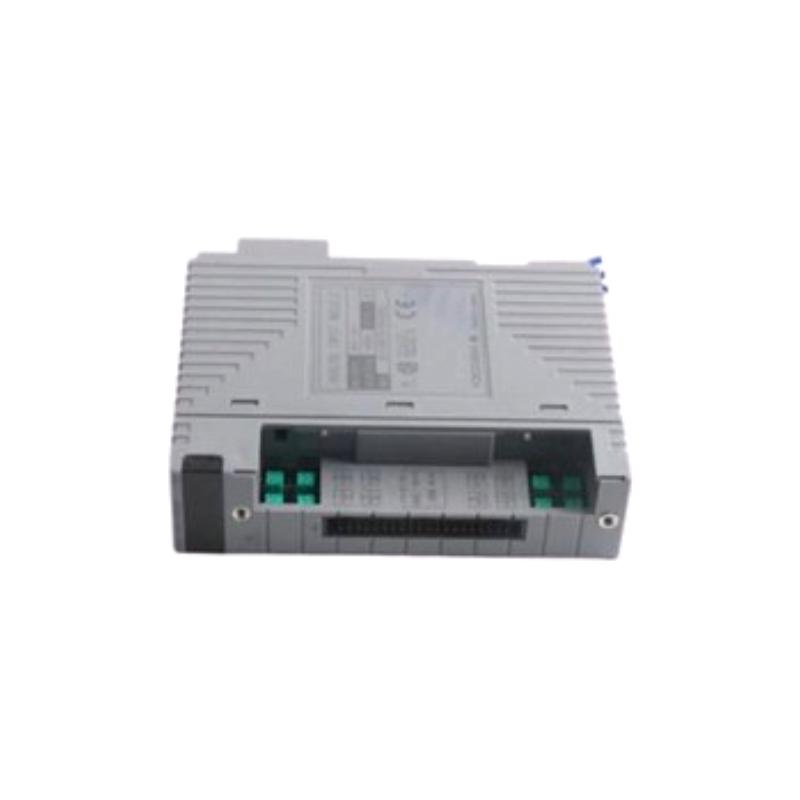

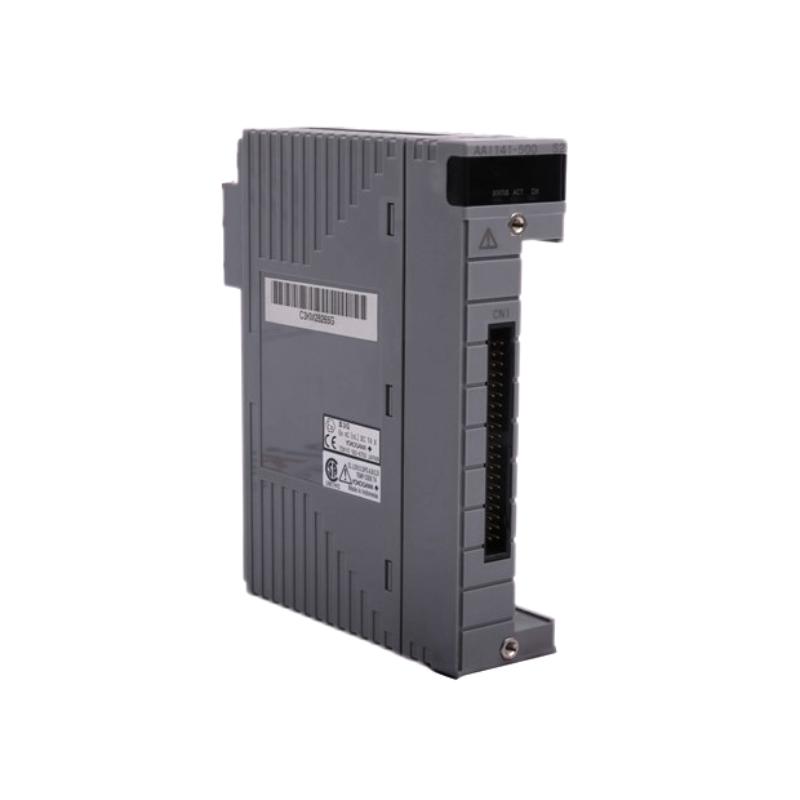

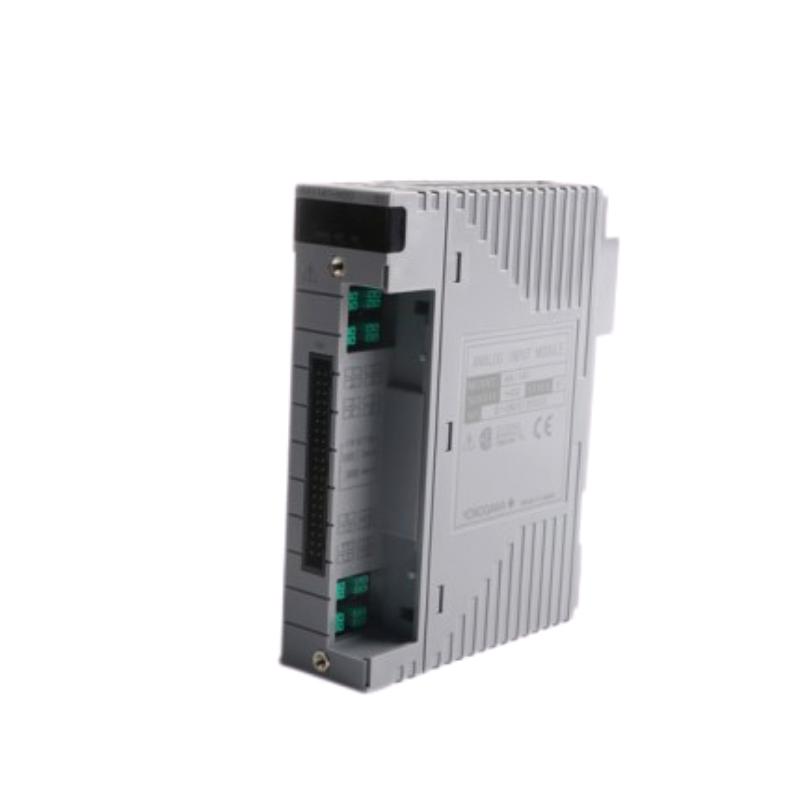

Yokogawa AAI141 Analog Input Module Unbelievable Prices 100% New

Brand：Yokogawa Electric

Item No.：Yokogawa AAI141

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Original source, data supports testing content, and after-sales processing is efficient

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The AAI141 is a 16-channel analog input module (non-isolated) designed to accept standard field signals (4-20 mA DC or 1-5 V DC) from 2-wire or 4-wire transmitters.

General Information

Model / Type: AAI141

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 16-channel, non-isolated

Suffix/Option Note: Many suffix codes available (for example -S00, -S50, -H50 etc) indicating variant features.

Electrical & Functional Specifications

Number of Input Channels: 16

Input Signal Types:

Current input: 4 to 20 mA DC

Voltage input: 1 to 5 V DC (when selected)

Allowable Input Current/Voltage:

Current input: 27 mA (max)

Voltage input: ±7.5 V (max)

Input Resistance (Power ON):

Current input: approx. 400 Ω (at 20 mA) to 1000 Ω (at 4 mA)

Voltage input: approx. 1 MΩ or larger

Input Resistance (Power OFF):

Current input: ≥ 500 kΩ

Voltage input: ≥ 340 kΩ or larger

Accuracy:

Current input: ±16 µA

Voltage input: ±4 mV

Data Update Period: 10 ms

Step Response Time: 100 ms

Transmitter Power Supply (2-wire type): Minimum ~14.8 V (at 20 mA); Maximum ~26.4 V (at 0 mA); output current limit ~27 mA

Tem­per­ature Drift:

Current input: ±16 µA per 10 °C

Voltage input: ±4 mV per 10 °C

Maximum Current Consumption: 310 mA @ 5 V DC; 450 mA @ 24 V DC

External Connection: Terminal connection by pressure clamp, KS cable interface adapter, or MIL-connector cable

Environmental Conditions

Operating Temperature Range: approx. -20 °C to +70 °C

Storage Temperature Range: approx. -40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Mounting: Fits in compatible Yokogawa I/O rack or field control unit

Dimensions & Weight

Dimension: 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
