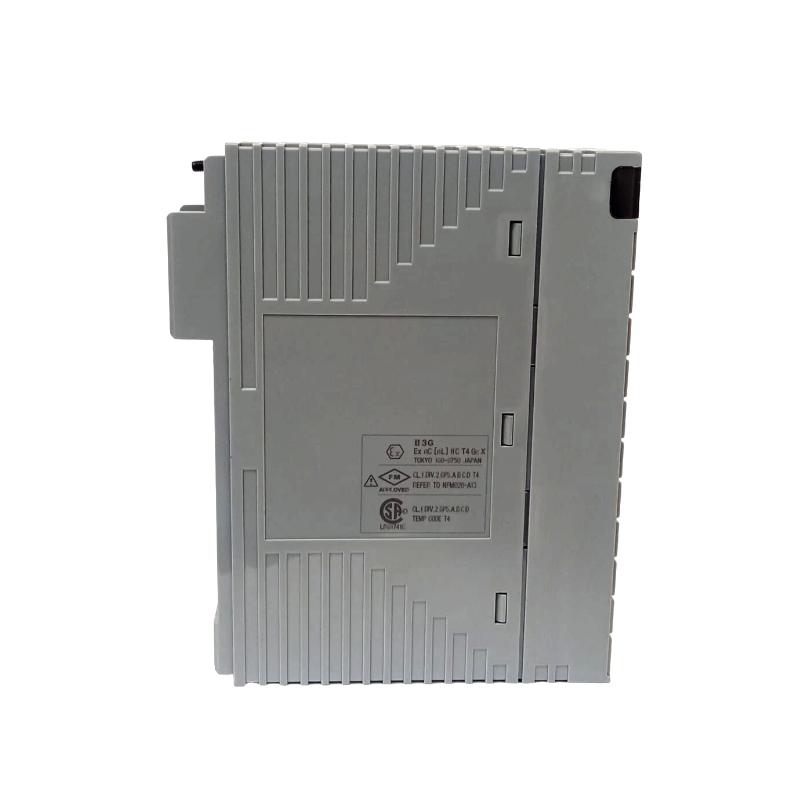

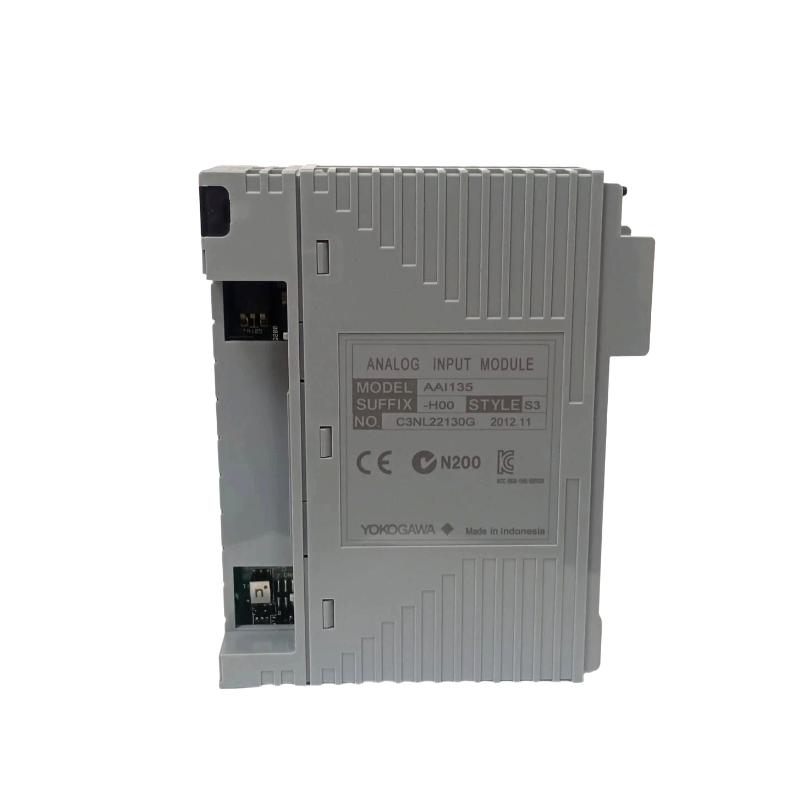

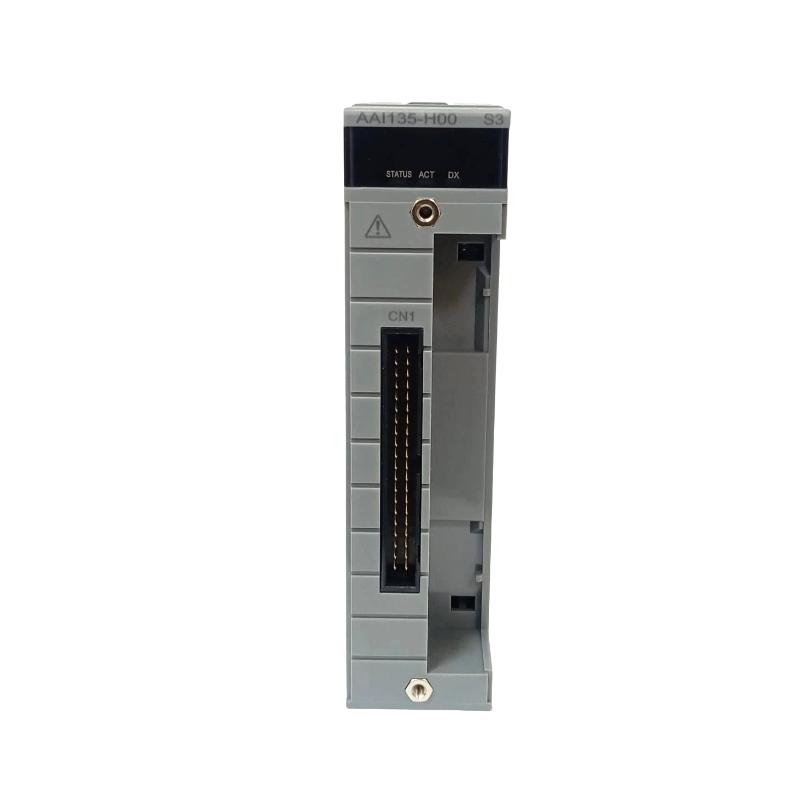

Yokogawa AAI135-H50/13S00 Analog Input Module Shelf life 1 year Original

Brand：Yokogawa Electric

Item No.：Yokogawa AAI135-H50/13S00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

Flexible stock of various models, support for rapid response, welcome to cooperate and communicate!

Product Introduction：

Overview

The Yokogawa AAI135‑H50/13S00 is an 8‑channel isolated analog input module designed for use in industrial DCS systems. It accepts 4–20 mA current input signals and features a pressure clamp terminal block for secure field device connections.

General Information

Model / Type: AAI135‑H50/13S00

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 8‑channel, 4–20 mA, Isolated

Application: Process automation, DCS I/O racks, redundant I/O configurations

Electrical & Functional Specifications

Number of Input Channels: 8 isolated channels

Input Signal: 4 to 20 mA DC

Allowable Input Current (max): ~25 mA

Input Resistance (Power ON): ~270 Ω at 20 mA to ~350 Ω at 4 mA

Input Resistance (Power OFF): ≥ 500 kΩ

Accuracy: ±16 µA

Data Update Period: ~10 ms

Transmitter Power Supply (2‑wire type): Minimum ~19.0 V at 20 mA; Maximum ~25.5 V at 0 mA

Drift due to Ambient Temperature Change: ±16 µA per 10 °C

Maximum Current Consumption: Approx. 310 mA @ 5 V DC; Approx. 450 mA @ 24 V DC

Withstanding Voltage: Between input and system: 500 V AC for 1 minute; Between input channels: 500 V AC for 1 minute

Environmental Conditions

Operating Temperature Range: −20 °C to +70 °C (depending on option code)

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non‑condensing

Mounting / Connection: Pressure clamp terminal block for field device connections

Dimensions & Weight

Dimension: 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
