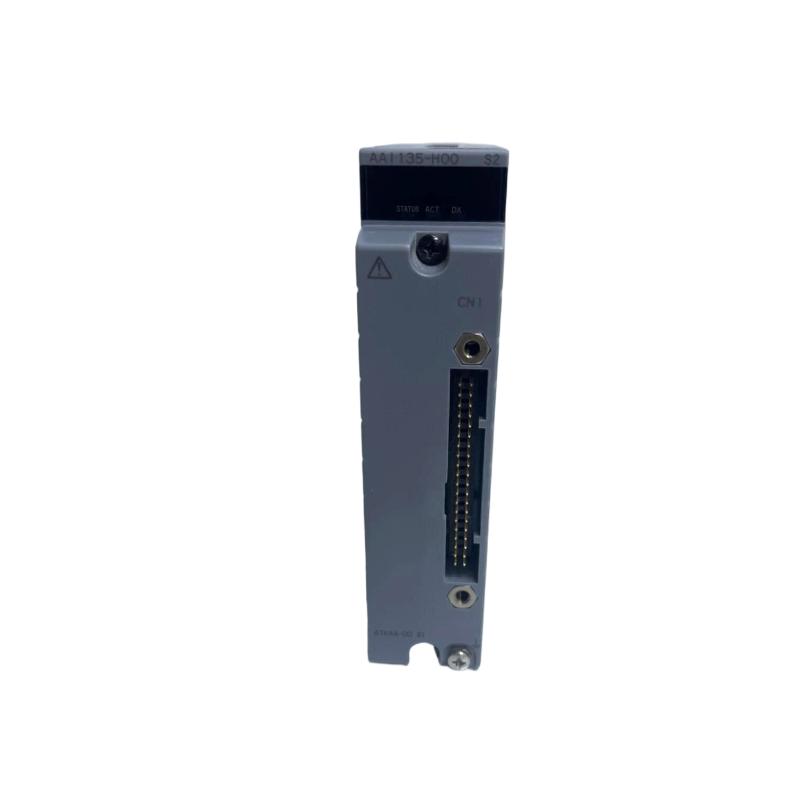

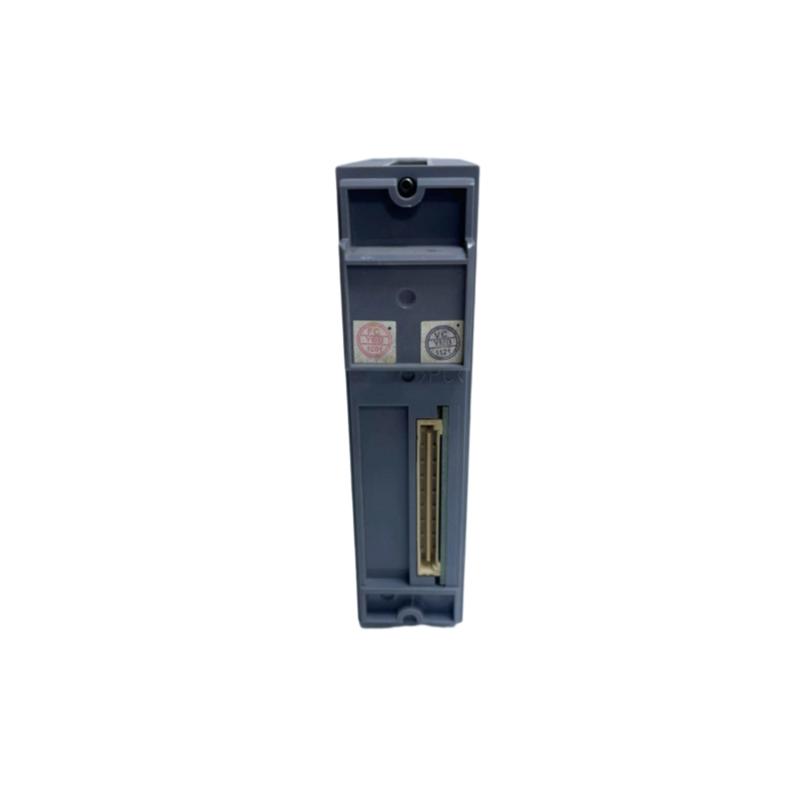

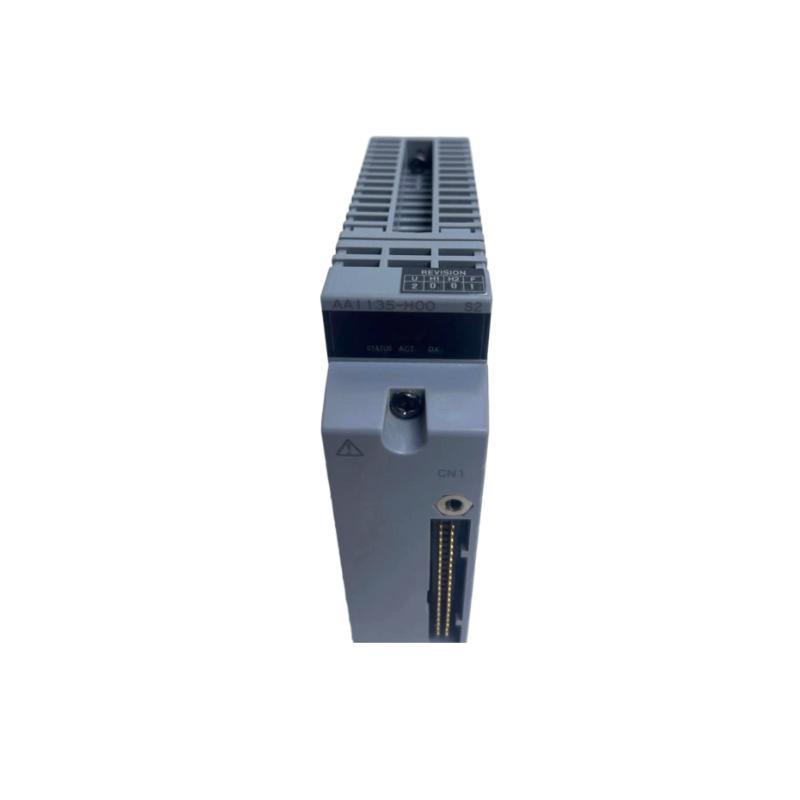

Yokogawa AAI135-SE0 Analog Input Module Recommended products New In Stock

Brand：Yokogawa Electric

Item No.：Yokogawa AAI135-SE0

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The Yokogawa AAI135-S00 is an 8-channel isolated analog input module designed for 4–20 mA current-input signals from field devices. It is used in distributed control systems (DCS) and industrial automation racks.

General Information

Model / Type: AAI135-S00

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 8-channel, 4–20 mA, isolated channels

Application: Process automation I/O racks, field device signal acquisition

Electrical & Functional Specifications

Number of Input Channels: 8 isolated channels

Input Signal: 4 to 20 mA DC

Allowable Input Current (max): ≈ 25 mA

Input Resistance (Power ON): ≈ 290 Ω at 20 mA to ≈ 450 Ω at 4 mA

Input Resistance (Power OFF): ≥ 500 kΩ

Accuracy: ±16 µA

Data Update Period: ≈ 10 ms

Transmitter Power Supply (2-wire type): Minimum ≈ 15.0 V at 20 mA; Maximum ≈ 29.3 V at 0 mA

Temperature Drift: ±16 µA per 10 °C

Maximum Current Consumption: ≈ 360 mA at 5 V DC; ≈ 450 mA at 24 V DC

Withstanding Voltage: 500 V AC between input and system or between input channels, 1 minute

Environmental Conditions

Operating Temperature Range: −20 °C to +70 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Mounting / Connection: Pressure clamp terminal or KS cable interface adapter

Dimensions & Weight

Dimension: 107.5 × 32.8 × 130 mm

Weight: 0.3 kg

Brand-new original products ready to ship, quotes provided instantly, customer service online.

The import process is clear, the supply is timely, and matching quotation suggestions can be provided for large quantities.
