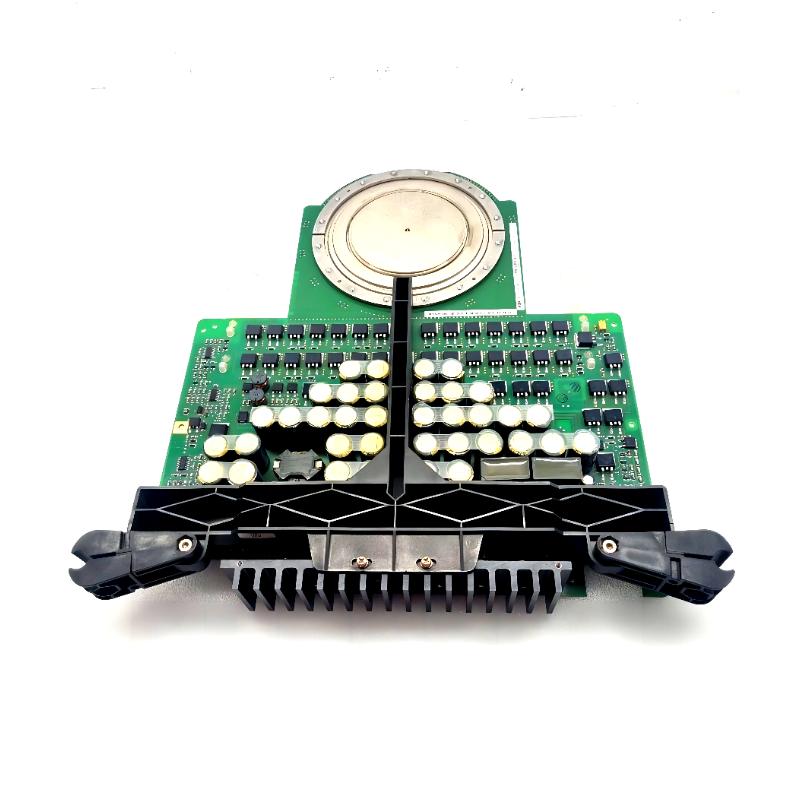

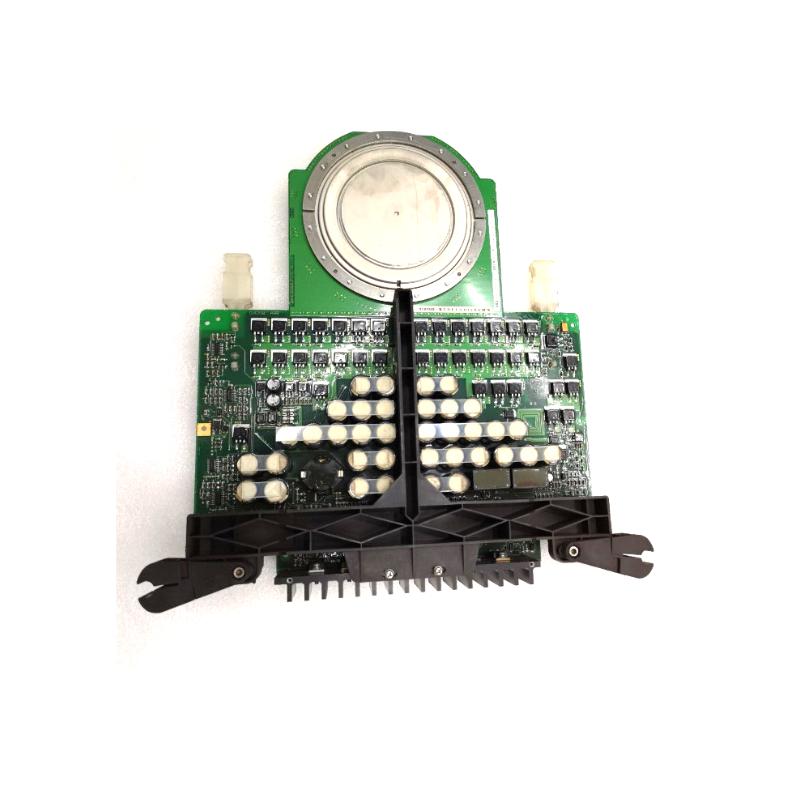

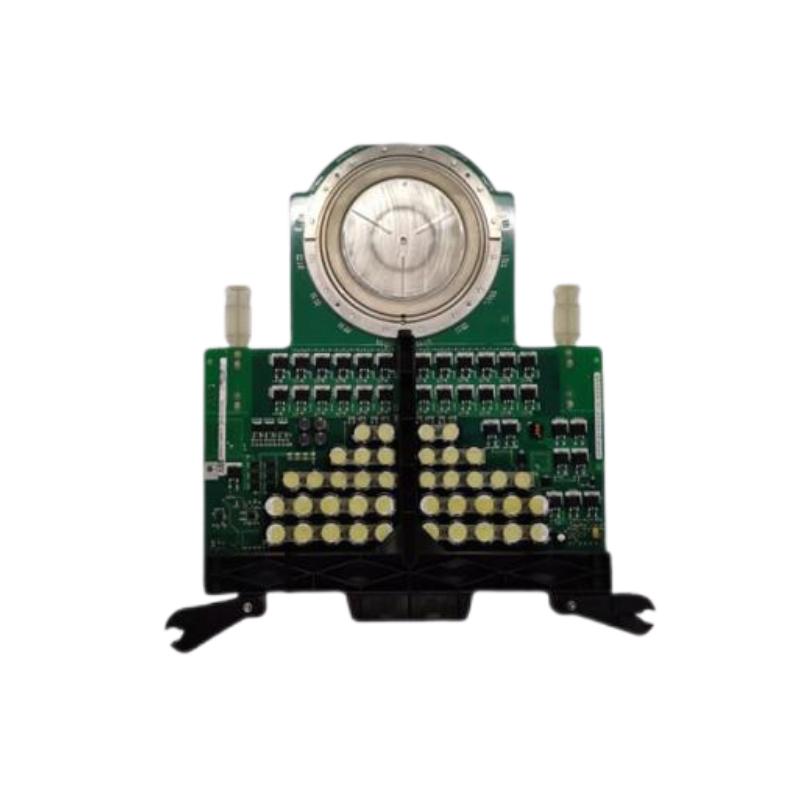

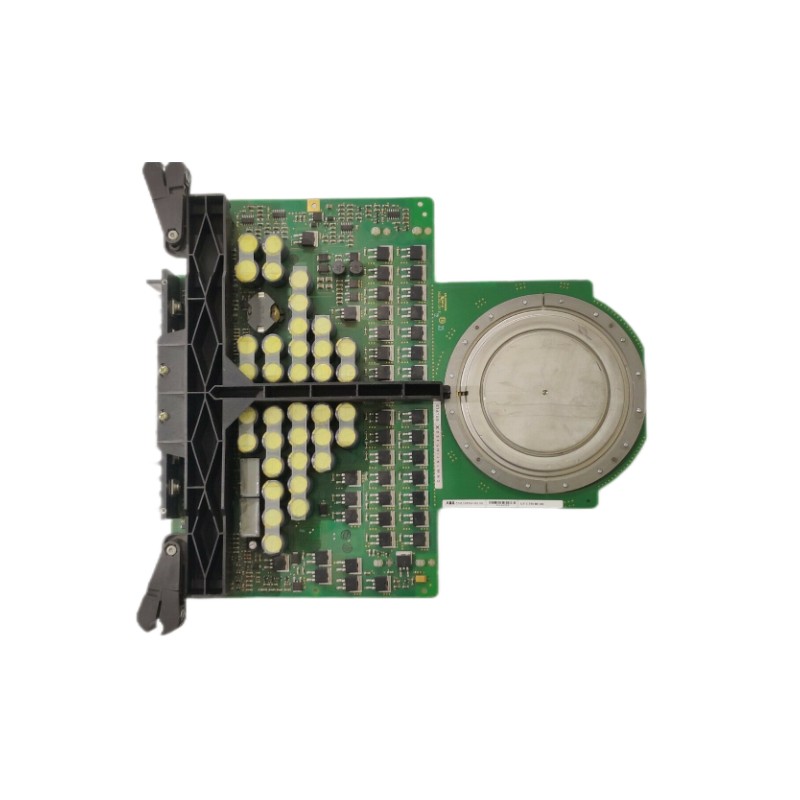

ABB 5SHY3545L0010 3BHB013088R0001 Digital Output Original Fast Shipping!

Brand：ABB PLC

Item No.：ABB 5SHY3545L0010 3BHB013088R0001

Product origin：Sweden

Dimensions:60.2 × 138.5 × 109 mm

Weight:0.6 kg

Formal source, test instructions can be coordinated, and after-sales service continues to follow up

Complete models, inventory is updated in real time, welcome to get the latest list!

Product Introduction：

Overview

The ABB XVC770BE101 (3BHE021083R0101) is a digital/output-module type control board used in industrial automation and control systems. It is designed for signal interfacing, control inputs/outputs and communication with higher-level controllers.

General Information

Part Number: 3BHE021083R0101

Model / Type: XVC770BE101

Manufacturer: ABB

Country of Origin: Sweden

Product Category: Digital Output / Control I/O Module

Basic Description: An interface/control module supporting multiple digital I/Os, analog inputs/outputs and communication interfaces.

Electrical & Functional Specifications

Analog input support: 2 or 4 channels for load-cell signals.

Analog outputs: 4 channels (voltage or current).

Digital I/O: 8 digital inputs for control signals, 8 digital outputs.

Supply: +24 V for external units (max 0.5 A).

Communication: Ethernet connection, 2 × RS-232 serial interfaces for displays/control.

Wide-voltage DC power input (12 V to 48 V DC) in redundant configuration.

Typical no-load power consumption at 24 V DC: ~1.2 W (8 channels) or ~2.64 W (2 channels).

Full-load at 24 V DC: ~2.16 W (8 channels) or ~3.36 W (2 channels).

Environmental & Physical Specifications

Operating Temperature Range: −40 °C to +85 °C

Storage Temperature Range: −40 °C to +85 °C

Humidity: 5% to 95% RH (non-condensing)

Protection Class: Metal housing, IP40 rated

Mounting: Wall-mounted or DIN rail/rail mount

Dimensions & Weight

Dimension: 60.2 × 138.5 × 109 mm

Weight: Approximately 0.6 kg
