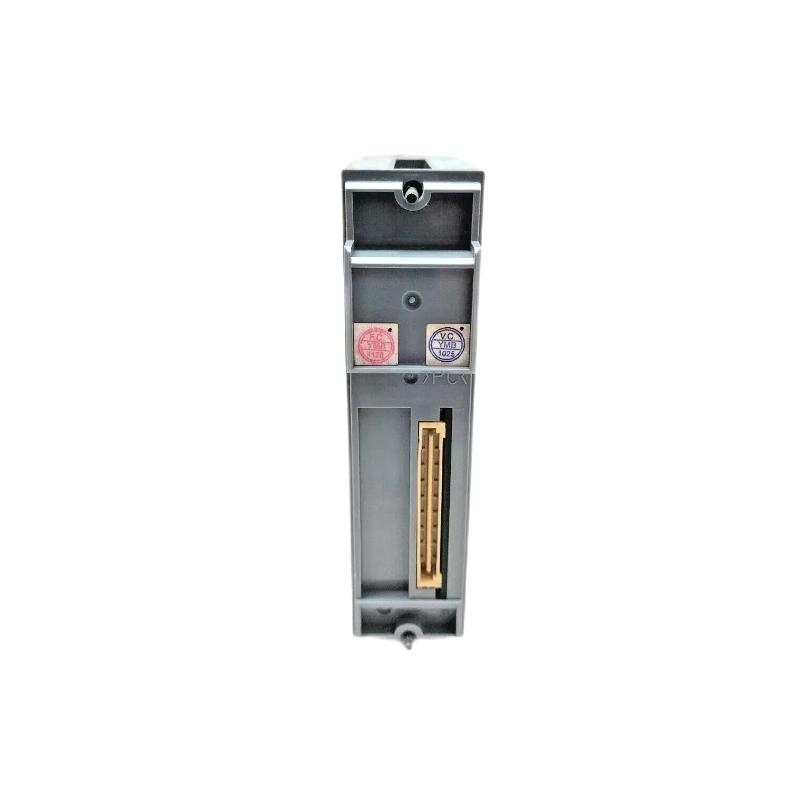

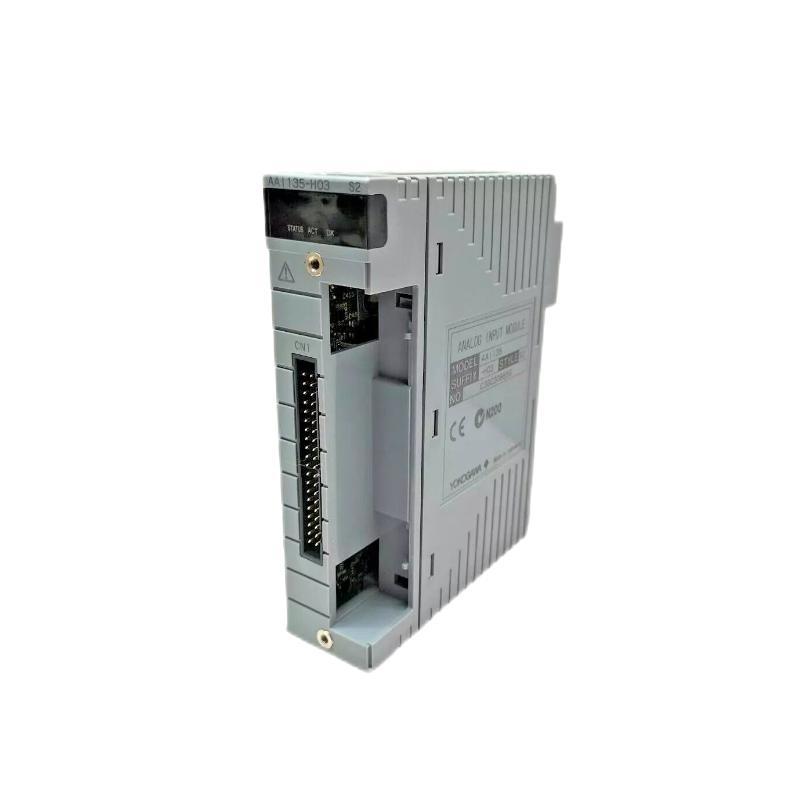

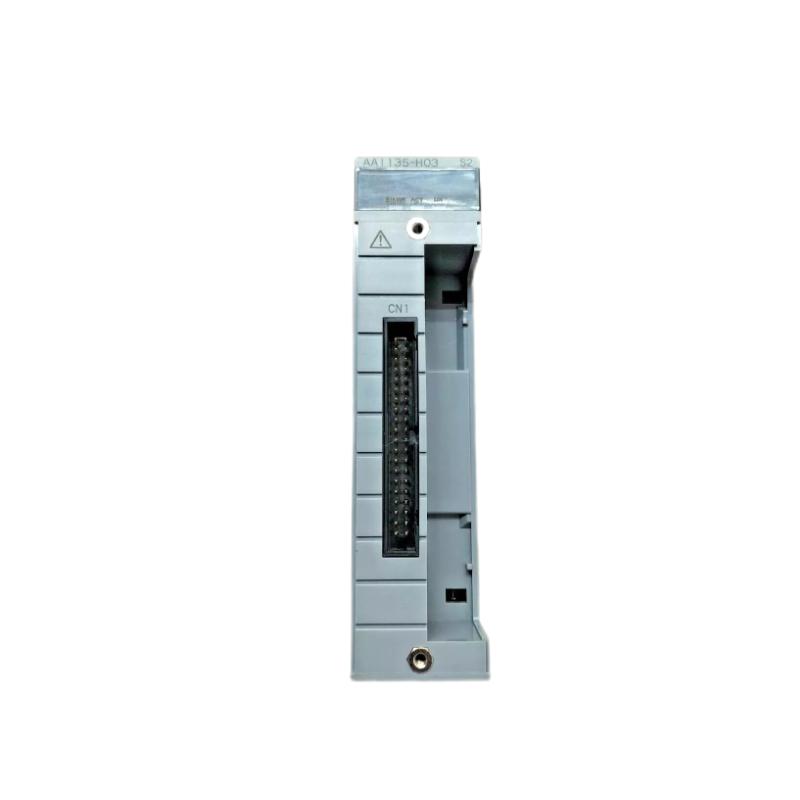

Yokogawa AAI135-H03 Analog Input Module 12-Month Warranty New In Stock

Brand：Yokogawa Electric

Item No.：Yokogawa AAI135-H03

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

The inventory covers multiple brands and series, supports fast delivery, welcome to call for negotiation!

Product Introduction：

Overview

The Yokogawa AAI135-H03 is an 8-channel isolated analog input module (4-20 mA signals) intended for use in industrial DCS or field I/O systems. It provides precise and reliable acquisition of analog signals from field devices with channel isolation.

General Information

Model / Type: AAI135-H03

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 4-20 mA, 8-Channel, Isolated

Application: Process automation I/O racks, redundant I/O modules, field-device signal acquisition

Electrical & Functional Specifications

Number of Input Channels: 8 (isolated)

Input Signal Type: 4 to 20 mA DC

Input Resistance (Power ON): ~270 Ω at 20 mA, ~350 Ω at 4 mA

Input Resistance (Power OFF): ≥ 500 kΩ

Accuracy: ±16 µA

Data Update Period: ~10 ms

Transmitter Power Supply (2-wire type): Minimum approx. 19.0 V at 20 mA, Maximum approx. 25.5 V at 0 mA

Temperature Drift: ±16 µA per 10 °C

Maximum Current Consumption: Approx. 310 mA @ 5 V DC, Approx. 450 mA @ 24 V DC

Isolation / Withstanding Voltage: Typically ~500 V AC between input and system or between input channels

Environmental Conditions

Operating Temperature Range: −20 °C to +70 °C (typical, depending on suffix options)

Storage Temperature Range: −40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Mounting / Connection: Pressure clamp terminals, KS cable interface or MIL connector adapter

Dimensions & Weight

Dimension: 107.5 × 32.8 × 130 mm

Weight: 0.3 kg
