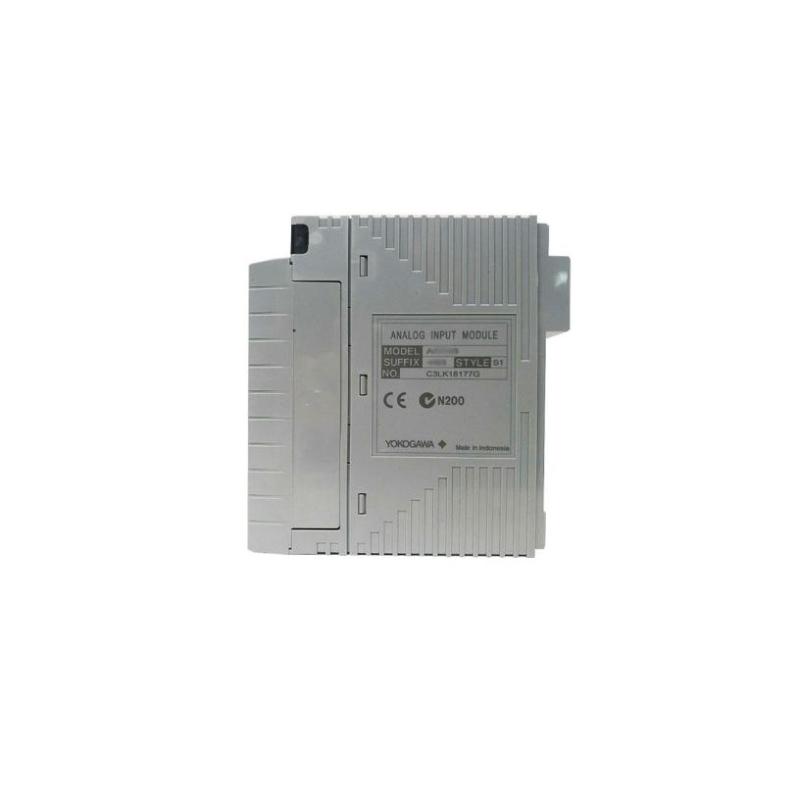

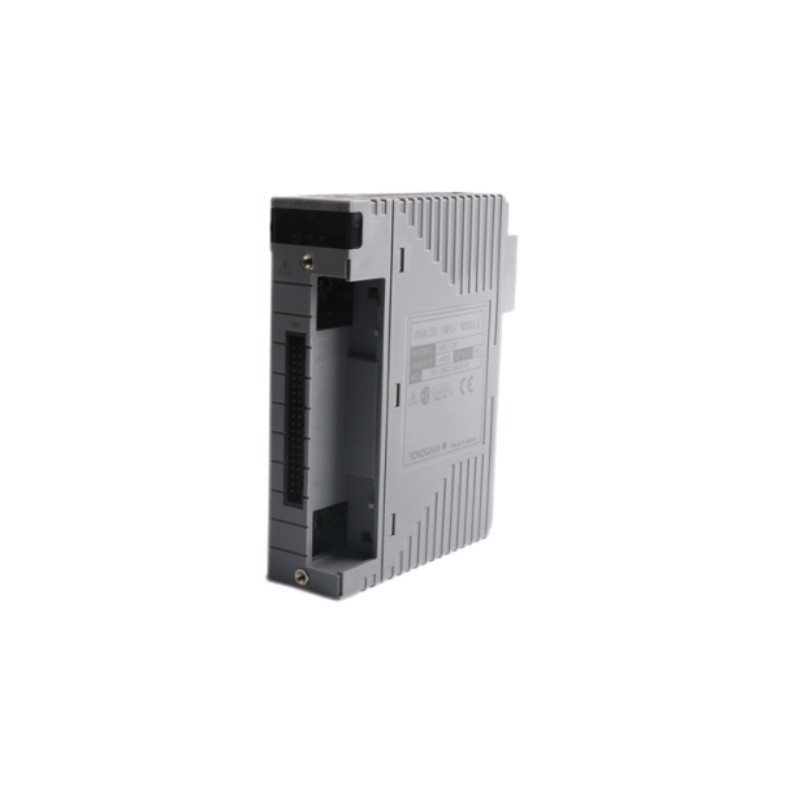

Yokogawa AAI135 Analog Input Module Thoughtful service Original

Brand：Yokogawa Electric

Item No.：Yokogawa AAI135

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The Yokogawa AAI135 is an isolated analog input module designed for use in process control and DCS systems. It accepts standard transmitter current signals (4-20 mA) and provides channel isolation for high signal integrity.

General Information

Model / Type: AAI135 (8-channel version)

Manufacturer: Yokogawa

Country of Origin: Japan

Product Category: Analog Input Module – 4-20 mA, isolated channels

Applications: Process automation, DCS I/O racks, redundant I/O configurations

Electrical & Functional Specifications

Number of Input Channels: 8 isolated channels

Input Signal: 4 to 20 mA DC

Input Resistance (Power ON): ~270 Ω at 20 mA, ~350 Ω at 4 mA

Input Resistance (Power OFF): ≥ 500 kΩ

Accuracy: ± 16 µA

Data Update Period: ~10 ms

Step Response Time: ~100 ms

Transmitter Power Supply (2-wire type): Minimum ~19.0 V at 20 mA; Maximum ~25.5 V at 0 mA (output current limit ~25 mA)

Drift due to Ambient Temperature Change: ±16 µA per 10 °C

Maximum Current Consumption: ≈310 mA @ 5 V DC; ≈450 mA @ 24 V DC

Withstanding Voltage (Input ↔ System): ~1500 V AC for 1 minute

Environmental & Physical Specifications

Operating Temperature Range: −20 °C to +70 °C (varies by suffix version)

Weight: 0.3 kg

Dimension: 107.5 × 32.8 × 130 mm

Genuine new items, available for instant shipment.

The product information is complete, the delivery cycle is short, and special price services can be supported for bulk orders.
