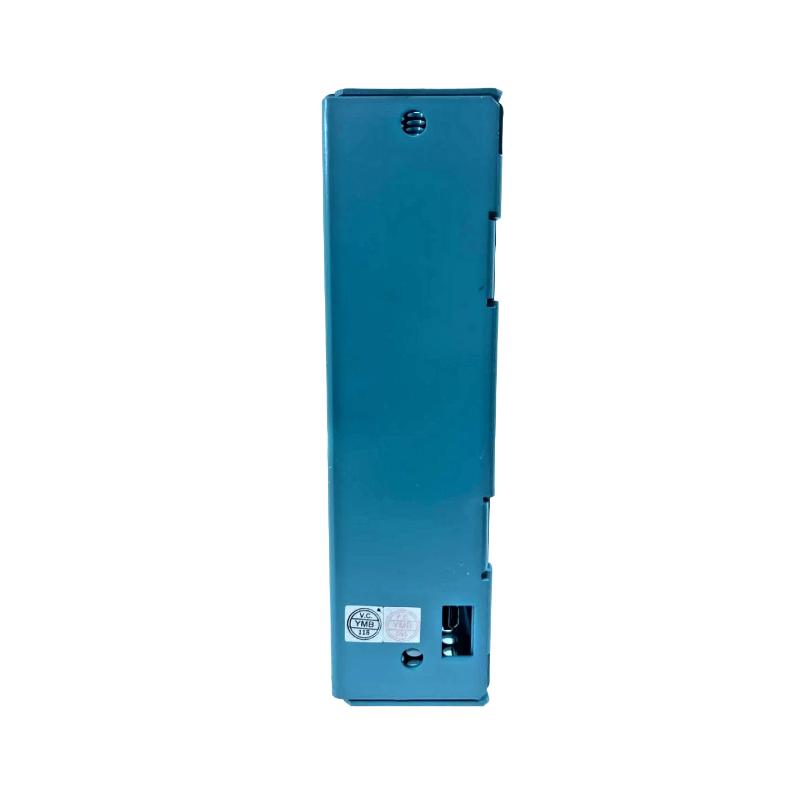

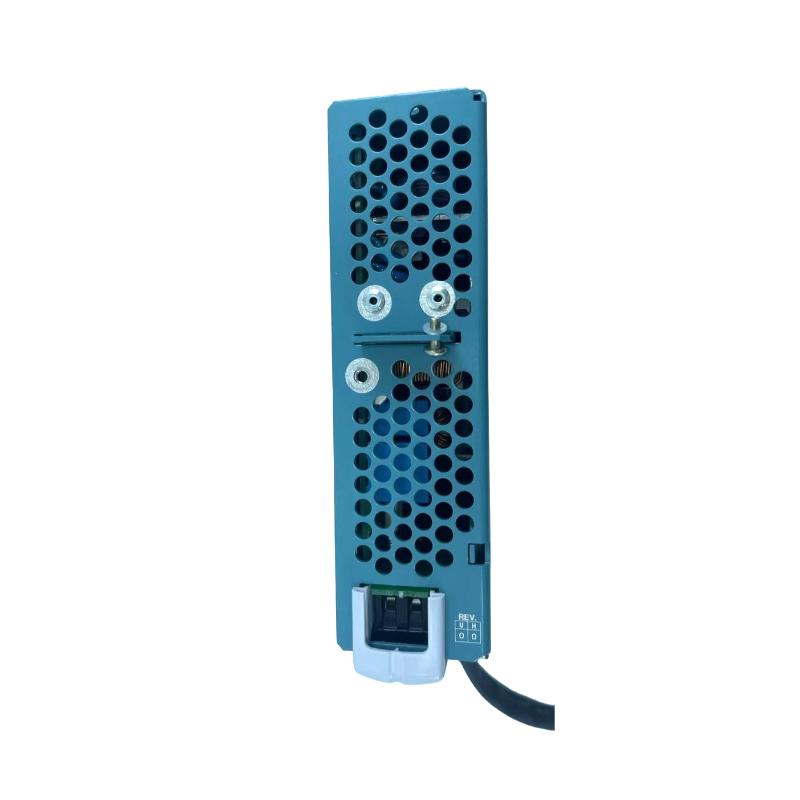

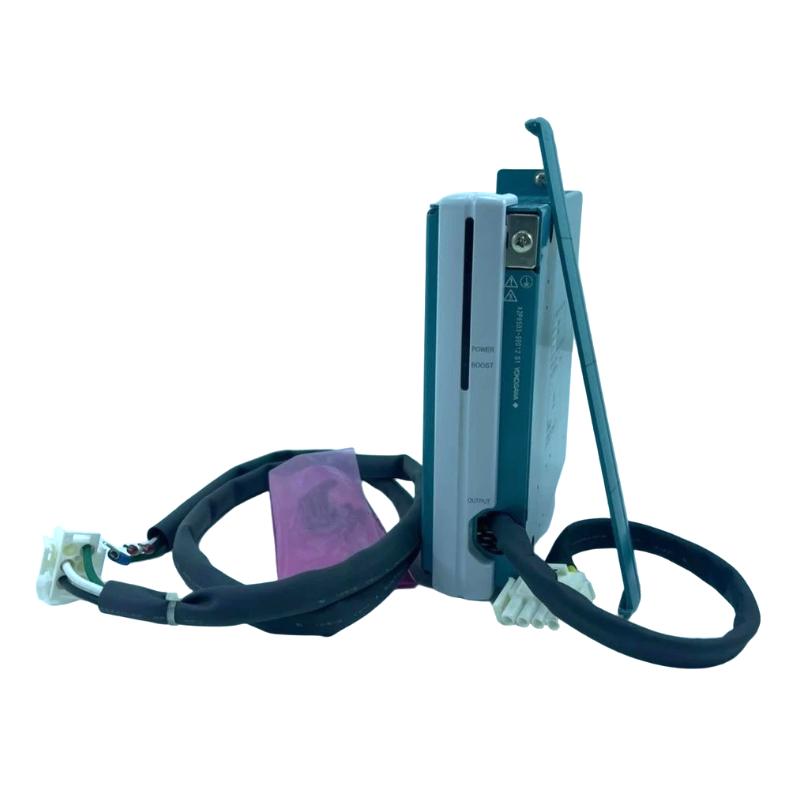

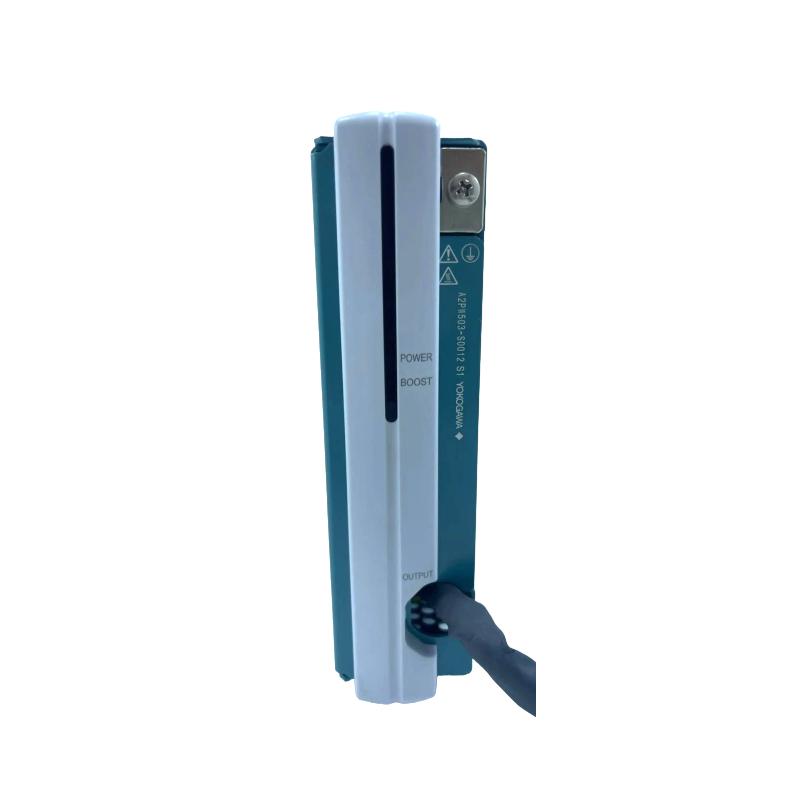

Yokogawa A2PW503-S0002 24 V DC Output Power Supply Unit New In Stock 12-Month Warranty

Brand：Yokogawa Electric

Item No.：Yokogawa A2PW503-S0002

Product origin：Japan

Dimensions:200 × 80 × 250 mm

Weight:1.2 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The A2PW503-S0002 is a 24 V DC output power-supply unit designed for use in Yokogawa’s N-IO system architecture. It supports either single or dual-redundant configurations and is suitable for driving I/O modules, base plates and field devices in control systems.

General Information

Part Number: A2PW503-S0002

Model Type: A2PW503

Manufacturer: Yokogawa Electric Corporation

Country of Origin: Japan

Product Category: 24 V DC Output Power Supply Unit (external power supply for N-IO)

Intended Use: For system power supply to I/O modules and field units in Yokogawa N-IO installations.

Electrical & Functional Specifications

Input Voltage (AC version): 100 to 240 V AC, 50/60 Hz

Input Voltage (DC version): 24 V DC

Input Voltage Tolerance: AC: 85 to 264 V AC; DC: 20.4 to 28.8 V DC

Rated Output Voltage: 24 V DC (+4% / -6%)

Rated Output Current: 5 A

Efficiency (typical): ~90%

Maximum Input Power Consumption: ~165 VA (AC input version)

Withstanding Voltage (Input ↔ Output): 3000 V AC for 1 minute (AC version)

Withstanding Voltage (Input ↔ Ground): 1500 V AC for 1 minute (AC version)

Insulation Resistance (Input ↔ Output): ≥50 MΩ at 500 V DC

Output Hold-Up Time (AC version): ~90 ms (at rated output)

Redundant Output Support: Supports dual-redundant configuration with output balance for increased reliability.

Environmental & Physical Specifications

Operating Temperature Range: 0 °C to +60 °C (standard)

Extended Temperature Option: -40 °C to +70 °C (optional)

Storage Temperature Range: -40 °C to +85 °C

Humidity (Operating & Storage): 5 % to 95 % RH (non-condensing)

Mounting: DIN-rail mounting (TH35-7.5 rail)

Weight: 1.2 kg

Dimensions: 200 × 80 × 250 mm
