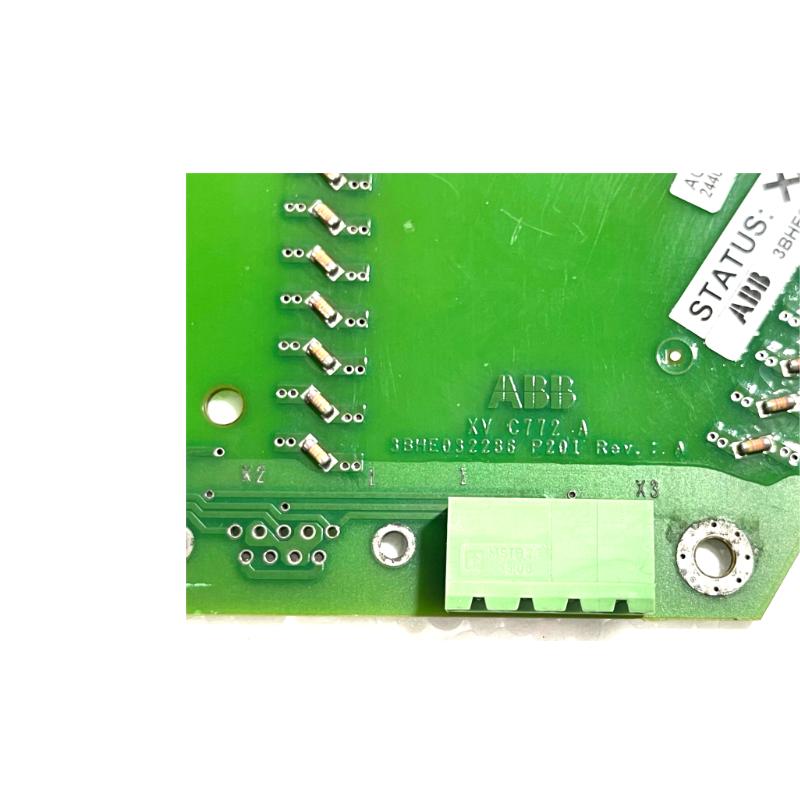

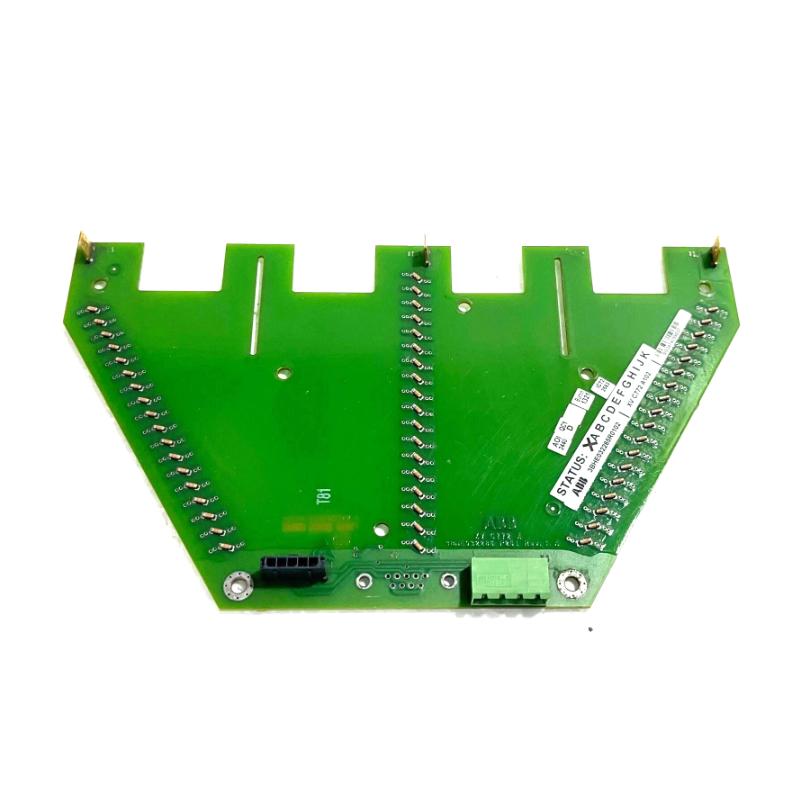

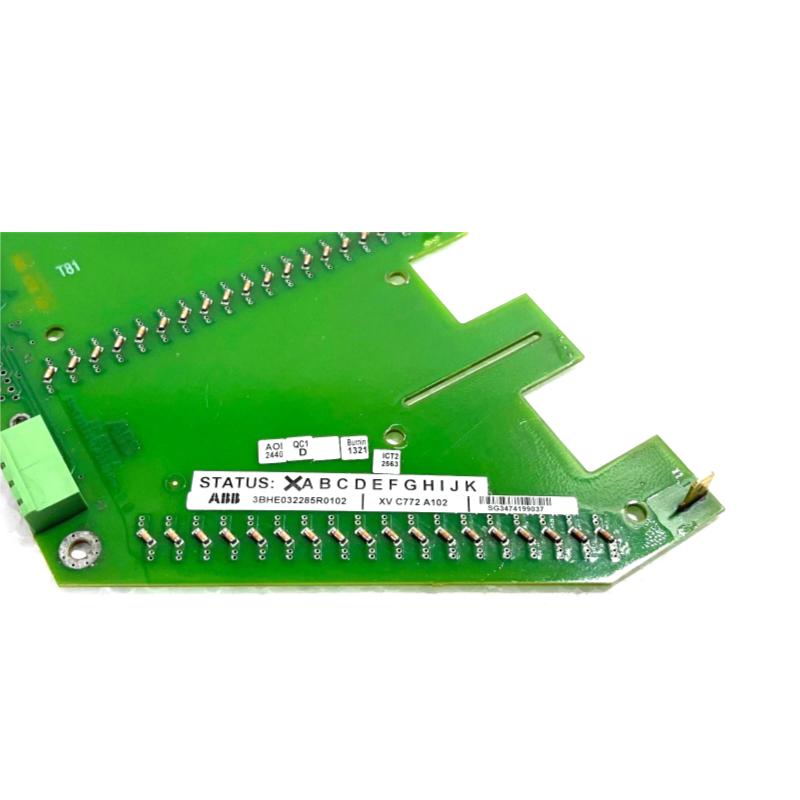

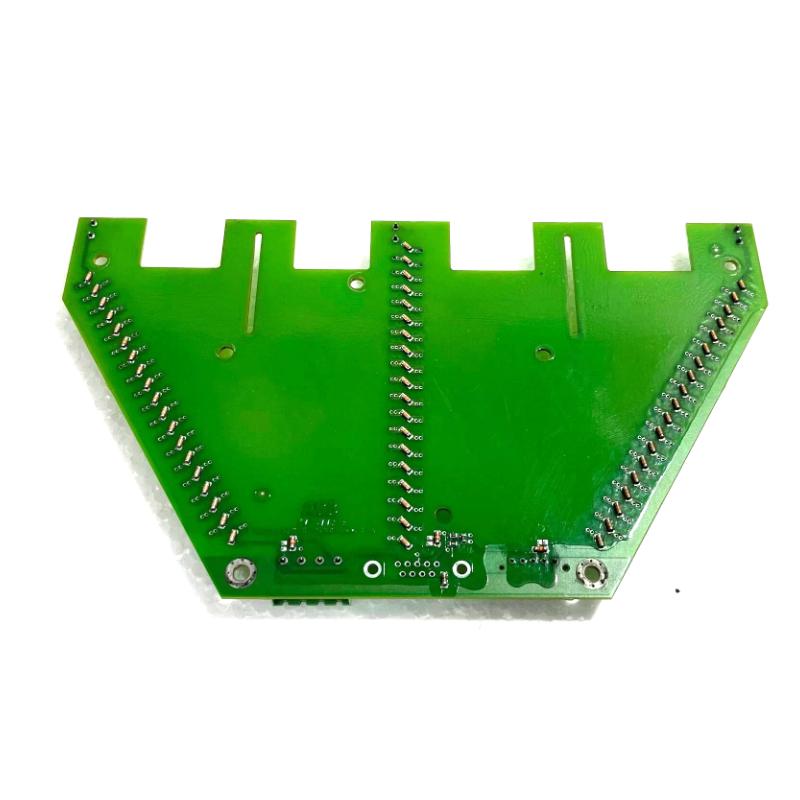

ABB XVC772A102 3BHE032285R0102 High-Voltage Voltage Divider Trusted supplier

Brand：ABB PLC

Item No.：ABB XVC772A102 3BHE032285R0102

Product origin：Sweden

Dimensions:300 × 200 × 100 mm

Weight:0.2 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The ABB XVC772A102 (3BHE032285R0102) is a High Voltage Detection (HVD) or voltage divider board used in ABB’s industrial automation and medium-voltage drive systems. It performs precise voltage measurement, isolation, and signal conditioning functions to ensure stable and accurate performance in control and protection applications.

General Information

Part Number: 3BHE032285R0102

Model Type: XVC772A102

Manufacturer: ABB

Country of Origin: Sweden

Product Category: HVD / Signal Isolator Board

Application: Medium-voltage drives and control systems

Electrical & Functional Specifications

Input Voltage Range: 0–800 kV (high-voltage measurement range)

Isolation Voltage: 2,500 V AC

Power Supply: 24 V DC (typical for ABB control boards)

Power Consumption: ≤ 3 W

Accuracy: ±0.5%

Function: Voltage division, detection, and signal isolation

Signal Processing: Integrated digital filtering and diagnostic capability

Reset Support: Hardware and software reset via system controller

Environmental Conditions

Operating Temperature: −40 °C to +70 °C

Storage Temperature: −40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation within control cabinet)

Physical Specifications

Dimensions): 300 × 200 × 100 mm

Weight: Approx. 0.2 kg
