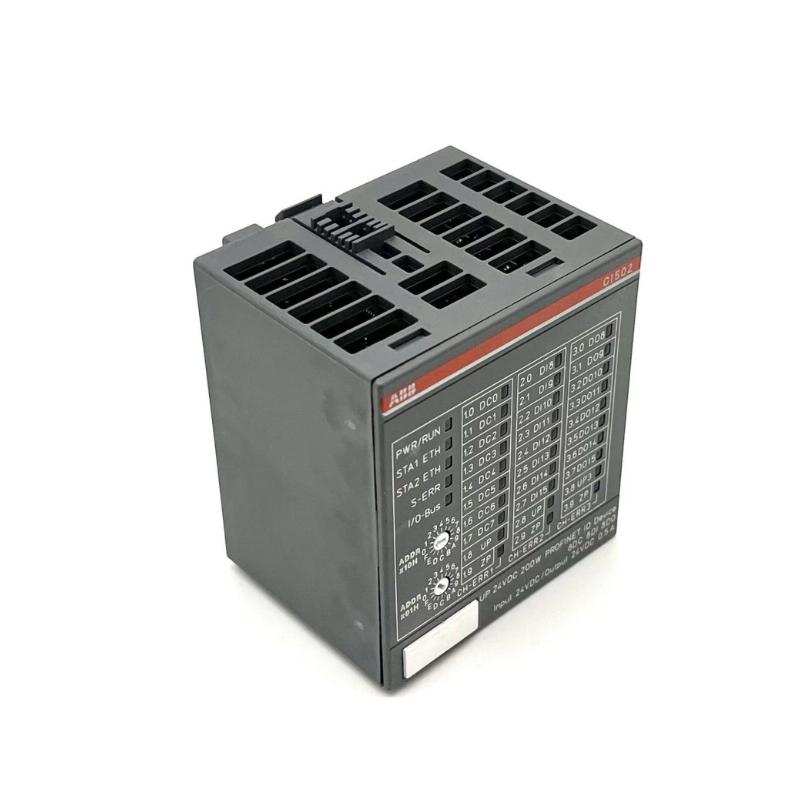

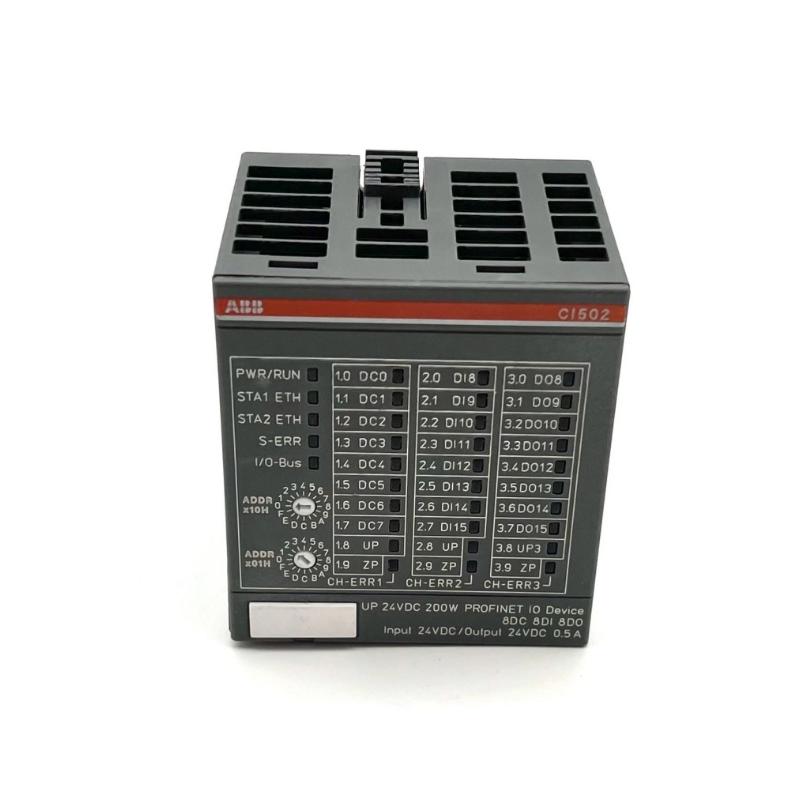

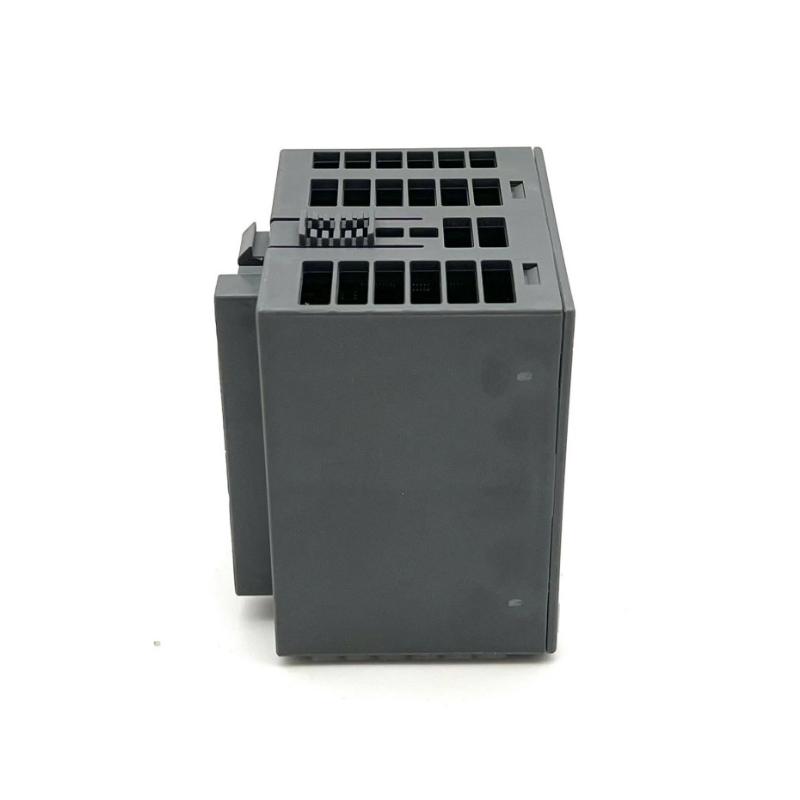

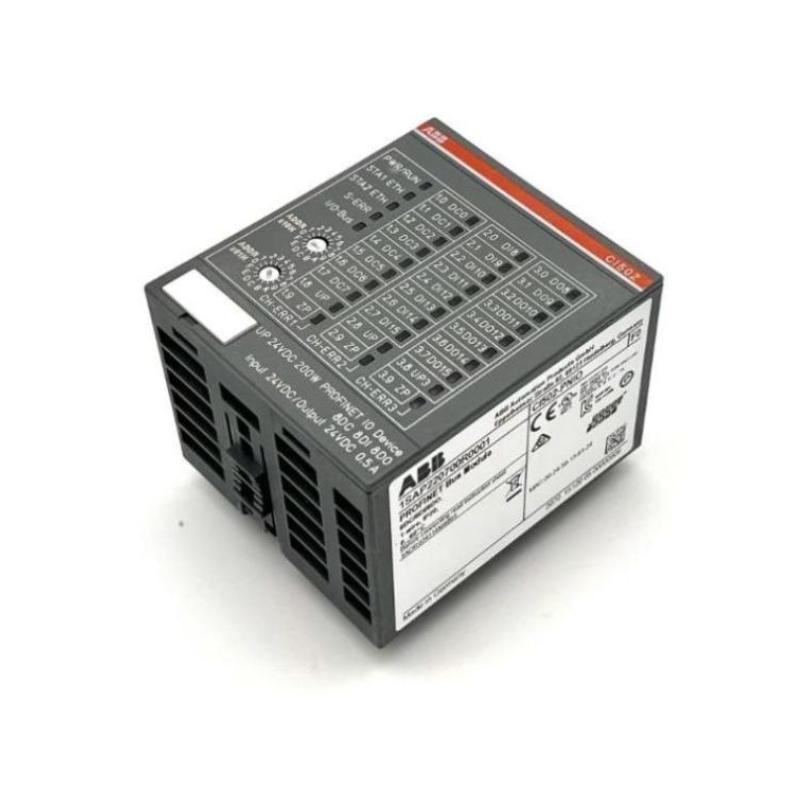

ABB CI502 1SAP220700R0001 Communication Module Original

Brand：ABB PLC

Item No.：ABB CI502 1SAP220700R0001

Product origin：Sweden

Dimensions:180 × 120 × 60 mm

Weight:0.75 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product Introduction：

Overview

The ABB CI502 is a control interface / communication gateway module used in ABB control and automation systems. It facilitates communication between field devices, networks, and higher-level controllers, supporting protocol conversion and data bridging.

General Information

Part Number: 1SAP220700R0001 (CI502)

Manufacturer: ABB

Series: CI (Communication Interface)

Type: Control Interface / Communication Module

Mounting: Racking or chassis-based mounting

Technology: Ethernet and serial interfaces, protocol bridging and diagnostics

Power Specifications

Input Voltage: 24 V DC

Power Consumption: Approx. 3–5 W

Protection: Surge suppression and reverse-polarity protection on power input

Indicators: LEDs for power, network link, activity, fault status

Communication & Interface

Ethernet Ports: Dual RJ-45 10/100 Mbps for network connectivity

Serial Ports: RS-232 / RS-485 ports for legacy device connections

Microprocessor: Embedded CPU for protocol handling and diagnostics

LAN Management: Supports network health monitoring, port redundancy, and loop detection

Operator Interface: Status LEDs; local port for diagnostics

Reset Features: Hardware reset via button or system reset via software

I/O & Channels

Relay / Digital Channels: None — strictly a communication module

External Load Support: Not applicable (data communications only)

Environmental

Operating Temperature: –20 °C to +60 °C

Storage Temperature: –40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Class: IP20

Dimensions

Size (L × W × H): 180 × 120 × 60 mm

Weight: ~0.75 kg

The product information is complete, the quotation structure is reasonable, the outbound response is fast, and bargaining communication is welcome for large quantities.
