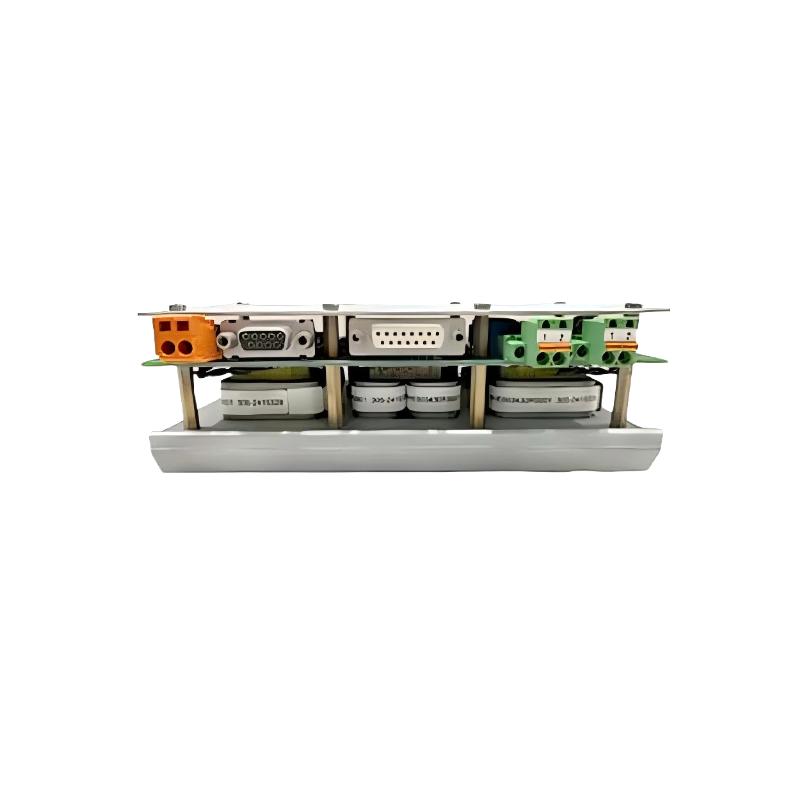

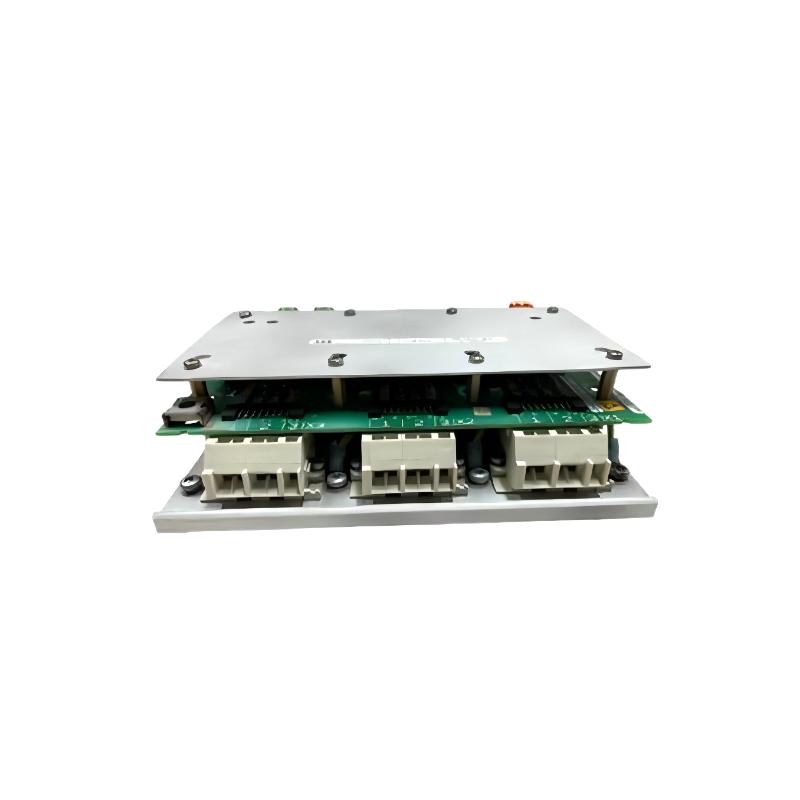

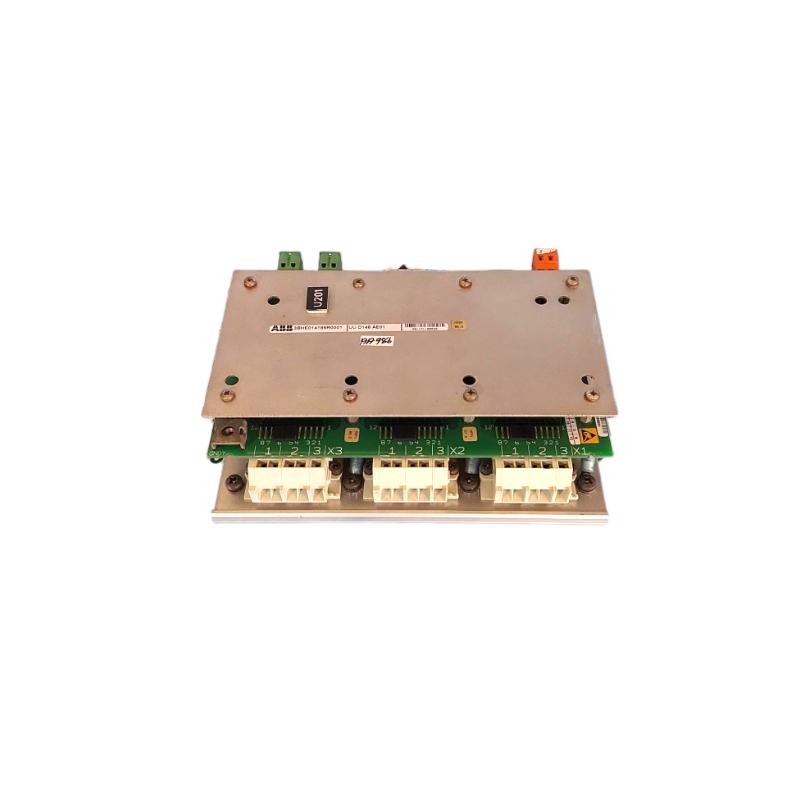

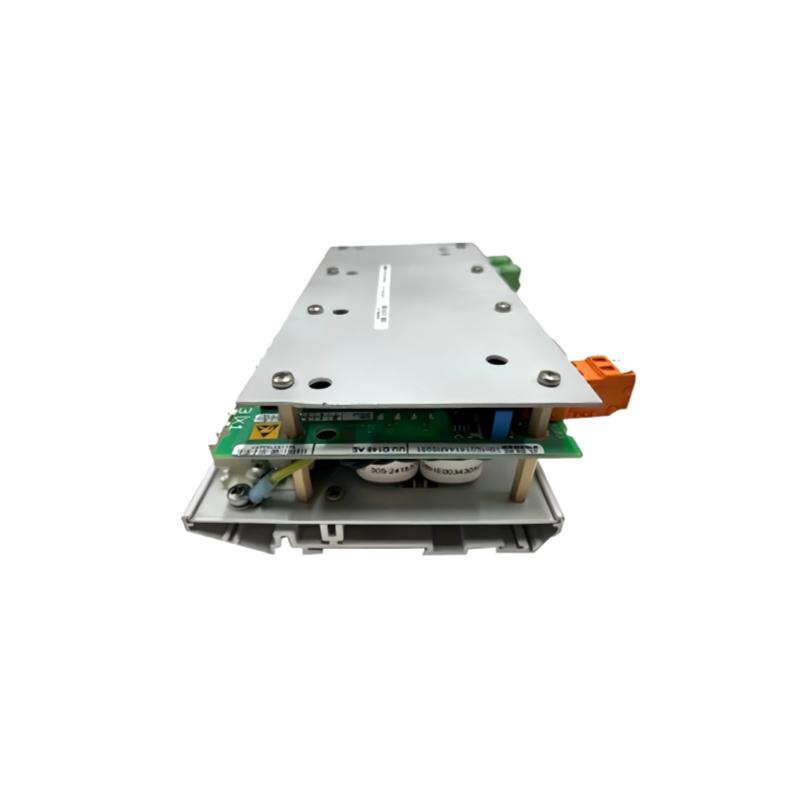

ABB UU D148 AE01 3BHE014185R0001 Voltage Sensor Control Board 100% New

Brand：ABB PLC

Item No.：ABB UU D148 AE01 3BHE014185R0001

Product origin：Sweden

Dimensions:234 × 27 × 112.5 mm

Weight:1.44 kg

The import process is standardized, testing is supported, and after-sales service is guaranteed

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The ABB UU D148 AE01 (3BHE014185R0001) is a voltage transducer control board designed for precise voltage measurement and conversion in industrial applications, particularly within ABB's PCS6000 series systems.

General Information

Part Number: 3BHE014185R0001

Manufacturer: ABB

Type: Voltage Transducer Control Board

Country of Origin: Sweden

Weight: Approximately 1.44 kg

Electrical Specifications

Input Voltage Range: 0–10 V, 0–20 mA

Resolution: 12-bit, 16-bit

Accuracy: ±0.1%, ±0.5%

Sampling Rate: 1000 samples/sec

Power Supply: 24 V DC ±10%

Power Consumption: Maximum 3 W

Signal Filtering: Digital filtering for EMI suppression

Environmental Conditions

Operating Temperature: −25°C to +70°C

Storage Temperature: −40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet

Dimensions & Weight

Dimension: 234 × 27 × 112.5 mm

Weight: ~1.44 kg

This product is in stock, with fast response, flexible price range, and supports communication based on quantity.
