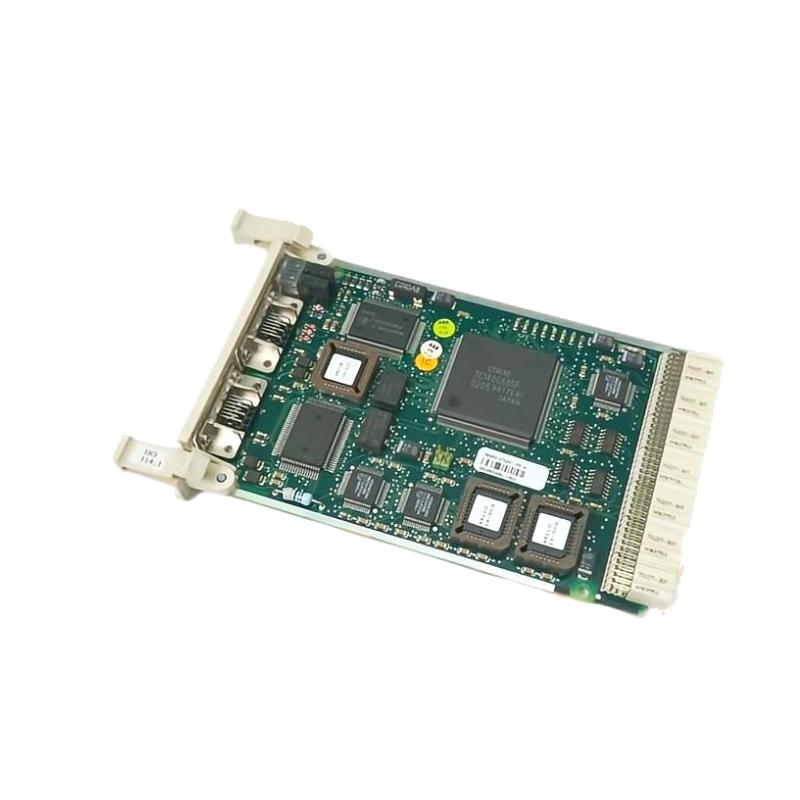

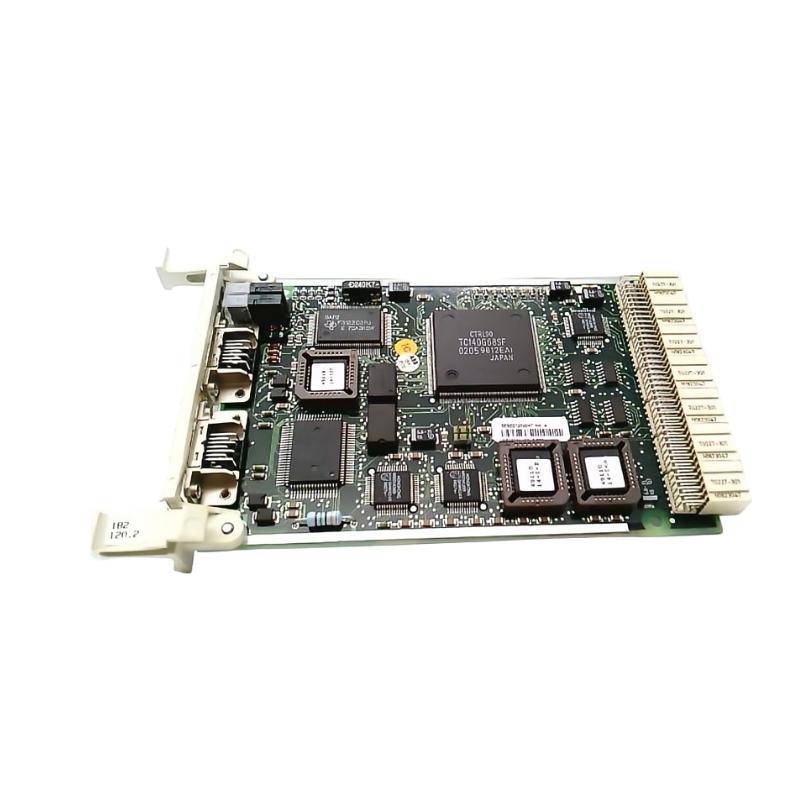

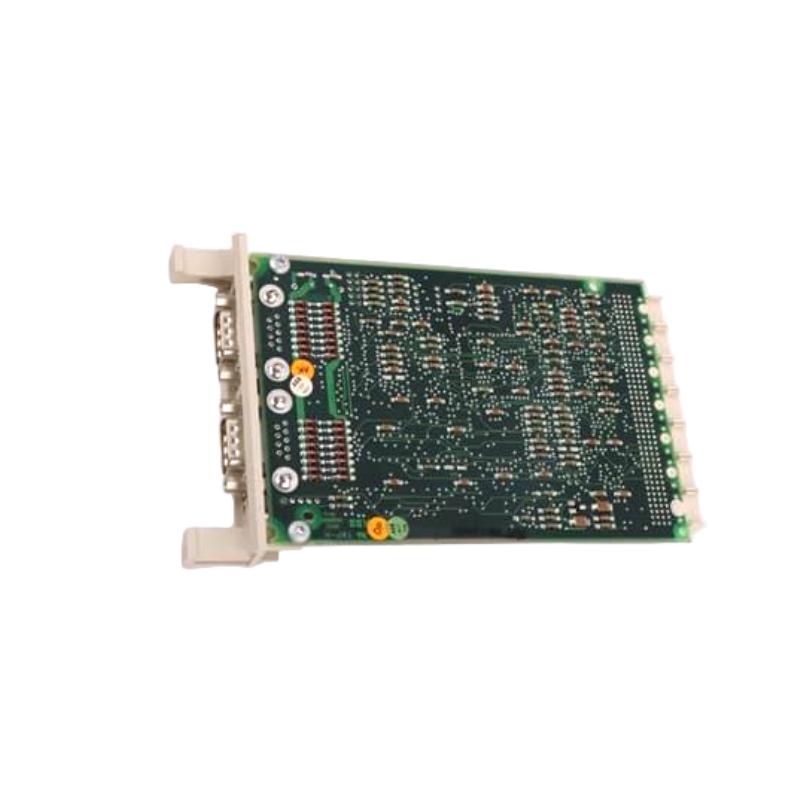

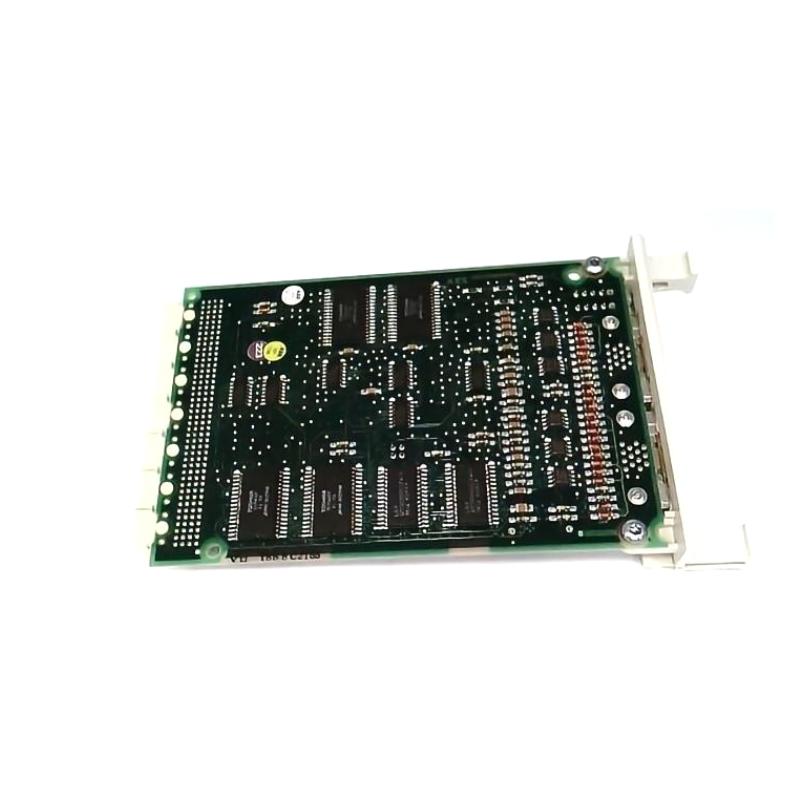

ABB CI522 3BSE012790R1 Bus Coupler / Interface Module Fast Shipping!

Brand：ABB PLC

Item No.：ABB CI522 3BSE012790R1

Product origin：Sweden

Dimensions:234 × 27 × 112.5 mm

Weight:0.3kg

Original imported channel supply, support for testing instructions, worry-free after-sales

Ten thousand models in stock, quick matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The ABB CI522 is a communication interface (bus coupler) module used in ABB’s Advant / Master / OCS systems. It functions as a high-speed link between the control bus and PROFIBUS or field devices, supporting protocol translation and network connectivity.

General Information

Part Number: 3BSE012790R1

Manufacturer: ABB

Series: CI (Communication Interface)

Type: Bus Coupler / Interface Module

Mounting: Card or rack installation within control chassis

Technology: Ethernet / fieldbus interface, redundancy support, diagnostic logic

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from the controller backplane

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, communication link, fault

Communication & Interface

Ethernet / Fieldbus Port: PROFIBUS DP interface

Bus Coupler Role: Connects the controller’s bus system to field networks

Diagnostics: Link supervision, fault detection, status reporting

Operator Interface: LED indicators, configuration switches

Reset Features: Supports soft and hardware reset

I/O & Channels

Relay Channels: None

External Load Support: None (module used for signal routing, not driving loads)

Environmental

Operating Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions

Size (L × W × H): 234 × 27 × 112.5 mm

Weight: ~ 0.3 kg
