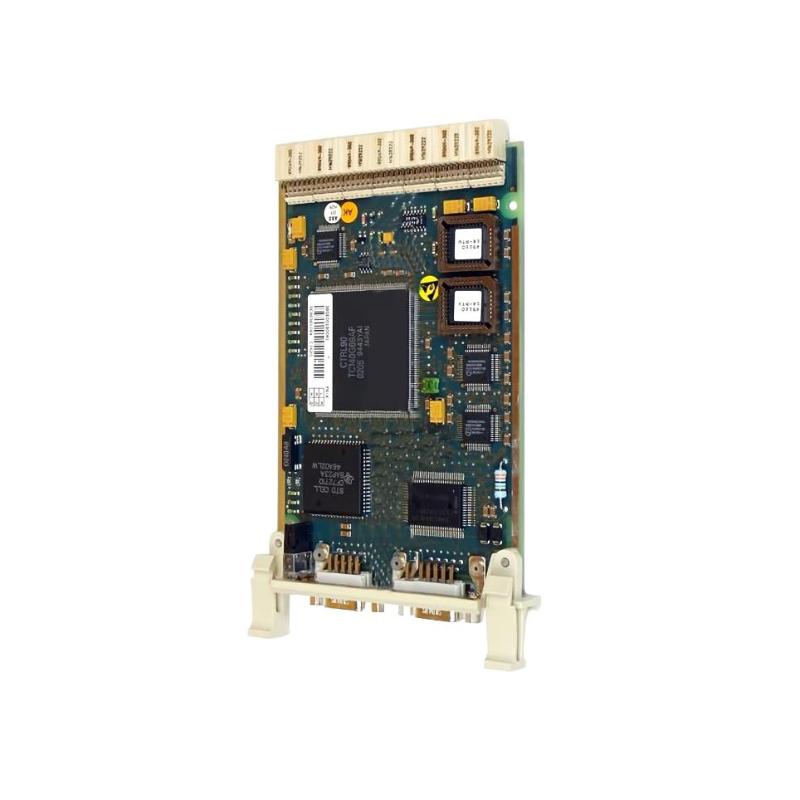

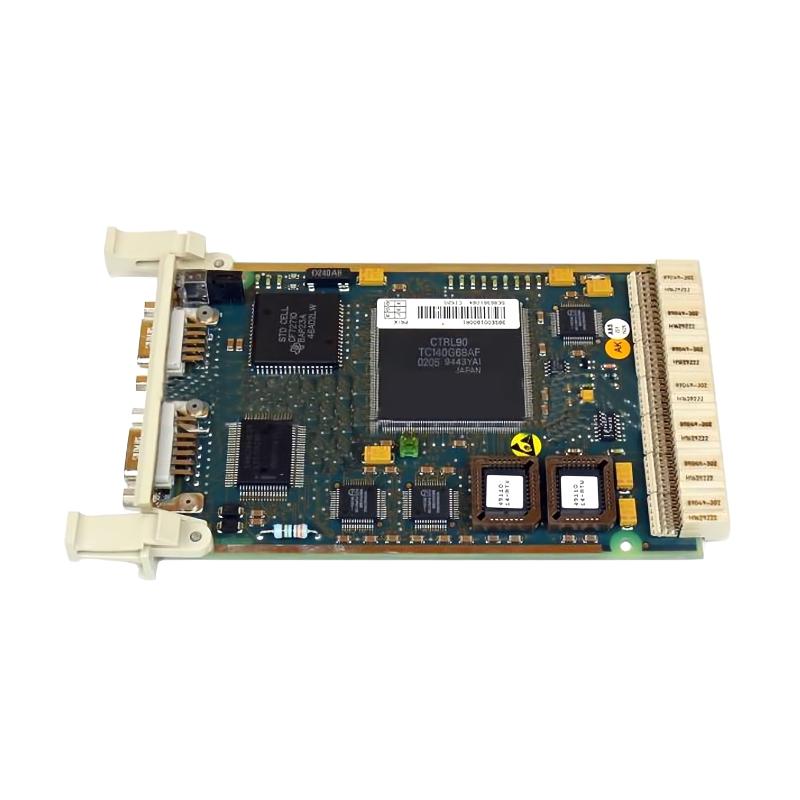

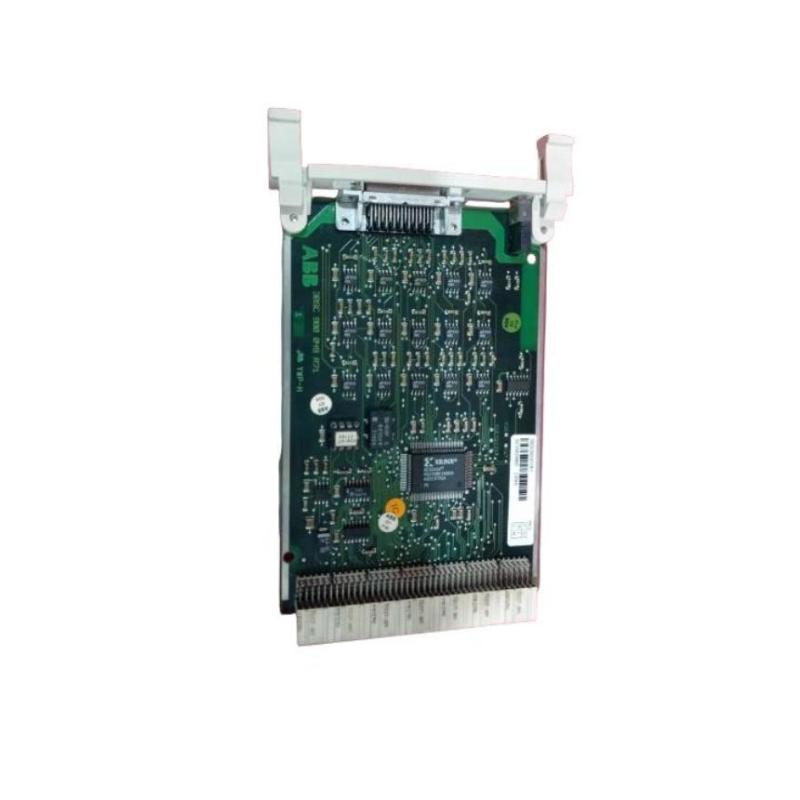

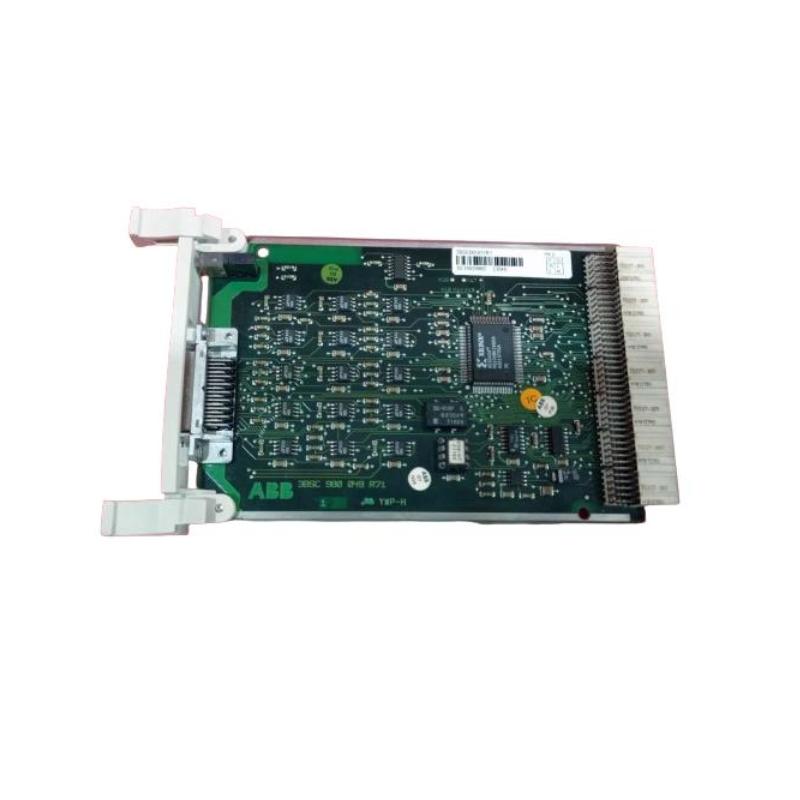

ABB CI520 3BSE001800R1 Communication Interface / Fieldbus Module 30-Day Returns！

Brand：ABB PLC

Item No.：ABB,CI520,3BSE001800R1

Product origin：Sweden

Dimensions:234 × 13.5 × 112.5 mm

Weight:0.15 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The ABB CI520 (3BSE001800R1) is a high-performance communication interface module for the Advant Control System (AF100 / Controller 400 Series). It serves as a bus master, supporting data routing, protocol conversion, and network integration in distributed control environments.

General Information

Part Number: 3BSE001800R1

Manufacturer: ABB

Series: CI / Advant Interface Modules

Type: Communication Interface / Fieldbus Module

Mounting: Plug-in card within Advant Controller rack or submodule carrier

Technology: Ethernet/serial / fieldbus interface with data bridging, diagnostics, and bus administration

Power Specifications

Supply Voltage: 24 V DC and 5 V logic rail

Power Consumption: ~3.7 W (5 V) plus 2 × 2.5 W (24 V)

Input: 24 V DC from rack backplane

Outputs: 24 V DC supply to interface ports (max ~60 mA)

Protection: Over-current and voltage protection on 24 V rails

Indicators: “R” (Run), “F” (Fault) LEDs on front panel

Communication & Interface

Ethernet / Fieldbus: Supports high-speed serial communications; serves as bus master on Advant Fieldbus 100

Ports / Connectors: Two RS-485 interface ports (X8, X1 and X9, X2) using D-sub 9 connector style

Microprocessor / Logic: Embedded CPU for managing protocol stack, diagnostics, message routing

LAN Management: Path redundancy, link supervision, bus administration roles

Operator Interface: LEDs, switch settings for node addressing

Reset Features: Soft reset via controller logic or hardware reset

I/O & Channels

Bus Connections: X8 and X9 bus cables, supports ~4000 CDPs (Control Data Points)

Node Roles: Can act as bus master, slave, or repeater in network topology

Load / Driving Capabilities: Drives RS-485 lines, 60 mA output capability

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: –40 °C to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration / Shock: Rated for industrial environment levels

Dimensions

Size (L × W × H): 234 × 13.5 × 112.5 mm

Weight: 0.15 kg

The inventory of the product is stable, the delivery response is fast, the unit price is reasonable, and large orders are supported for negotiation discounts.
