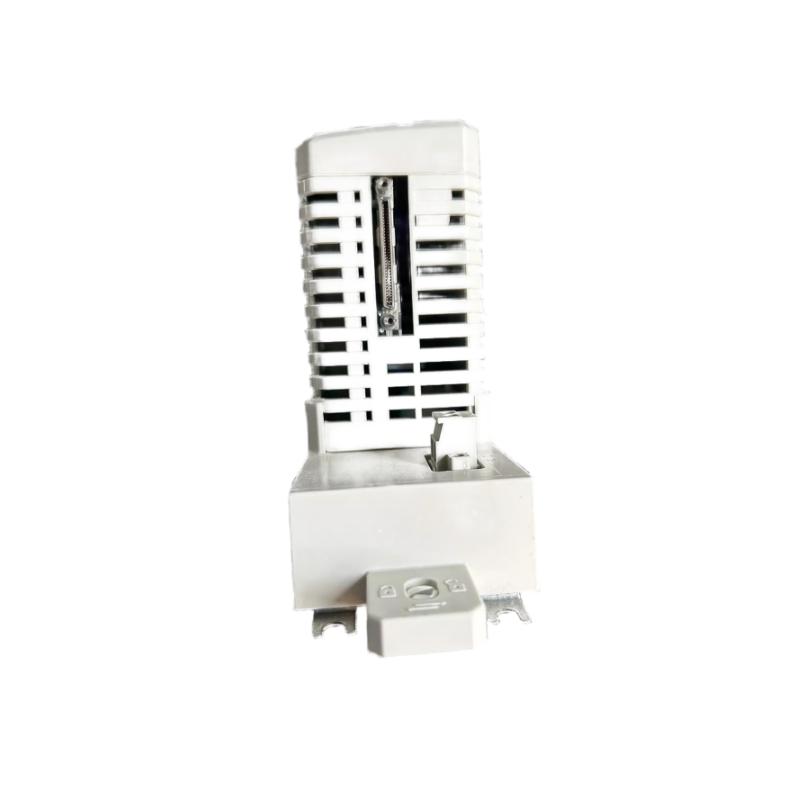

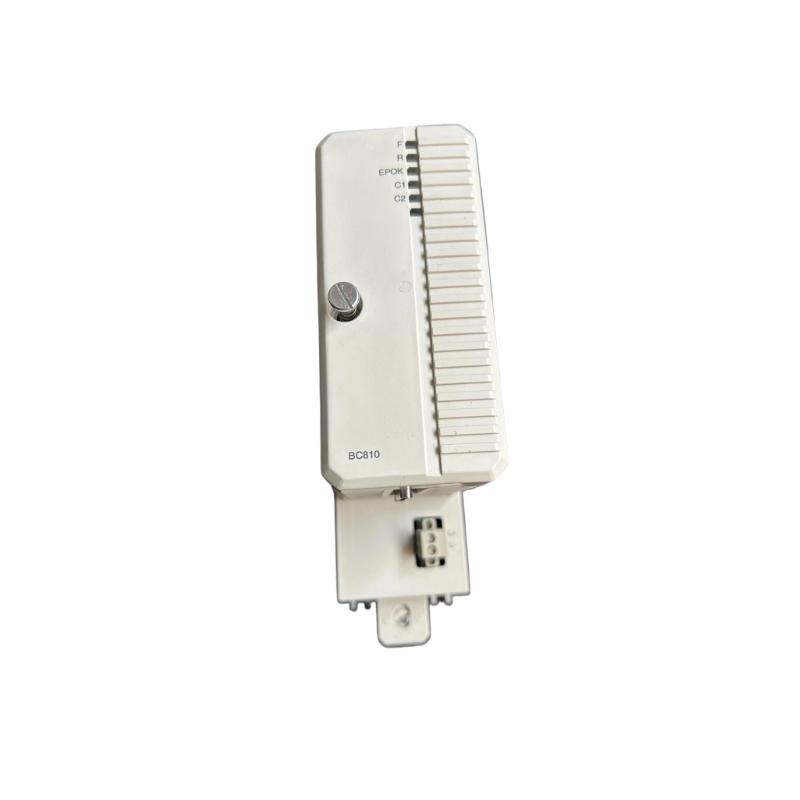

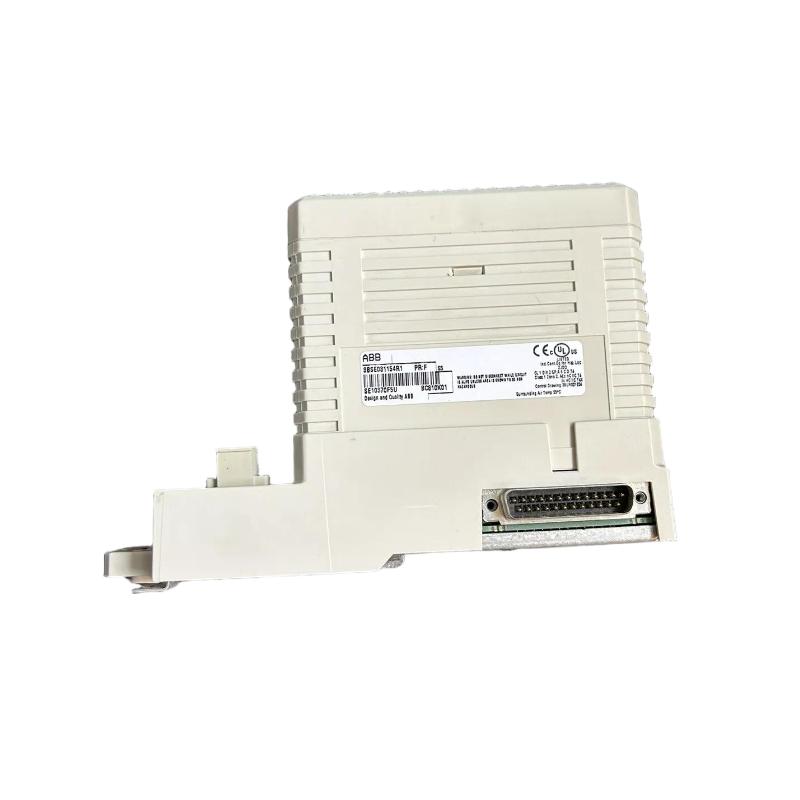

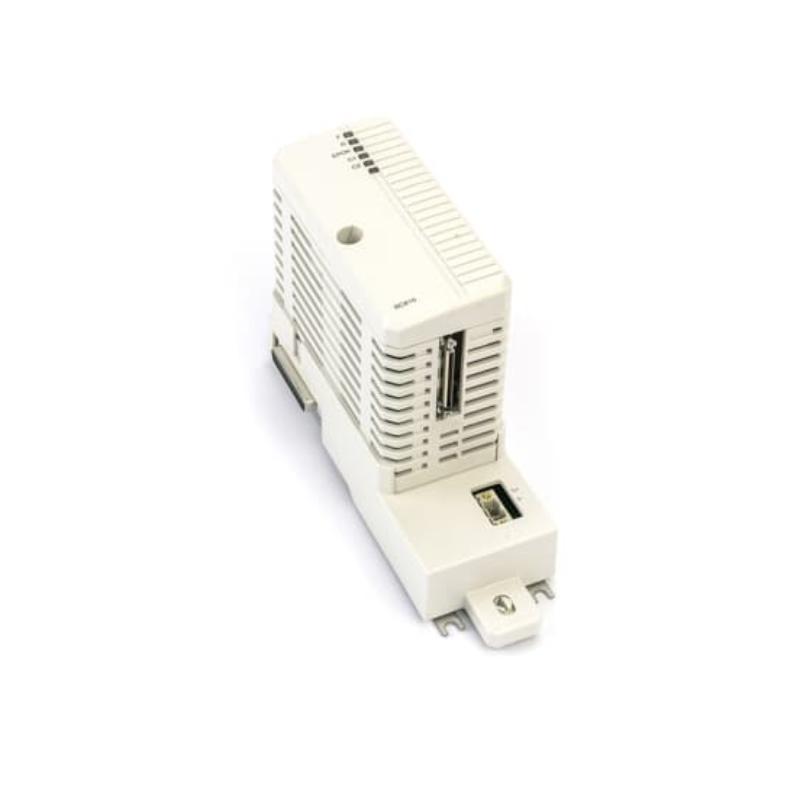

ABB BC810 3BSE031154R1 Battery Charger Module Original

Brand：ABB PLC

Item No.：BC810 3BSE031154R1

Product origin：Sweden

Dimensions:265 × 210 × 75 mm

Weight:2.8 kg

Formal channels, complete testing instructions, and responsive services

Large stock, diverse series, and adaptable to different working conditions, welcome to consult!

Product Introduction：

Overview

The ABB BC810 is a battery charger module designed for use in ABB control systems, commonly deployed to provide reliable DC backup power in safety and control applications.

General Information

Part Number: 3BSE031154R1

Manufacturer: ABB

Series: BC (Battery Charger)

Type: Battery Charger Module

Mounting: Rack or cabinet installation

Technology: Solid-state charger with DC regulation and fault detection

Power Specifications

Input Voltage: 115/230 V AC (auto-sensing)

Output Voltage: 24 V DC for battery charging

Charge Current: Up to 10 A

Protection: Overcurrent, overvoltage, reverse polarity protection

Indicators: LEDs for power, charging, fault

Communication & Interface

Communication: Digital interface to control system for status and alarm reporting

Operator Interface: Local indicators and possibly remote monitor via control network

Reset Features: Reset via front panel or system command

I/O & Channels

Battery Monitoring: Includes sensing of battery voltage and temperature

Load Support: Power for control devices during AC outage

Environmental

Operating Temperature: 0 °C to +55 °C

Humidity: 5% to 95% RH, non-condensing

Dimensions

Size (L × W × H): 265 × 210 × 75 mm

Weight: 2.8 kg

This product is suitable for many types of applications, fast delivery, and bulk purchases support more cost-effective quotation methods.
