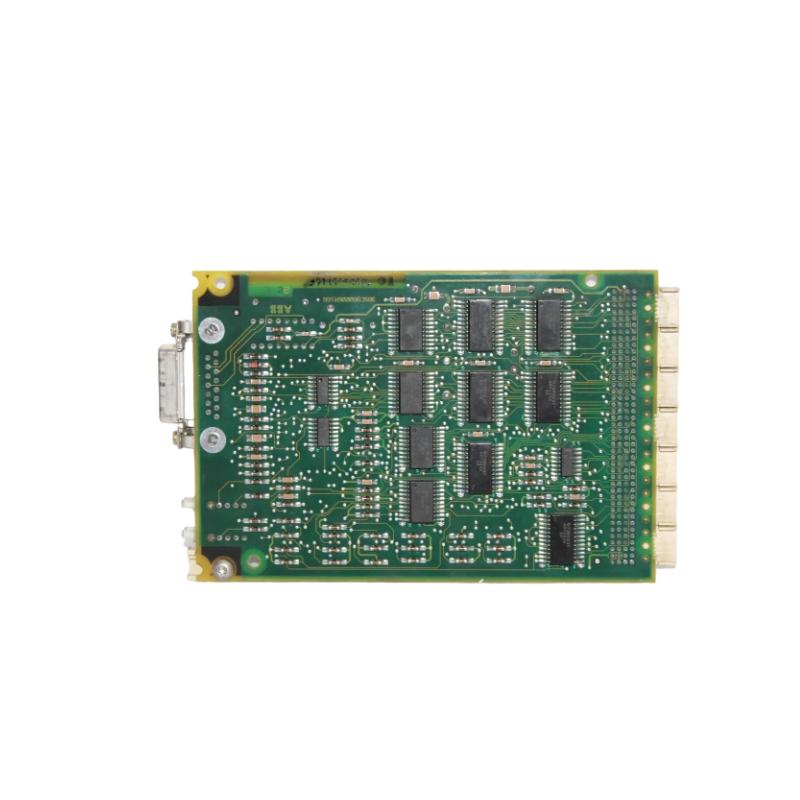

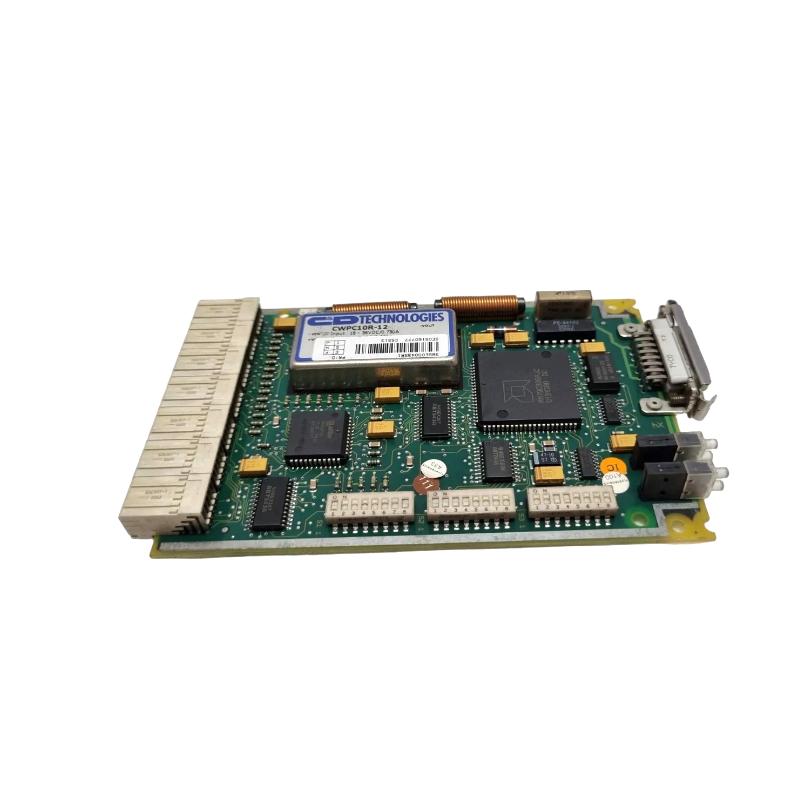

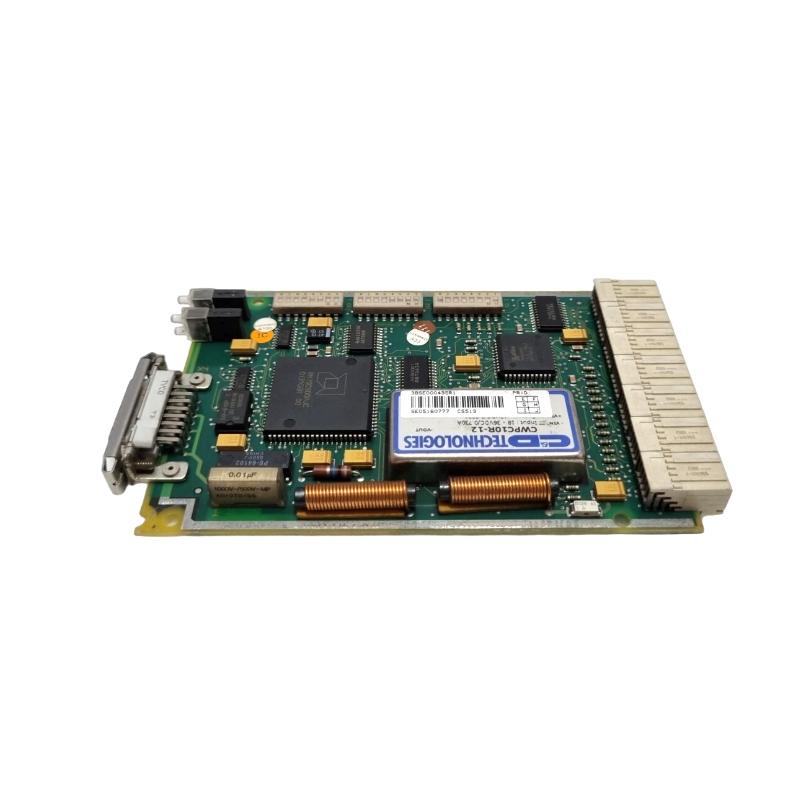

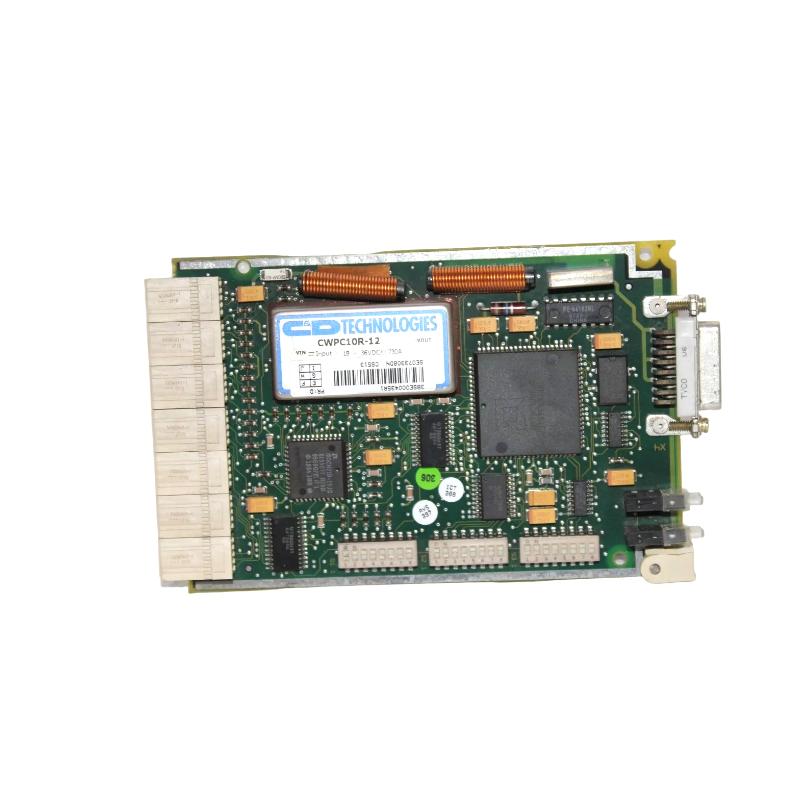

ABB CI513 3BSE000435R1 LAN Module Unbelievable Prices!

Brand：ABB PLC

Item No.：ABB CI513 3BSE000435R1

Product origin：Sweden

Dimensions:234 × 108 × 18 mm

Weight:0.20kg

Standardized import process, support for testing, guaranteed after-sales

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product Introduction：

Overview

CI513 is an IEEE 802.3 LAN communication module used in ABB’s Advant / MasterBus / control system platforms. It enables Ethernet connectivity and acts as a network interface for system modules.

General Information

Part Number: 3BSE000435R1

Manufacturer: ABB

Model / Type: CS513 LAN Module

Series: Communication Modules / Control & Communication

Mounting: Rack / Card / Backplane installation

Technology: IEEE 802.3 Ethernet interface, switch configuration options

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Minimal; typical module power usage ~1 W

Protection: Surge protection, reverse polarity safeguards

Indicators: LEDs for power, link/activity, fault status

Communication & Interface

Ethernet Port: IEEE 802.3 LAN interface (10/100 Mbps)

Switch Options: Configurable standard or extended (MB300 / MB300E)

Microprocessor: Internal CPU for network protocol handling

LAN Management: Status monitoring, link redundancy, error detection

Operator Interface: LEDs and module switch settings

Reset Features: Soft reset via system commands or hardware reset

I/O & Channels

Relay Channels: None (pure communication module)

External Load Support: Not applicable

Environmental

Operating Temperature: –20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Certification / Compliance: Exempt from RoHS scope under certain articles

Protection Class: Standard industrial enclosure (no special sealing)

Dimensions

Size (L × W × H): 234 × 108 × 18 mm

Weight: 0.2 kg

This product is in stock, with fast response, flexible price range, and supports communication based on quantity.
