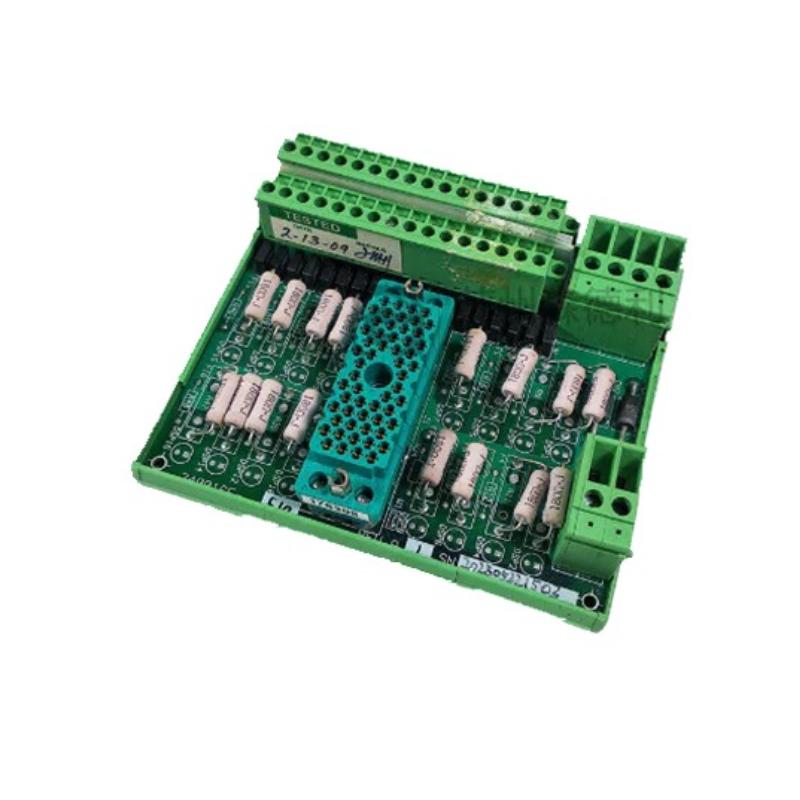

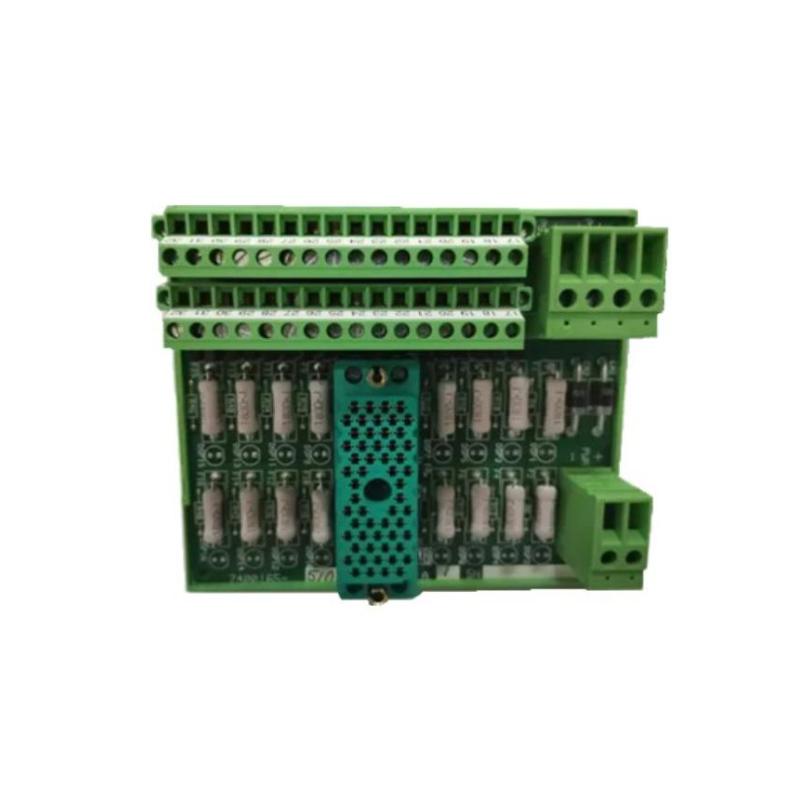

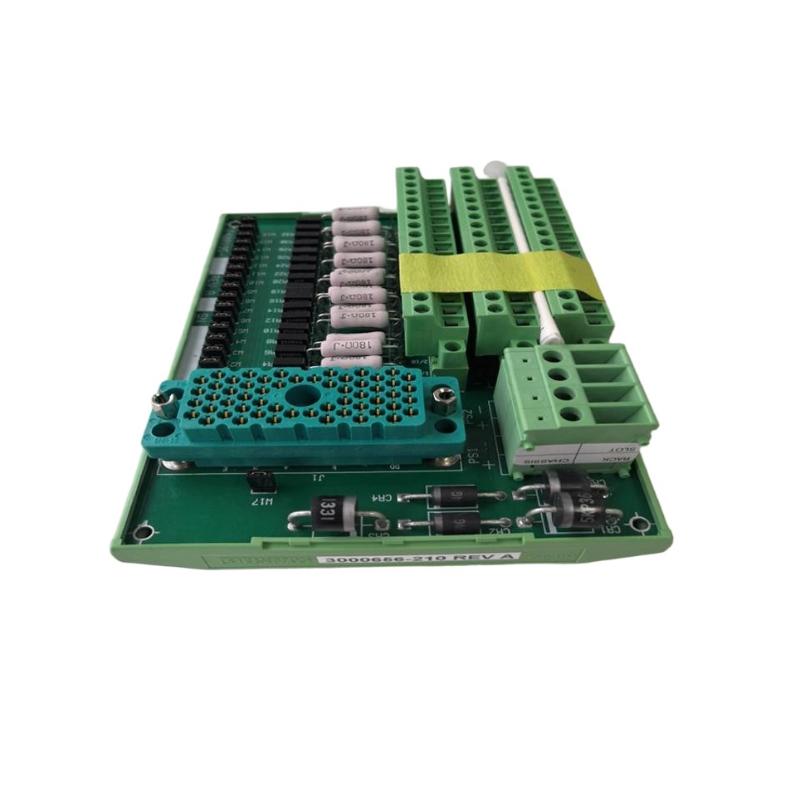

Triconex 3000510-510 erminal panel module Original

Brand：Invensys Triconex

Item No.：Triconex 3000510-510

Product origin：USA

Dimensions:140 × 80 × 30 mm

Weight:0.5 kg

Formal channels, complete test instructions, and responsive services

Ten thousand models in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The Triconex 3000510-510 is a terminal panel module / external termination assembly used in Tricon safety systems. It provides field wiring connection points and reliable interfaces for sensors, actuators, or other I/O devices, supporting high integrity in industrial control environments.

General Information

Part Number: 3000510-510

Manufacturer: Triconex (Schneider Electric)

Series: Tricon Modular / Safety Instrumented System (SIS)

Type: External Termination / Terminal Panel Module

Mounting: External panel or cabinet, intended for field terminations

Technology: Passive terminal interface with fused or protected points

Power Specifications

Power Supply: 24 V DC supply for I/O circuits

Power Consumption: ~ 2 W

Input: Field wiring from sensors or switches into termination points

Outputs: Routes signals to safety logic or I/O modules

Protection: Individual point protection (fusing or equivalent)

Indicators: Some per-point indicators for status or fused point failure

Communication & Interface

Ethernet Port: None

Microprocessor: None

LAN Management: Not applicable

Operator Interface: Terminals + status indicators (LED / fused point indicators)

Reset Features: Manual reset via replacing fuse or cleared indicator

I/O & Channels

Digital I/O Points: 16 channels

Analog I/O Points: None (module focused on digital points)

Input Impedance: approx. 250 Ω

Output Impedance: approx. 250 Ω

Max Loop Voltage: 30 V

Max Loop Current: 1 A

Environmental

Operating Temperature: -40 °C to +70 °C

Humidity: 0% to 95% RH, non-condensing

Protection Rating: IP66

Dimensions

Size (L × W × H): 140 × 80 × 30 mm

Weight: ~ 0.5 kg
