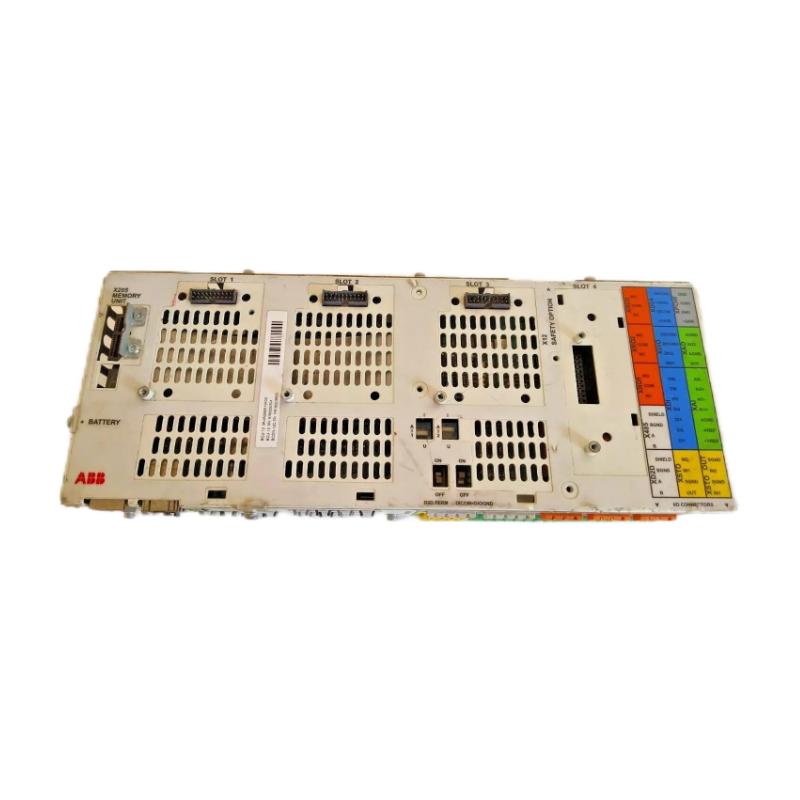

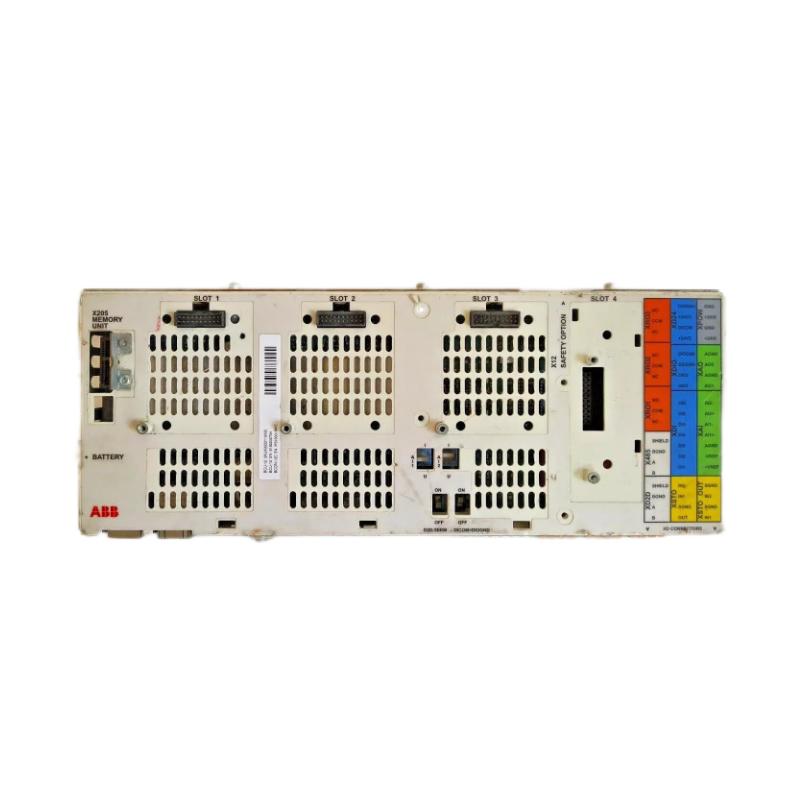

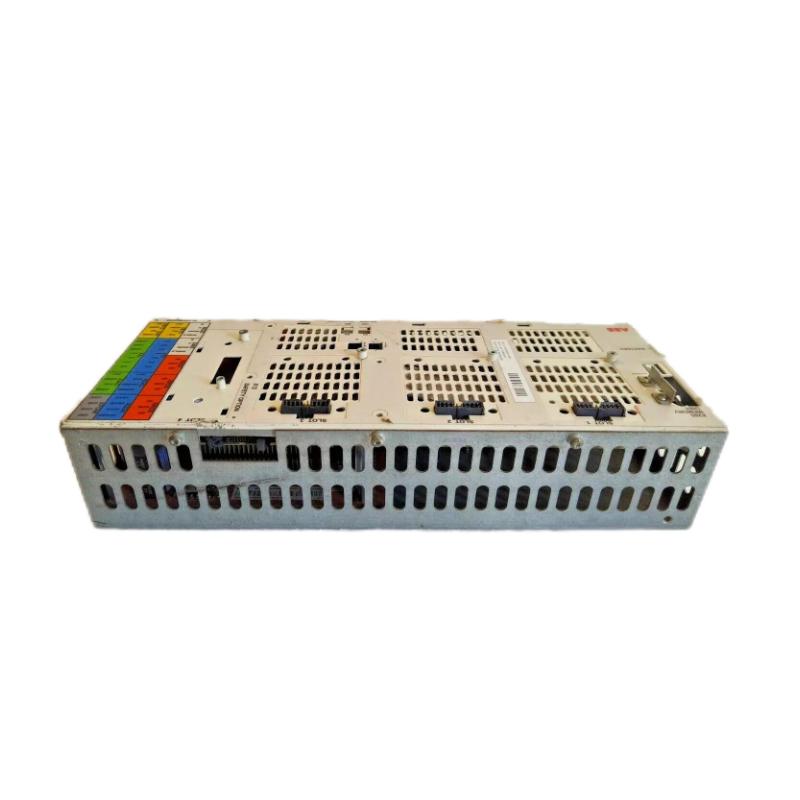

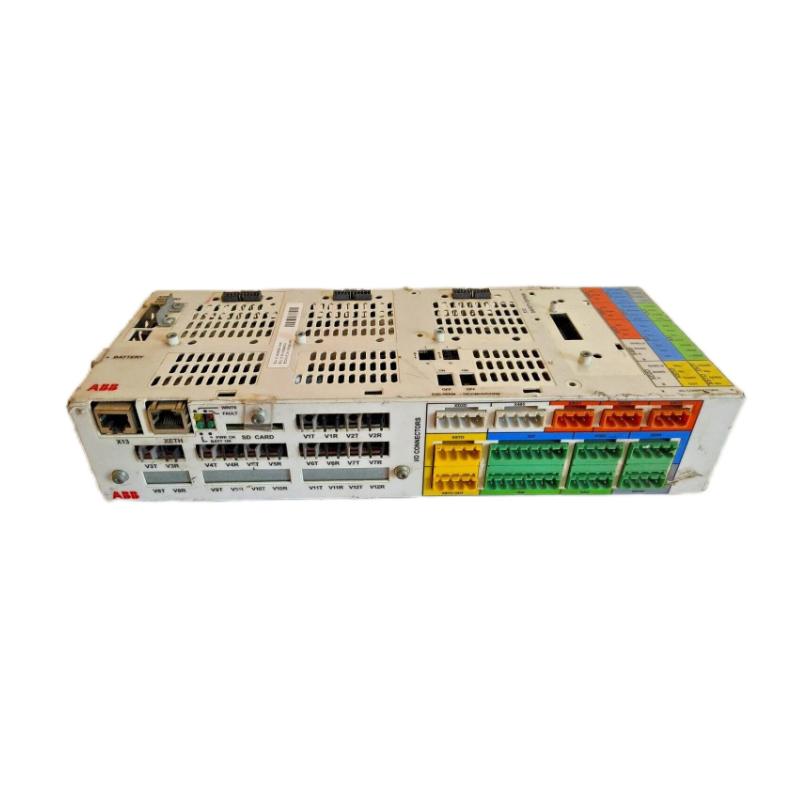

ABB BCU-12 3AUA0000110430 Control Unit Module New In Stock

Brand：ABB PLC

Item No.：ABB BCU-12 3AUA0000110430

Product origin：Sweden

Dimensions:314 × 139 × 115 mm

Weight:0.6kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The ABB BCU-12 is a control unit module designed for ABB drive systems, acting as an advanced logic/control interface for inverter cabinets, offering diagnostics, communication, and I/O integration.

General Information

Part Number: 3AUA0000110430

Manufacturer: ABB

Series: BCU Control Units

Type: Control / Logic / Communication Module

Mounting: Cabinet or chassis mounting within inverter enclosures

Technology: Microprocessor-based module with configurable I/O and network interfaces

Power Specifications

Power Supply: 24 V DC

Power Consumption: ~5 W (when idle)

Input: Logic and control signals from drive backplane

Outputs: Auxiliary +24 V DC supply for I/O

Protection: Surge protection, reverse-polarity protection, overcurrent protection

Indicators: LEDs for status, fault, power, communication

Communication & Interface

Ethernet / Fieldbus Ports: Supports network interfaces (e.g., Modbus, Profibus, etc.)

Microprocessor: On-board CPU for control, diagnostics, and protocol handling

LAN / Network Management: Handles network configuration and diagnostics

Operator Interface: Status LEDs and local interface for diagnostics

Reset Features: Software and hardware reset support

I/O & Channels

Digital Inputs / Outputs: 16 digital inputs, 16 digital outputs

Analog I/O: Support for analog channels for process signals (4–20 mA)

Relay Outputs: Included for auxiliary control tasks

External Load Support: Depends on I/O module ratings

Environmental

Operating Temperature: –40 to +70 °C

Storage Temperature: –40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Ingress / Protection: Designed for industrial environments (IP20 or equivalent)

Dimensions

Size (L × W × H): 314 × 139 × 115 mm

Weight: 0.6 kg

Imported products have stable supply, flexible prices, fast delivery response, and support solutions for large quantities.
