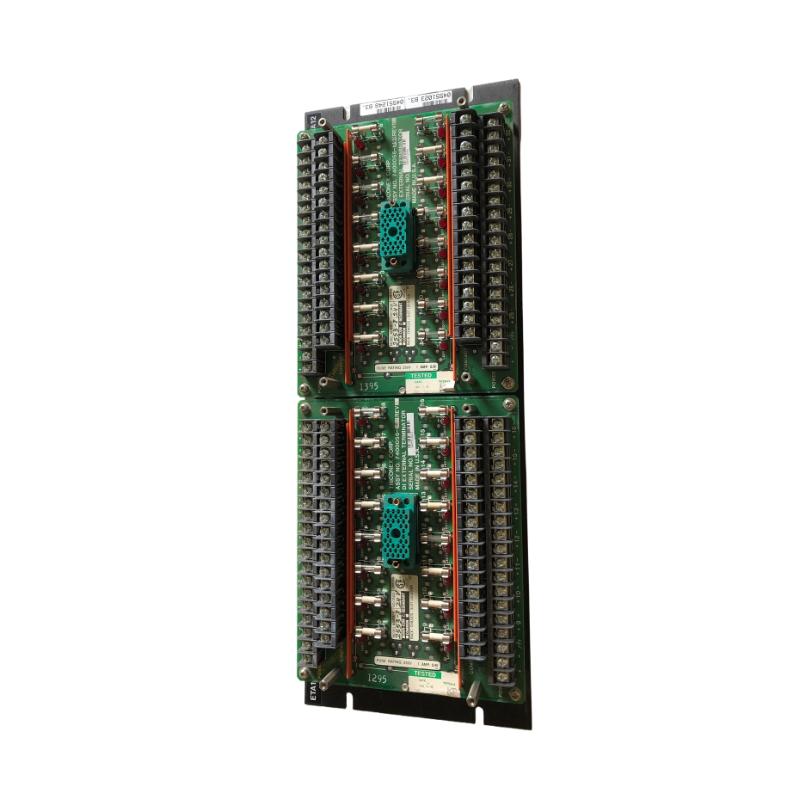

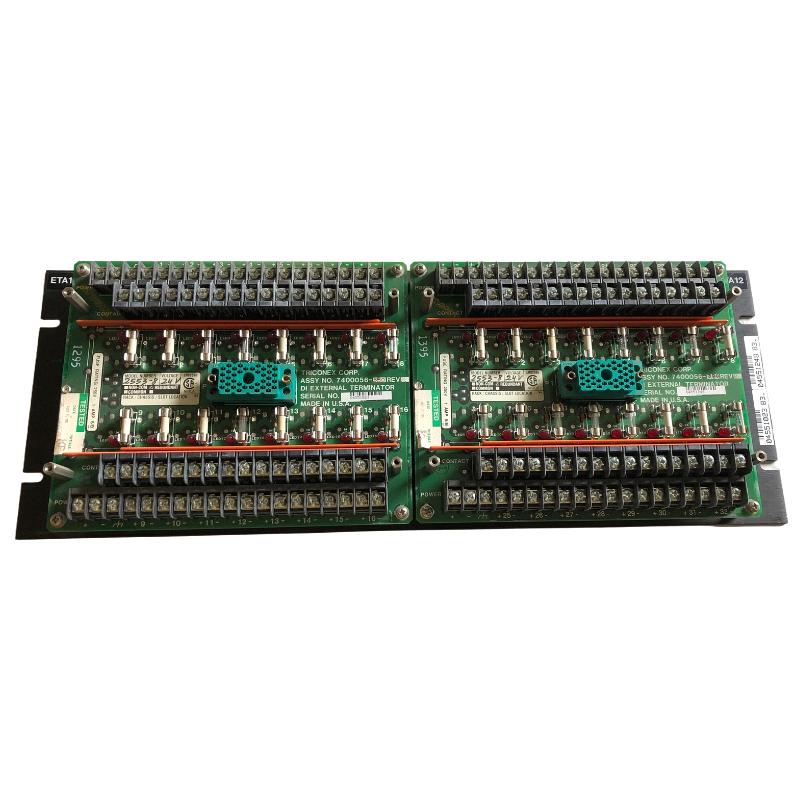

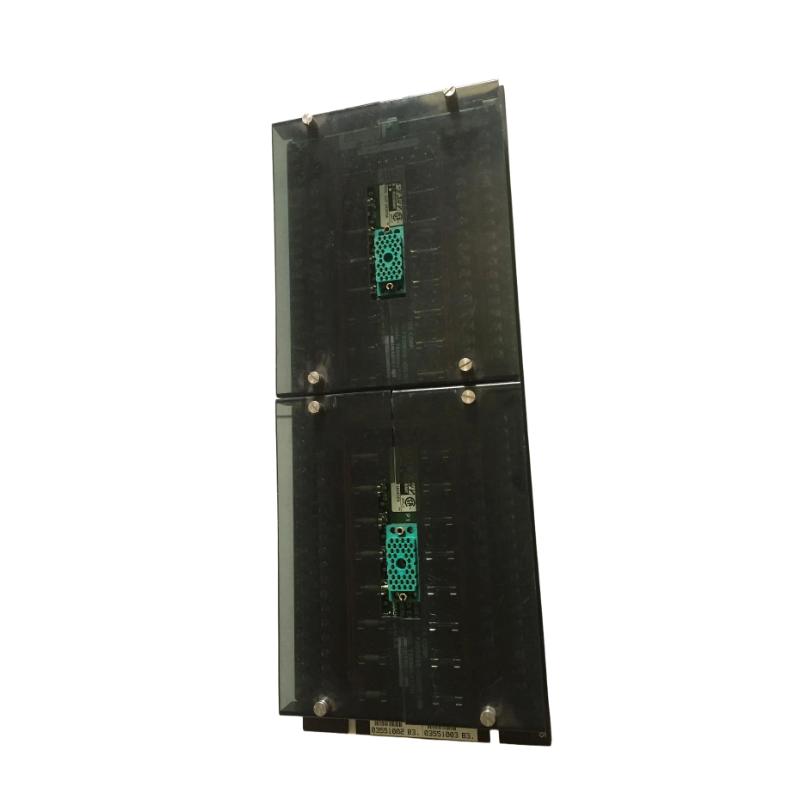

Triconex 3000110-360 External Termination Panel / Baseplate Original

Brand：Invensys Triconex

Item No.：Triconex 3000110-360

Product origin：USA

Dimensions:107 × 250 × 280 mm

Weight:3.2 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The Triconex 3000110-360 is an external termination baseplate designed for use with Tricon safety systems. It provides secure field wiring connections for 24 VDC digital input modules, enabling reliable signal interfacing and simplifying maintenance in safety-instrumented systems.

General Information

Part Number: 3000110-360

Manufacturer: Triconex (Schneider Electric / Invensys)

Series: Tricon 3000 Series

Type: External Termination Panel / Baseplate

Mounting: Chassis or cabinet installation (ETA configuration)

Technology: Passive wiring interface with fused channel protection

Power Specifications

Power Supply: 24 VDC (used with Tricon 24 VDC DI modules such as 3503E)

Power Consumption: Passive unit, negligible consumption

Input: Supports 24 VDC digital input signals from field devices

Outputs: Routes signals directly to Tricon I/O modules (no power conversion)

Protection: Individual channel fuse protection with blown-fuse indication

Indicators: Fuse status indicators (per channel)

Communication & Interface

Ethernet Port: None

Microprocessor: None (passive component)

LAN Management: Not applicable

Operator Interface: None; status visible through fuse indicators

Reset Features: Fuse replacement required for channel reset

I/O & Channels

Relay Channels: None (for DI use only)

External Load Support: Not applicable; provides field termination only

Channel Capacity: 16 fused digital input channels (two panels required for 32-point modules)

Environmental

Operating Temperature: -20 °C to +70 °C

Humidity: 5% to 95% RH, non-condensing

Dimensions

Height: 107 × 250 × 280 mm

Width: 107 × 250 × 280 mm

Depth: 107 × 250 × 280 mm

Weight: ~3.2 kg (7 lbs)
