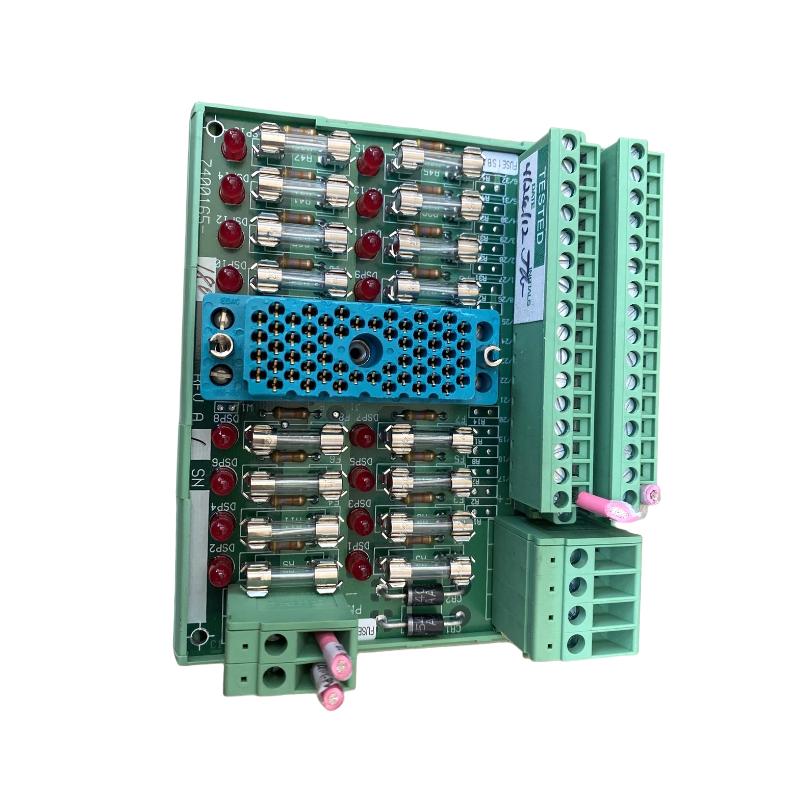

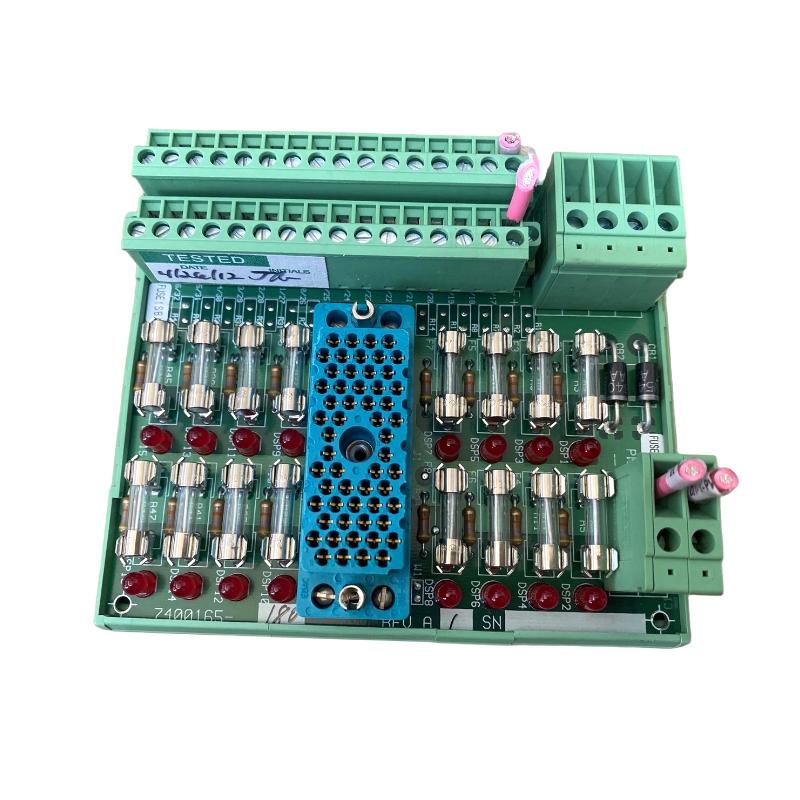

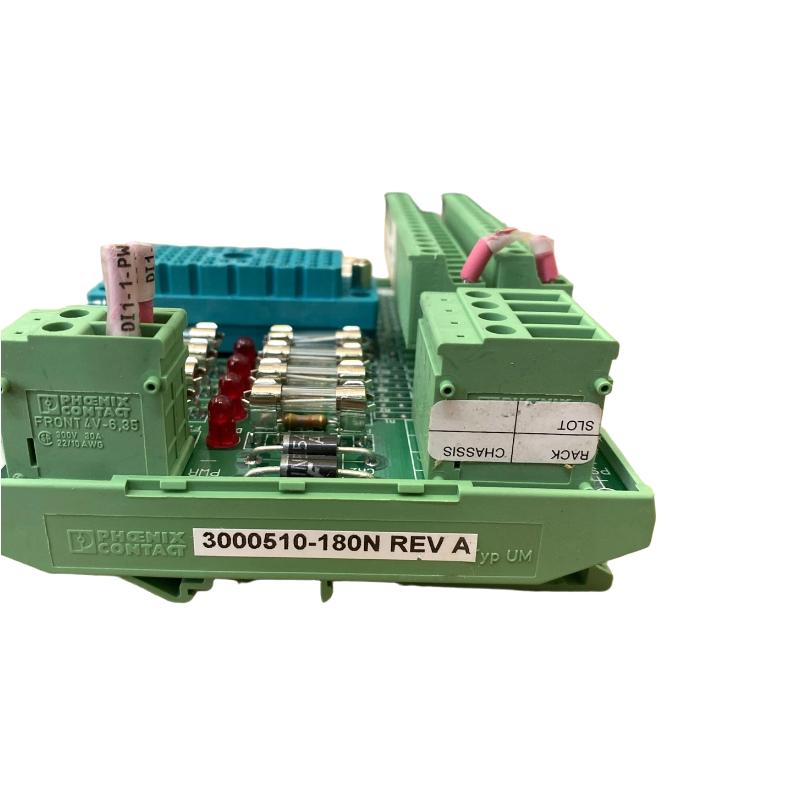

Triconex 3000510-180 Field Termination Panel 30-Day Returns！ Fast Shipping!

Brand：Invensys Triconex

Item No.：Triconex 3000510-180

Product origin：USA

Dimensions:340 × 250 × 80 mm

Weight:1.5 kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The Triconex 3000510-180 is a field termination panel designed to interface cleanly and safely between field wiring and the Tricon modular I/O units. Featuring multiple fused input points and DIN-rail mounting compatibility, it streamlines wiring complexity and enhances system maintainability in safety-critical control environments.

General Information

Part Number: 3000510-180

Manufacturer: Triconex (Schneider Electric)

Series: Tricon Modular Safety System

Type: Field Termination Panel / Terminal Board

Mounting: DIN-rail or panel installation within Tricon distribution cabinets

Technology: Passive wiring consolidation with integrated fuse protection

Power & Electrical

Signal Type: 115 V DC digital inputs from field devices into Tricon I/O modules

Input Protection: Each input point is safeguarded by an individual fuse, with visible blown-fuse indication

Power Terminals: Commoned PWR+ and PWR- rails for module power distribution

Safety Capability: Enhances I/O circuit protection and simplifies troubleshooting in high-integrity setups

I/O & Channels

Input Points: 16 fused digital input channels

Compatibility: Optimized for use with Tricon 115 V DC digital input modules; two panels required for 32-point modules

Design Purpose: Modular and compact terminal interface to minimize wiring errors and system downtime

Physical Details

Dimensions: Approximately 12.7 cm × 5.1 cm × 12.7 cm

Weight: Around 0.3 kg (lightweight for easy handling)

Construction: Rugged DIN-rail format ensures secure and space-efficient panel integration

Environmental & Reliability

Environment: Engineered for industrial control cabinet installations with consistent performance

Reliability Features: Facilitates hot-swap operations and rapid diagnostics, supporting safety requirements and system uptime

Applications

This panel is ideal for:

Cleanly terminating field wiring into Tricon safety I/O systems

Applications in oil & gas, petrochemical, power generation, and process industries

Scenarios demanding safe, maintainable, and high-availability system wiring architectures

This product is in stock, with fast response, flexible price range, and supports communication based on quantity.
