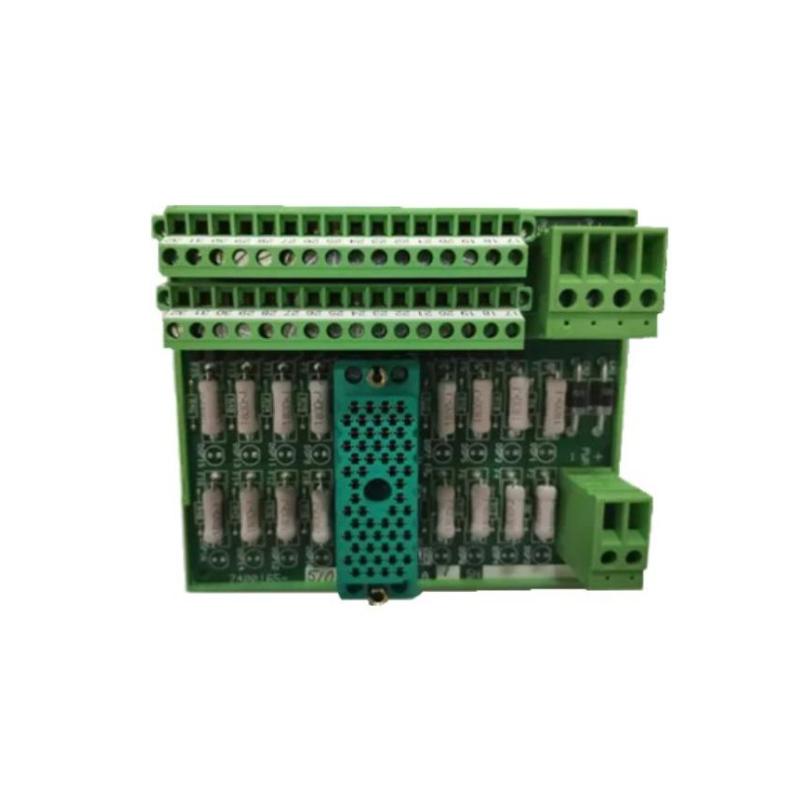

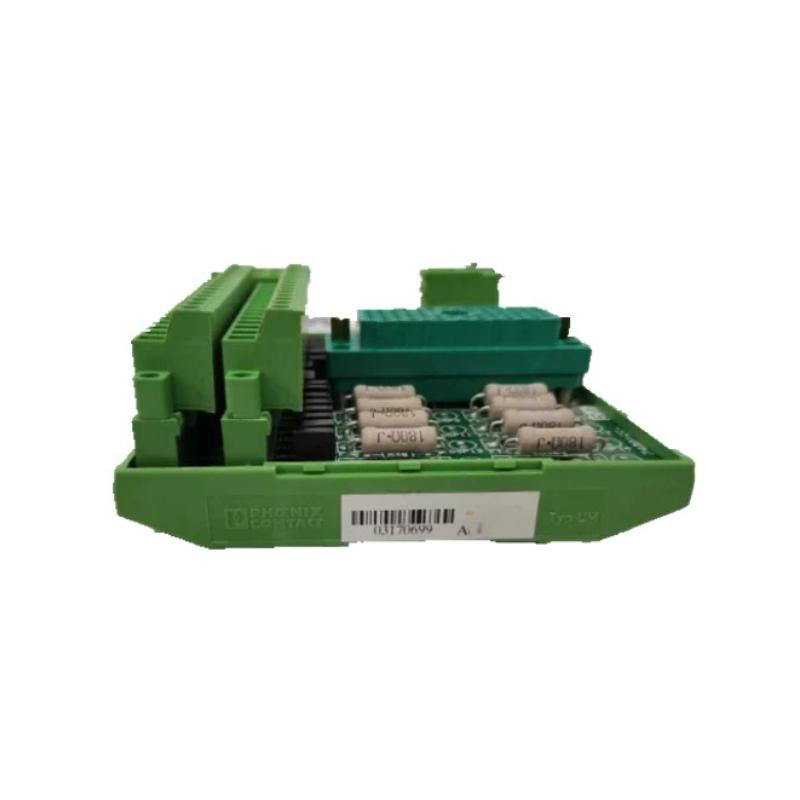

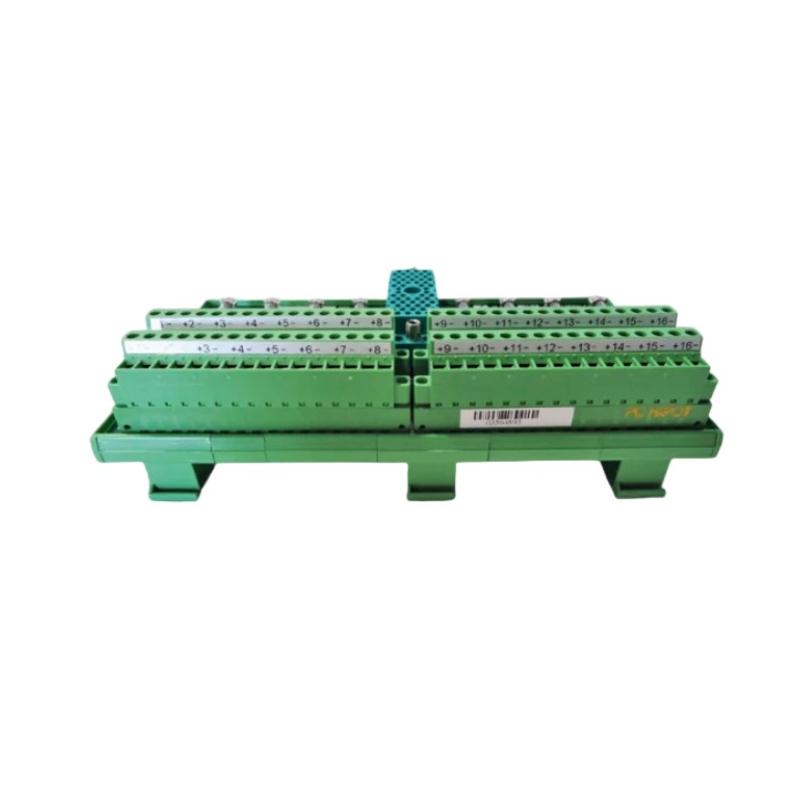

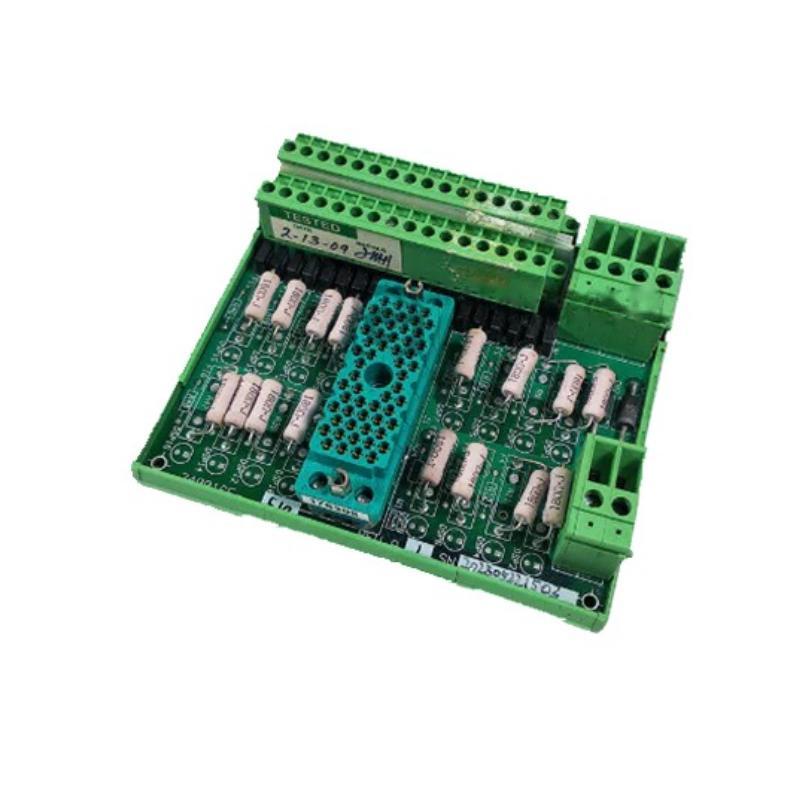

Triconex 3000520-380 external termination / interface module 100% New

Brand：Invensys Triconex

Item No.：Triconex 3000520-380

Product origin：USA

Dimensions:200 × 150 × 60 mm

Weight:0.33 kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

The Triconex 3000520-380 is an external termination / interface module for Tricon safety systems. It provides secure field wiring termination for 24 VDC signals, designed for reliability in industrial safety environments.

General Information

Part Number: 3000520-380

Manufacturer: Triconex (Schneider Electric / Invensys)

Series: Tricon 3000 Series

Type: Interface / External Termination Panel Module

Mounting: Chassis or cabinet external termination assembly

Technology: Passive field termination with robustness against environmental and mechanical stress

Power Specifications

Power Supply: 24 VDC

Power Consumption: 20 W

Input: 24 V digital signals from field devices to I/O modules

Outputs: Terminated signals routed to Tricon I/O modules

Protection: Built-in protection for field wiring (fusing or equivalent), designed for safe isolation

Indicators: LED or indicator for module power and status monitoring

Communication & Interface

Ethernet Port: None

Microprocessor: None

LAN Management: Not applicable

Operator Interface: Terminals + status indicator LEDs

Reset Features: Manual reset via wiring or fuse replacement

I/O & Channels

Digital Input/Output Points: Supports multiple termination points for field I/O (exact channel count with matching I/O modules)

External Load Support: Supports load current per I/O channel as per module ratings

Environmental

Operating Temperature: -40 to +70 °C

Storage Temperature: -40 to +85 °C

Humidity: 0 to 95 % RH, non-condensing

Other Environmental Resistance: Vibration and shock rated for industrial use

Dimensions

Size (L × W × H): 200 × 150 × 60 mm

Weight: ~ 0.33 kg

The product import process is stable, the delivery speed is flexible and controllable, and there are real discounts for bulk purchases.
