Product Introduction：

Overview

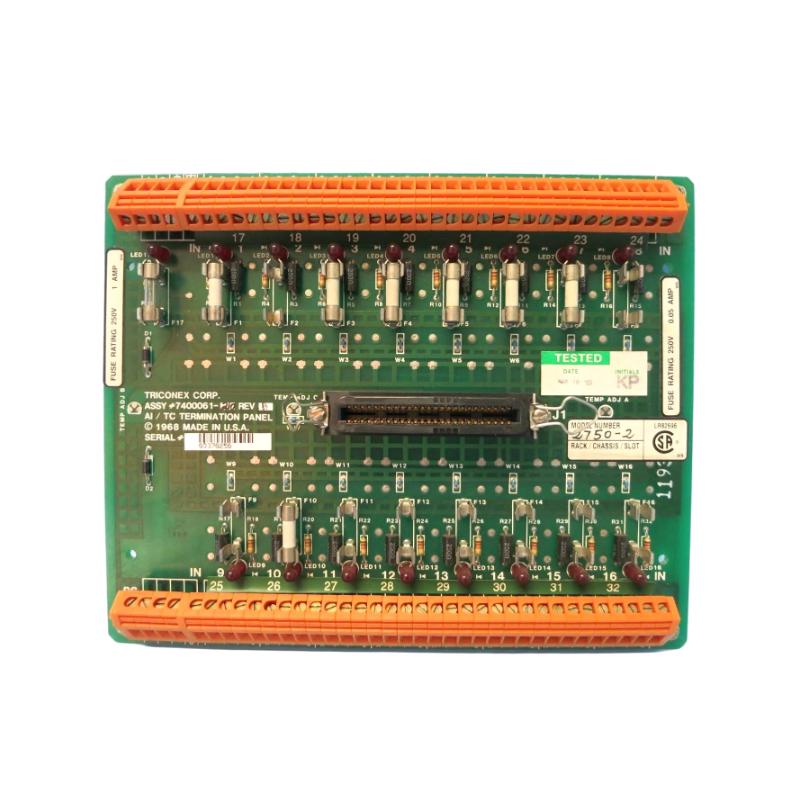

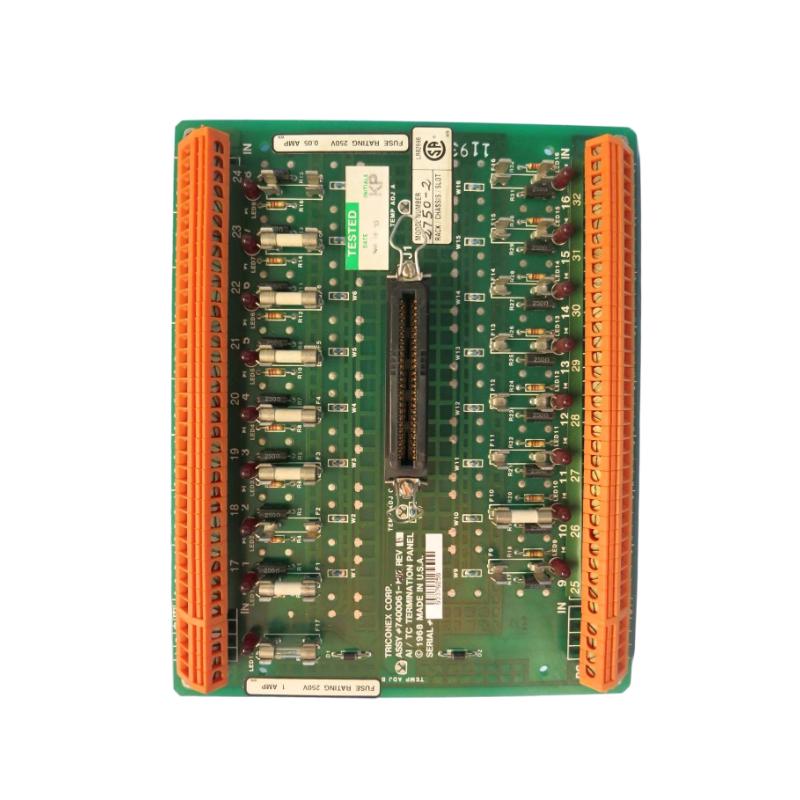

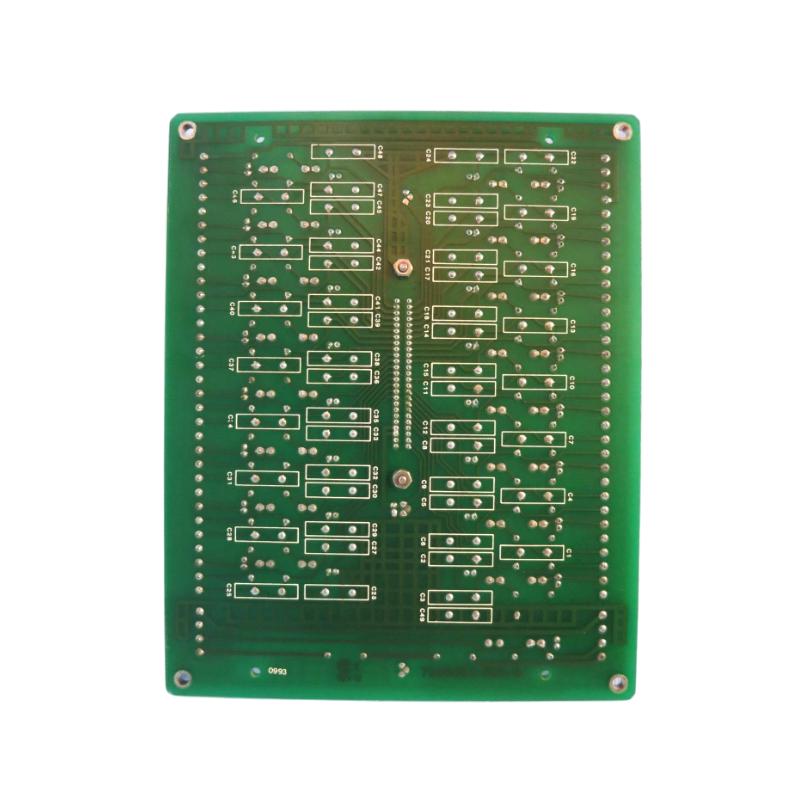

The Triconex 300012-220 is a termination panel designed for the Tricon 2750-2 system. It provides secure field wiring connections for digital and analog signals, ensuring reliable interfacing between I/O modules and field devices in safety-critical applications.

General Information

Part Number: 300012-220

Manufacturer: Triconex (Schneider Electric)

Series: Tricon 2750-2 I/O Series

Type: Field Termination Panel

Mounting: Cabinet / chassis mounting

Technology: Passive wiring interface

Power Specifications

Power Supply: 24 V DC nominal (18–32 V DC range)

Power Consumption: 10 W

Protection: Fused channels with isolation up to 1500 V DC

Indicators: Fuse status indicators

Communication & Interface

Operator Interface: Field terminals with LED/fuse indication

Reset Features: Fuse replacement required

I/O & Channels

Digital Channels: Up to 128 (24 V DC)

Analog Channels: Up to 64 (4–20 mA or 0–10 V)

External Load Support: Resistive and inductive loads supported

Environmental

Operating Temperature: -40 to +70 °C

Humidity: 0% to 95% RH, non-condensing

Dimensions

Size (L × W × H): 267 × 216 × 114 mm

Weight: 0.58 kg
