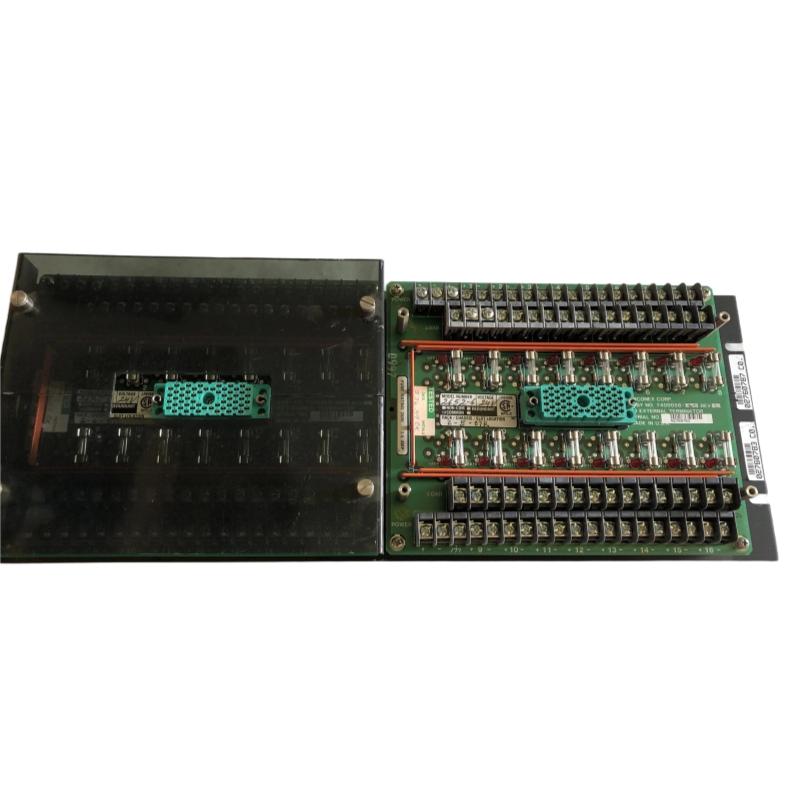

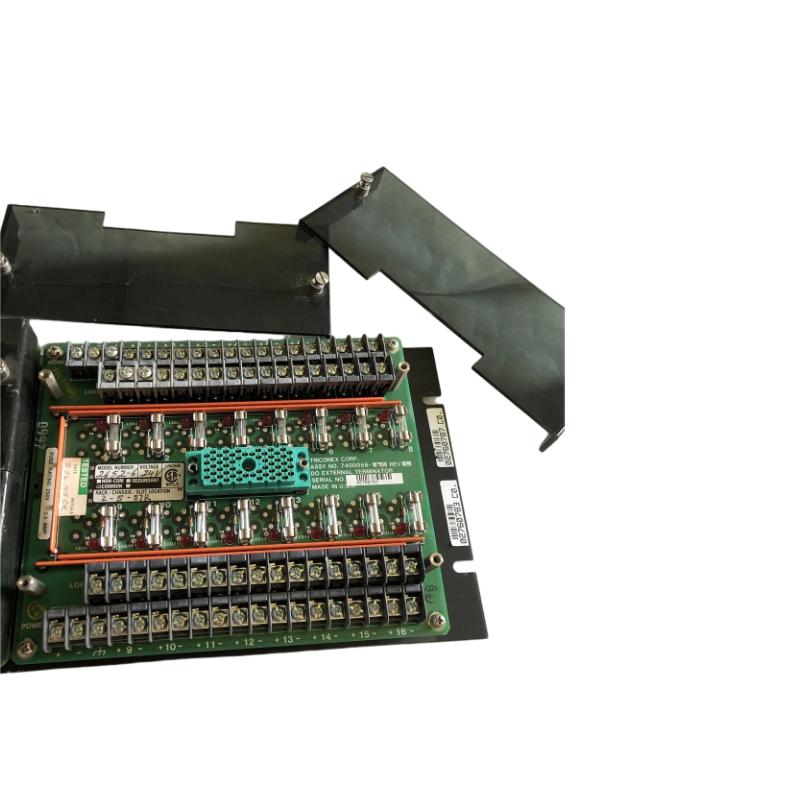

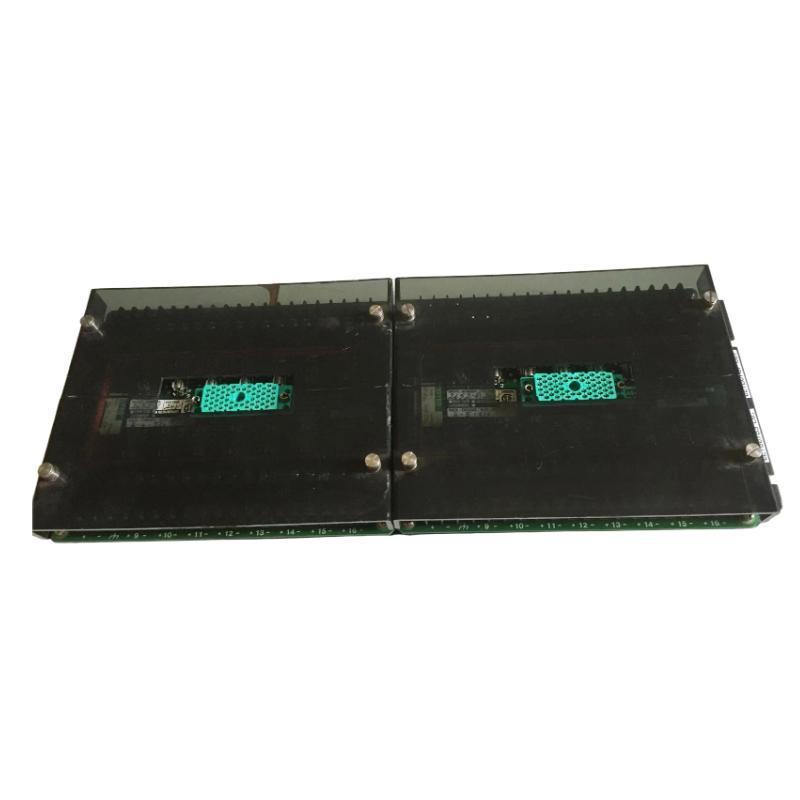

Triconex 3000120-380 Digital Output Termination Panel Original

Brand：Invensys Triconex

Item No.：Triconex 3000120-380

Product origin：USA

Dimensions:280 × 220 × 70 mm

Weight:1.1 kg

Import process is standardized, testing is supported, and after-sales service is guaranteed

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The Triconex 3000120-380 is a digital output termination panel designed for Tricon safety systems. It provides reliable 24 V DC digital output interfacing between the Tricon system and field devices, ensuring secure connections and supporting high-integrity safety applications.

General Information

Part Number: 3000120-380

Manufacturer: Triconex (Schneider Electric)

Series: Tricon 3000 Series

Type: Digital Output Termination Panel

Mounting: Cabinet or chassis installation

Technology: Passive termination with integrated output channel protection

Power Specifications

Power Supply: 24 V DC

Power Consumption: < 8 W

Input: Digital output drive signals from Tricon I/O modules

Outputs: 64 x 24 V DC digital outputs

Protection: Individual channel fuse protection

Indicators: Fuse blown indicators per channel

Communication & Interface

Ethernet Port: None

Microprocessor: None

LAN Management: Not applicable

Operator Interface: LED fuse status indicators

Reset Features: Fuse replacement required for recovery

I/O & Channels

Digital Output Channels: 64

Output Voltage: 24 V DC

Channel Current Rating: 0.5 A per channel

External Load Support: Resistive and inductive loads supported

Environmental

Operating Temperature: -20 to +70 °C

Storage Temperature: -40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Dimensions

Size: 280 × 220 × 70 mm

Weight: 1.1 kg
