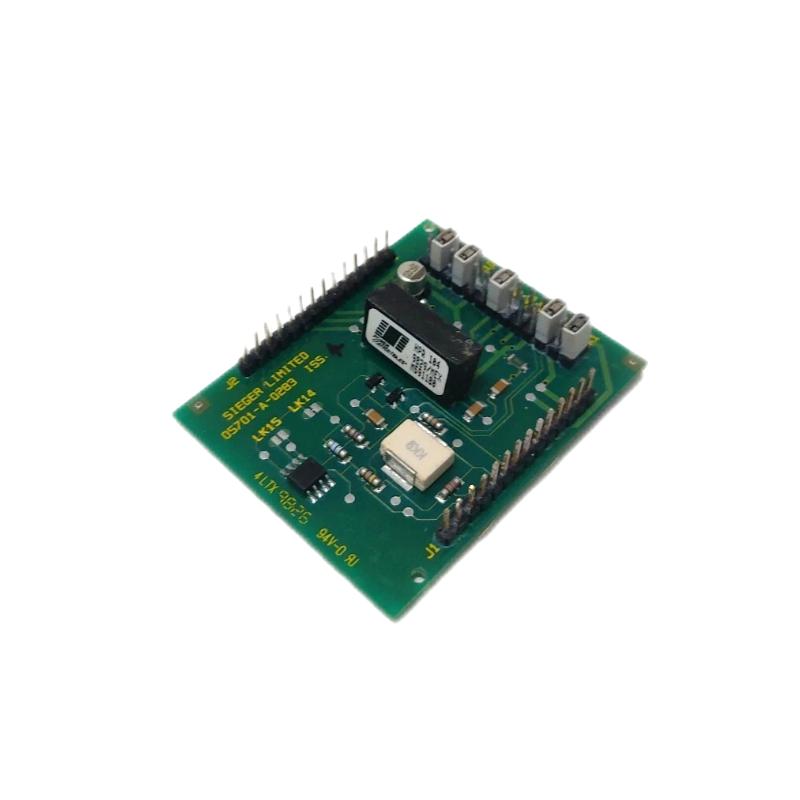

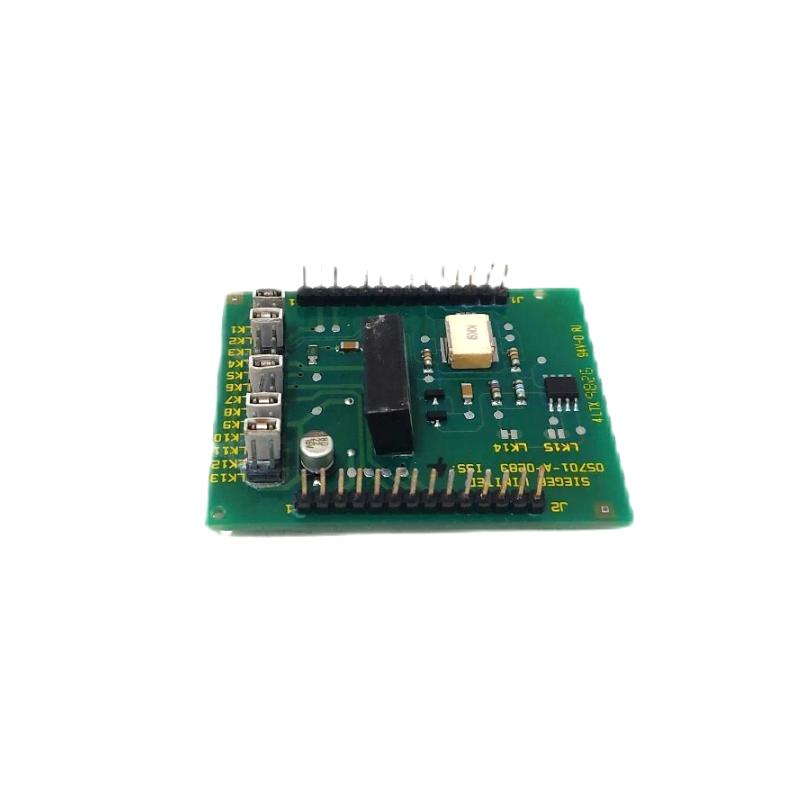

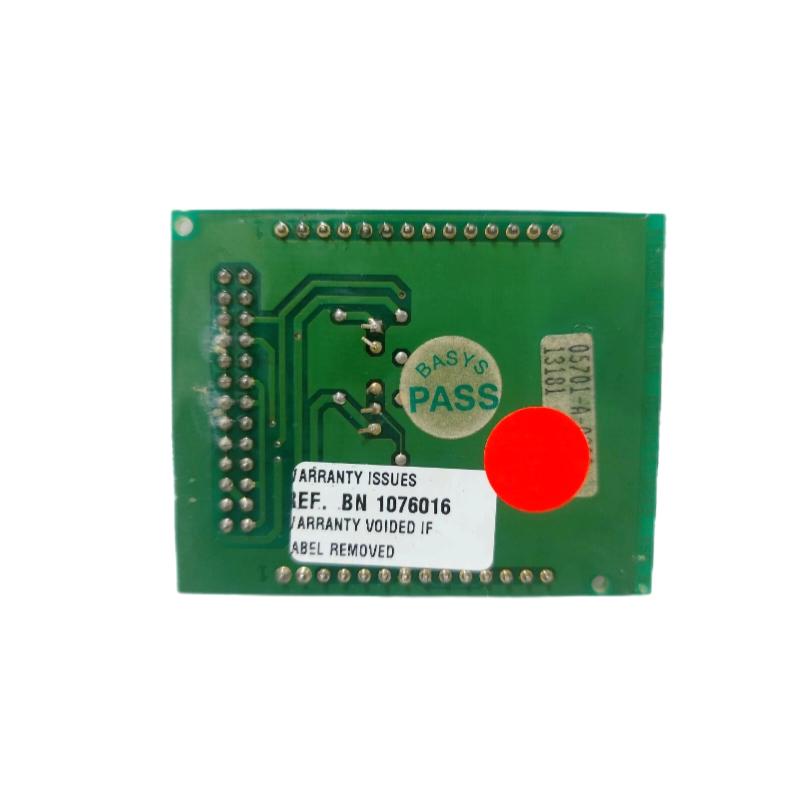

Honeywell 05701-A-0283 Sensor Drive Module New In Stock Fast Shipping!

Brand：Honeywell DCS

Item No.：05701-A-0283

Product origin：USA

Dimensions:170 x 25 x 112 mm

Weight:0.20kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The Honeywell 05701-A-0283 is a Sensor Drive Module crafted for integration into the Honeywell System 57 gas detection control system. It delivers precise 4–20 mA signal outputs and supplies power to connected field sensors—ensuring accurate data transmission in safety-critical gas detection environments.

General Information

Part Number: 05701-A-0283

Manufacturer: Honeywell

Series/Application: System 57 Gas Detection Controller

Type: Sensor Drive Module

Mounting: Plug-in module compatible with System 57 chassis

Technology: Signal conditioning with built-in sensor power supply

Power Specifications

Supply Voltage: 24 V DC (nominal)

Power Consumption: Approximately 150 mA (~3.6 W)

Protection:
• Reverse-polarity protection
• Short-circuit protection

Status Indicators: Diagnostic LED for module health and power

Communication & Interface

Output Signal: Industry-standard 4–20 mA current loop

Load Capability: Supports up to 600 Ω load at 24 V DC

Accuracy: ±0.1% of full scale for reliable sensor readings

Sensor Integration: Provides both power and signal conversion for compatible sensors

I/O & Channels

Input Interface: Accepts connected sensor input, formats to analog output

Output Interface: Single 4–20 mA loop for downstream control modules or DCS

System Role: Acts as intermediary between gas sensor devices and main controller

Environmental

Operating Temperature: –20 °C to +60 °C

Protection Rating: IP20 (suitable for control cabinet environments)

Certifications: CE marked, suitable for industrial safety system use

Dimensions & Weight

Length: Approx. 17 cm

Width: Approx. 11.2 cm

Depth (Height): Approx. 25 cm

Weight: Approx. 0.2 kg

The product price is transparent, delivery is fast, and project procurement supports a tiered pricing plan.
