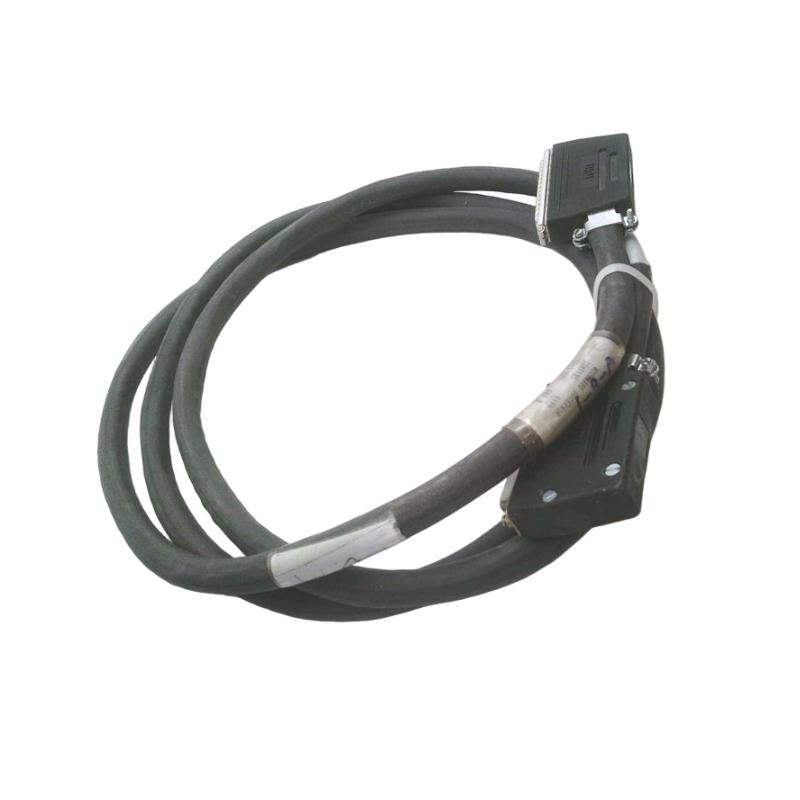

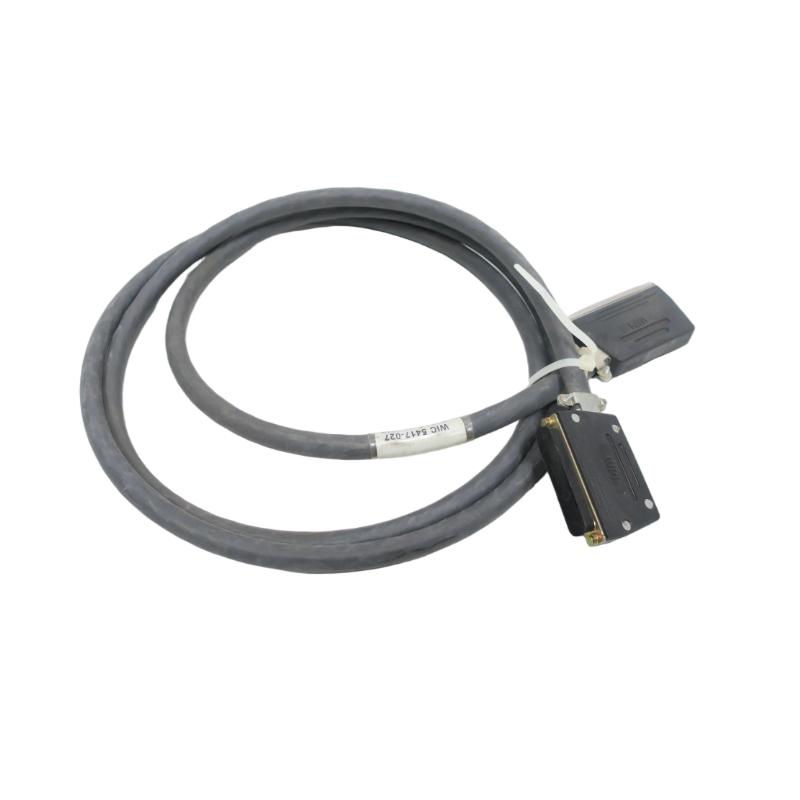

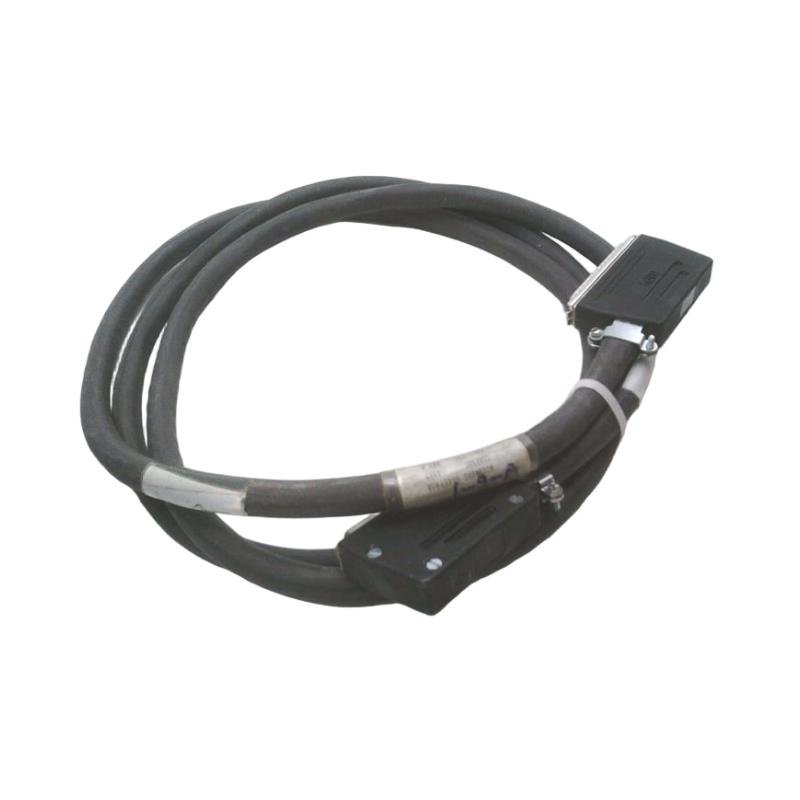

Woodward 5417-027 Cable New In Stock 12-Month Warranty

Brand：Woodward PLC

Item No.：5417-027

Product origin：USA

Dimensions:Cable Length: 8 feet

Weight:0.6kg

Formal channels, complete test instructions, responsive service

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product Introduction：

Overview

The Woodward 5417‑027 is a microprocessor-based speed controller and synchronizer designed for three-phase AC generator systems. It offers low-current PWM output and supports both analog and discrete inputs for frequency, phase, and voltage matching applications, ideal for diesel, gas, and steam turbine-driven generators.

General Information

Part Number: 5417‑027

Manufacturer: Woodward

Type: Digital Speed Controller / Synchronizer

Mounting: Panel or chassis mount

Technology: Microprocessor-controlled module with dual serial interface and PWM outputs

Power Specifications

Supply Voltage: 18–36 V DC (nominal 24 V DC)

Power Consumption: Low-power design

Protection:
• Surge and reverse voltage protection
• Galvanic isolation on outputs

Indicators: LED status for power, mode, fault, and communication

Communication & Interface

Serial Ports:
• RS-232 and RS-422 (independent) for setup, diagnostics, or integration

PWM Output: Low-current output for driving generator field or control inputs

Functionality:
• Automatic phase, frequency, and voltage matching using analog or discrete reference input
• Optional Modbus serial communication
• Dual redundant Ethernet support available

Diagnostics: Real-time monitoring with fault detection and logging

I/O & Channels

PWM Outputs: 1 external control output

Analog Inputs: Supports both voltage and discrete inputs for control signals

Control Features:
• Speed/load control loops
• Governors, soft start/load transfer, torque or manifold pressure limiting, auto idle control
• Configurable for diesel, gas, or steam turbines

Synchronization: Provides automatic synchronizing signals to match frequency, phase, and voltage prior to connecting generators

Environmental

Operating Temperature: –40 °C to +100 °C

Vibration & Shock: Designed for high-vibration industrial environments

Humidity: Industrial rated; environmental protection per standards

Certifications: Suitable for Class I Division environments; industrial-grade reliability

Dimensions & Weight

Size: Compact module size (panel/chassis mountable)

Weight: Approximately 0.6 kg

Applications

Ideal for generator sets powered by turbines or industrial engines, providing critical control and synchronizing functions in:

Diesel and gas engine generator sets

Steam, gas, and hydraulic turbine controls

Load sharing, soft-load transfer, and auto-synchronization systems

The inventory of the product is stable, the delivery response is fast, the unit price is reasonable, and large orders are supported for negotiation discounts.
