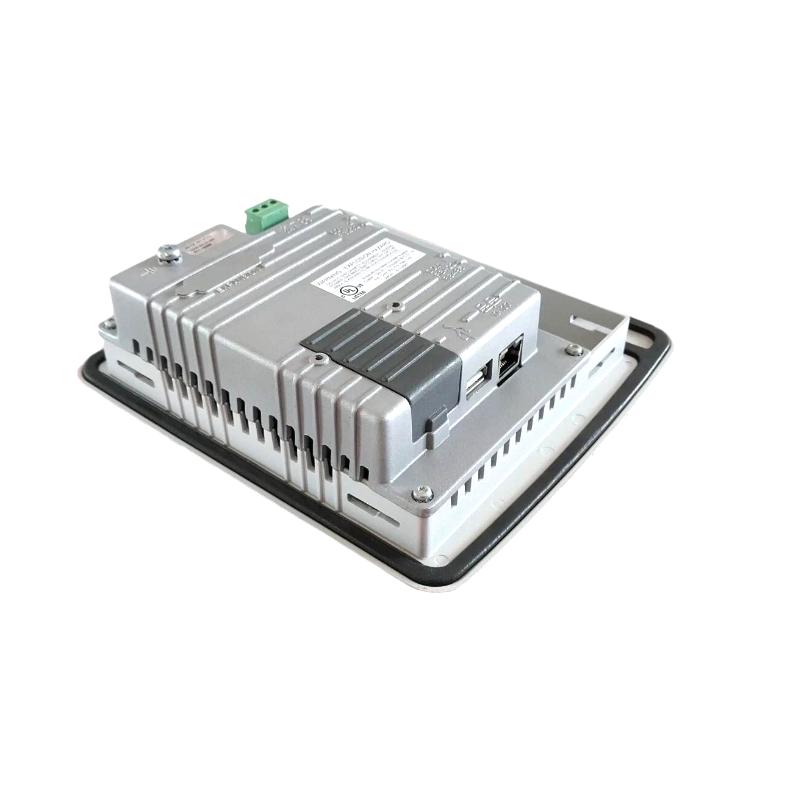

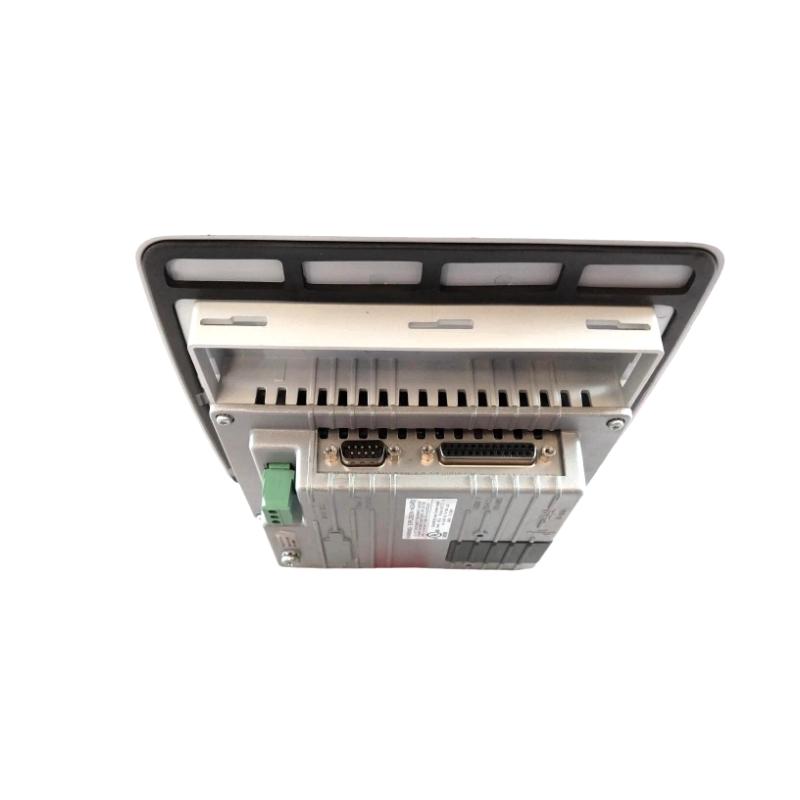

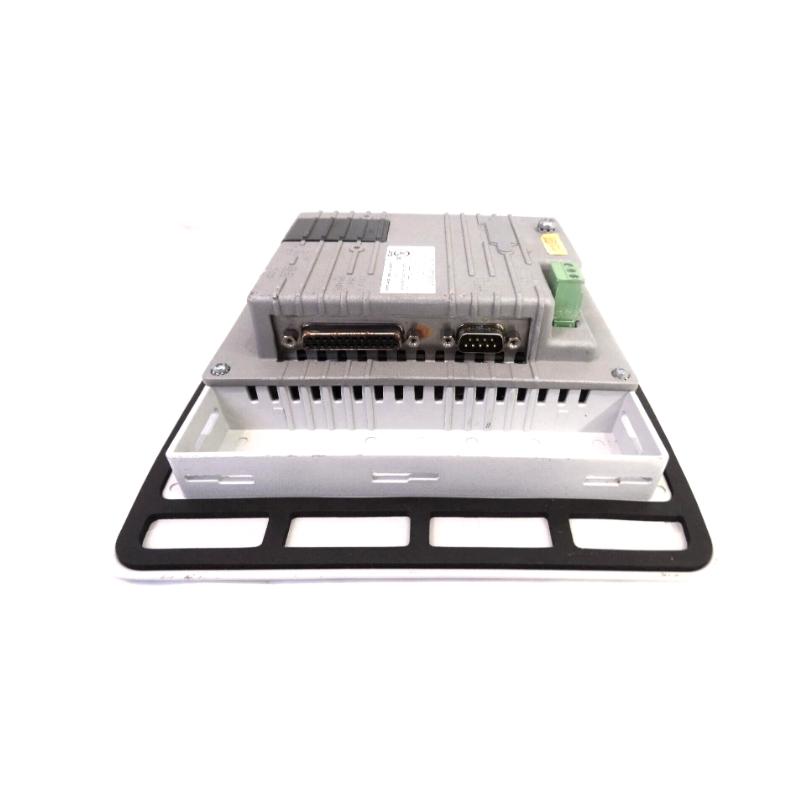

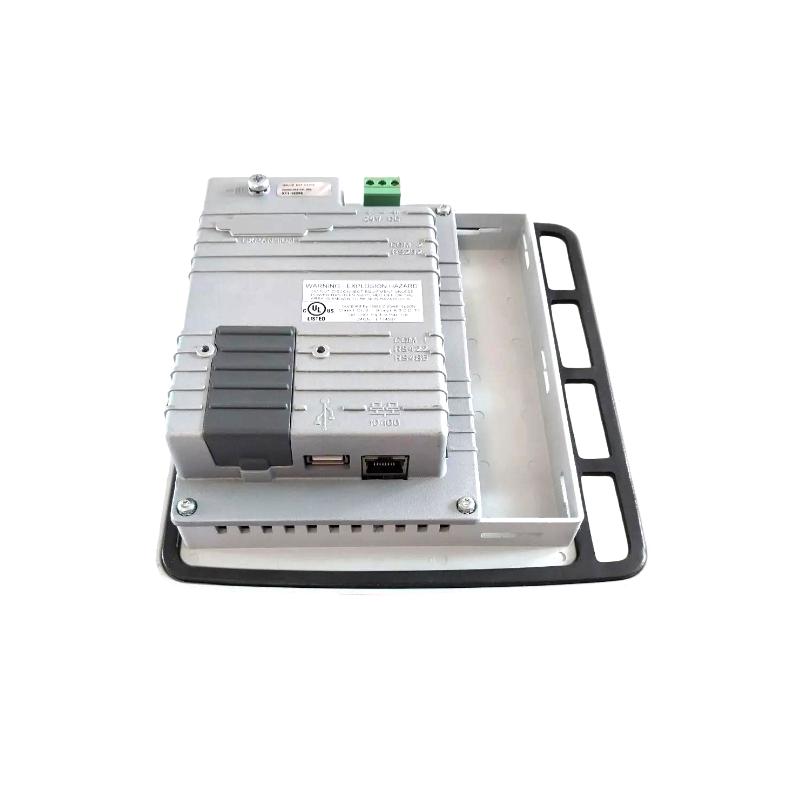

ABB PP820 3BSE042243R1 | Function Key Panel 30-Day Returns 12-Month Warranty

Brand：ABB PLC

Item No.：ABB PP820 3BSE042243R1

Product origin：Sweden

Dimensions:200 × 150 × 120 mm

Weight:1.5kg

Formal channels, complete test instructions, responsive service

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product Introduction：

Overview
The ABB PP820 is a versatile function key panel designed for industrial automation and control systems. This panel provides a user-friendly interface with dedicated function keys that allow operators to quickly interact with and control complex processes in real-time. It is an essential component in environments where fast, direct control and monitoring are required, such as manufacturing, chemical processing, and energy management. The PP820 integrates seamlessly into ABB’s automation systems, offering robust performance, easy customization, and reliability for industrial operations.

General Information
Part Number: 3BSE042243R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PP (Function Key Panel)

Type: Function Key Panel

Mounting: Designed for installation in control panels or industrial automation systems

Technology: Advanced user interface technology with programmable function keys

Power Specifications
Supply Voltage: 24 V DC

Power Consumption: ≤ 100 W

Input: Powered from external AC or DC supply

Indicators: LEDs for power status, operational status, and function key activity

Protection: Over-voltage, over-current, and short-circuit protection

Communication & Interface
Interface Type: Industrial communication protocols (e.g., Modbus, Profibus, Ethernet)

System Role: Provides direct user interaction with the control system via function keys

Signal Handling: Configurable function key assignments for process control and monitoring

Diagnostics: Built-in diagnostics for operational status and fault detection

Reset Features: Supports reset functions for system recovery

Environmental
Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial environments

Dimensions & Weight
Dimensions (L × W × H): 200 × 150 × 120 mm

Weight: ~ 1.5 kg
