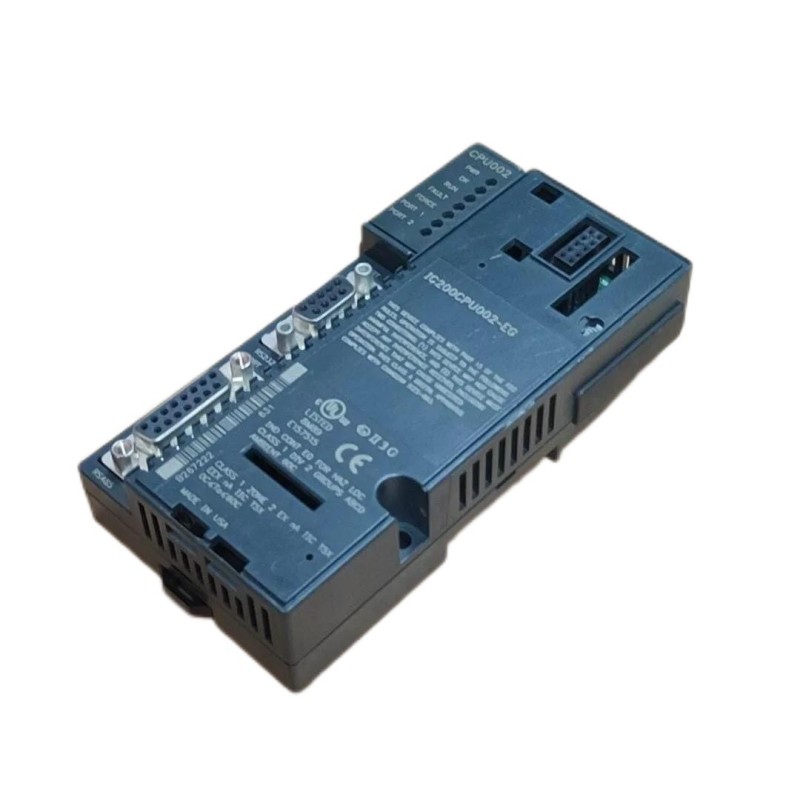

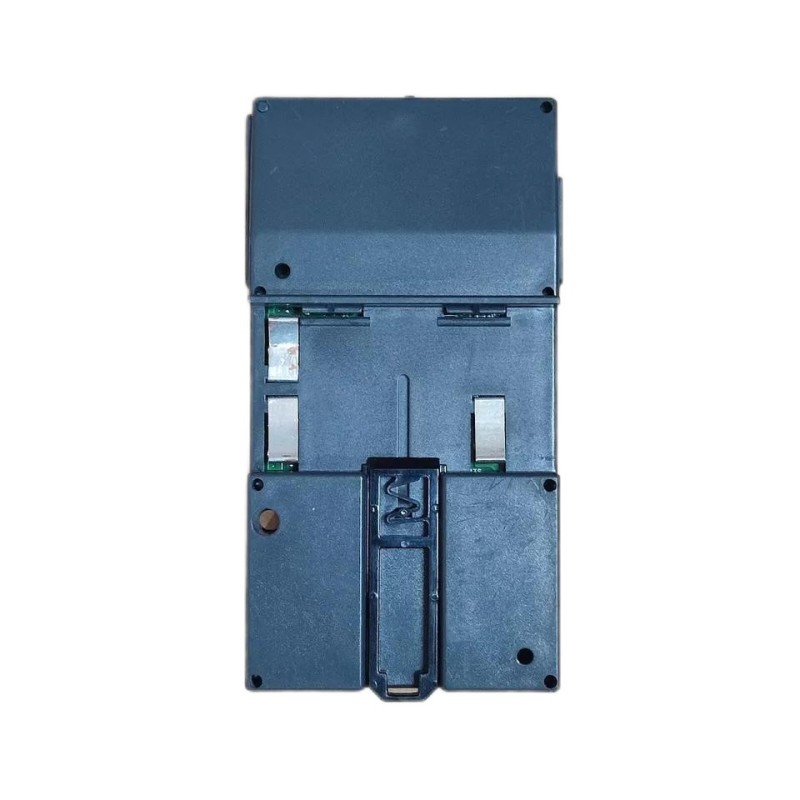

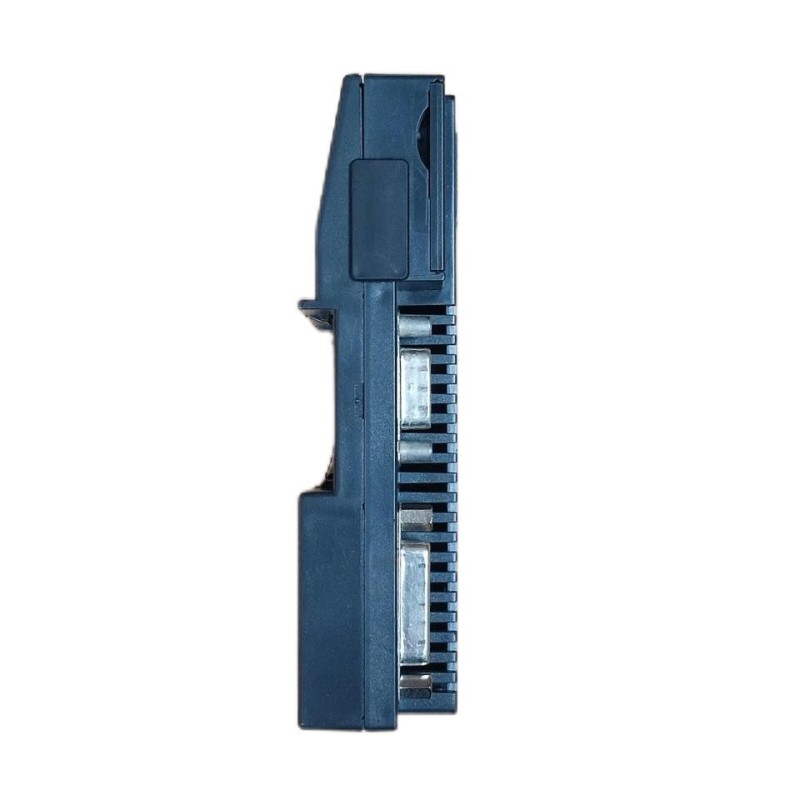

GE IC200CPU002‑EG | VersaMax CPU Module Quality Selection 30-Day Returns！

Brand：GE Fanuc PLC

Item No.：GE IC200CPU002-EG

Product origin：USA

Dimensions:66.8 × 128 × 69.1 mm

Weight:0.449 kg

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of various models, support for rapid response, welcome to cooperate and communicate!

Product Introduction：

Overview

The GE IC200CPU002‑EG is a programmable logic controller (PLC) CPU unit from the VersaMax series. It provides 42 KB of user memory, built-in RS‑232 and RS‑485 ports, and supports ladder logic programming with floating-point data functions. It is designed for compact automation systems requiring reliable control and communication.

General Information

Part Number: IC200CPU002‑EG
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: VersaMax CPU Series
Type: CPU Module
Function: Executes system logic, manages I/O scanning, communications, and diagnostics

Power Specifications

The module draws power from the VersaMax backplane with internal 5 V and 3.3 V supplies. Typical current draw is approximately 460 mA at 5 V and 5 mA at 3.3 V. The module features a RUN/STOP switch and LEDs indicating status, fault, and communication.

Communication & Interface

The CPU module includes RS‑232 and RS‑485 serial ports. It supports SNP Slave, RTU Slave, and serial I/O protocols, allowing external device connection and ladder logic program download. The module supports up to 2048 discrete inputs and 2048 discrete outputs in local I/O mode.

Environmental

Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in a cabinet
Mounting: DIN‑rail or panel mount; vertical or horizontal orientation permissible

Dimensions & Weight

Dimensions (L × W × H): 66.8 × 128 × 69.1 mm
Weight: 0.449 kg

Original new items, ready in stock, with fast response and transparent prices.

The product has high delivery efficiency, clear cost structure, and supports bargaining when the quantity demand is large.
