GE DS200LRPBG1AAA | Resolver Board (Mark V) New In Stock 12-Month Warranty

Brand：GE Fanuc PLC

Item No.：GE DS200LRPBG1AAA

Product origin：USA

Dimensions:100 x 50 x 20mm

Weight:0.1 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product Introduction：

Overview

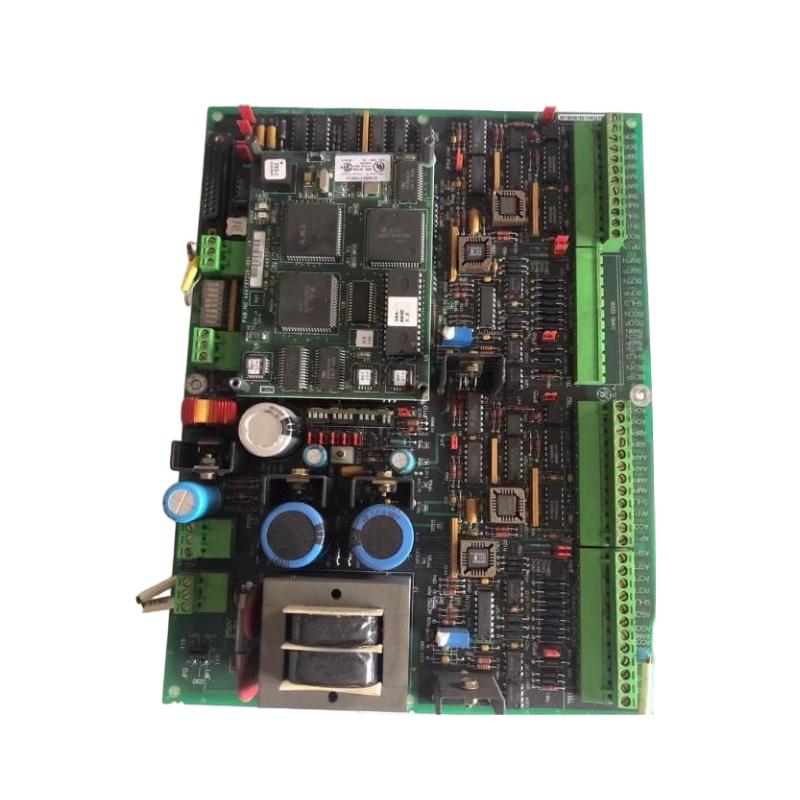

The GE DS200LRPBG1AAA is a resolver board used in GE Mark V (DS200) turbine control systems. It processes rotor-position feedback from a resolver sensor, providing precise angular position information to the control logic for turbine speed and synchronization control.

General Information

Part Number: DS200LRPBG1AAA

Manufacturer: GE (General Electric)

Series: Mark V / DS200

Type: Resolver (Rotor-Position) Board

Functional Acronym: LRPB

Revision: AAA

Mounting: Panel-mounted inside the control cabinet

Technology: PCB with integrated resolver processing circuits

Power & Electrical Characteristics

Supply Voltage: Standard Mark V board supply from the controller backplane

Power Consumption: Low, typical for signal-processing PCB

Components: Includes ICs, resistors, capacitors, inductors, transformer, and heat sinks for reliable signal processing

Indicators: LEDs for status and fault detection

Reset Features: Push-button reset for diagnostics

Protection: Circuit design includes surge and transient suppression

Communication & Interface

Terminal Strips: Four front-edge strips for wiring connections

Connectors: One vertical pin connector for interface with the control system

Jumpers: Configurable for resolver mode selection and diagnostic setup

Signal Support: Accepts resolver input signals and outputs processed angular data

Operator Interface: Terminal strips, jumpers, and LED indicators

I/O & Channels

Input: Resolver signals from turbine shaft

Output: Angular position feedback to Mark V modules

Diagnostics: Local fault indication via LEDs and reset button

Environmental

Operating Temperature: Suitable for turbine control cabinet conditions

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard PCB coating for industrial use

Dimensions & Weight

Dimensions (L × W × H): 100 x 50 x 20mm

Weight: ~0.1 kg

Brand-new originals in stock, contact us anytime for a quick quote.

The product channel is regular, the logistics cycle is short, the price is reasonable, and the settlement method can be adjusted according to the quantity.
