GE IC200CHS022G | VersaMax Compact I/O Carrier Hot Items 30-Day Returns！

Brand：GE Fanuc PLC

Item No.：GE IC200CHS022G

Product origin：USA

Dimensions:66.8  × 133.4  × 70 mm

Weight:0.2 kg

Standardized import process, support for testing, guaranteed after-sales

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product Introduction：

Overview

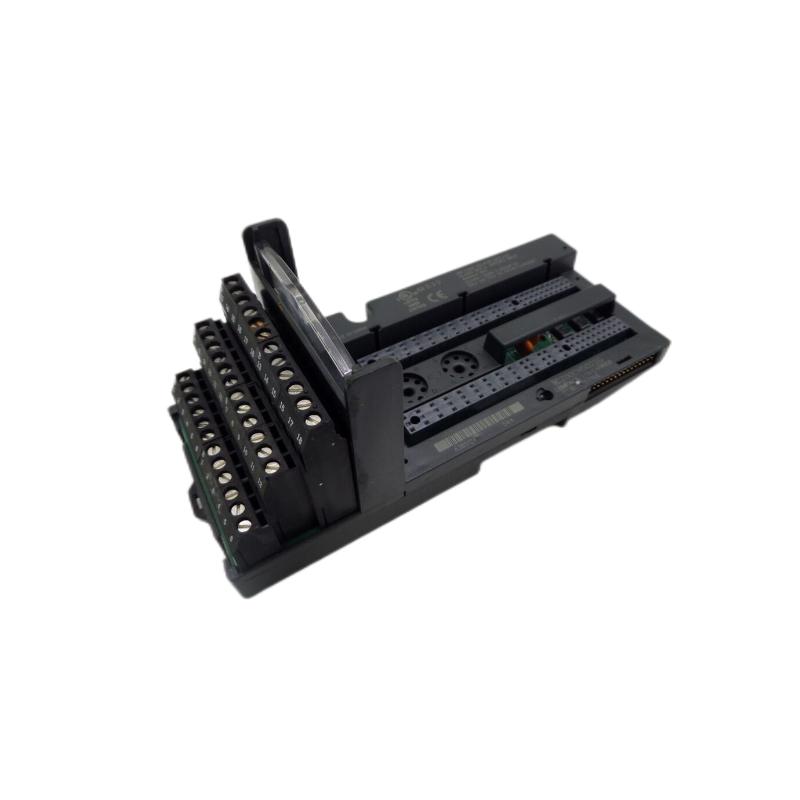

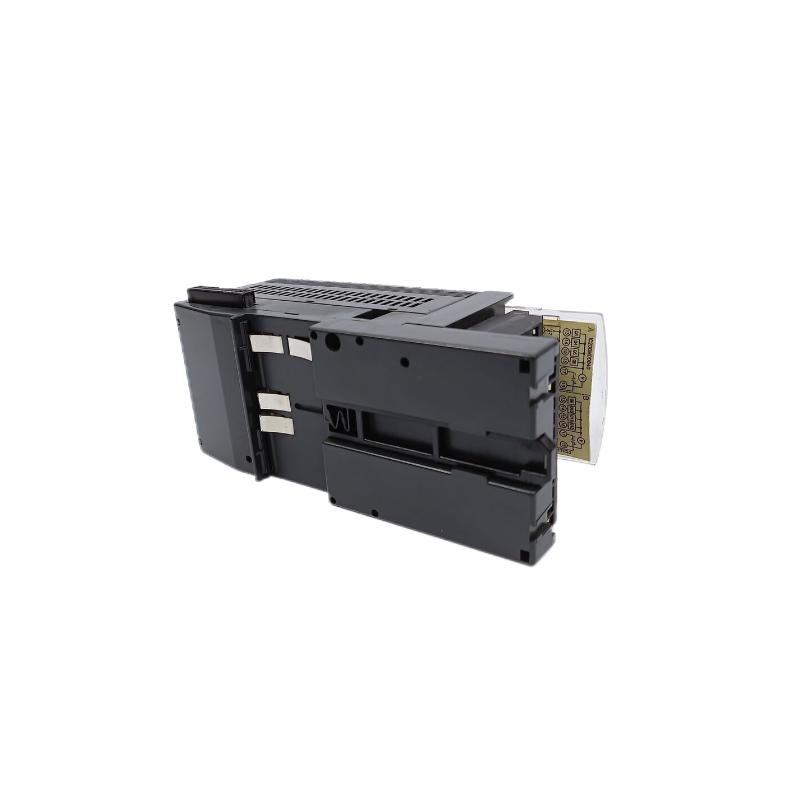

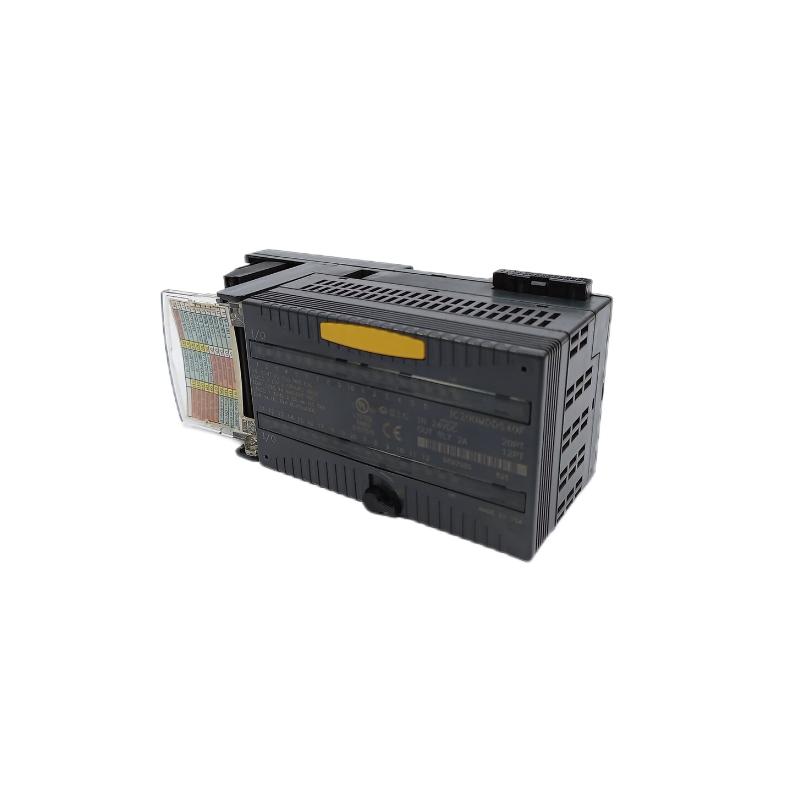

The GE IC200CHS022G is a compact box‑style I/O carrier module in the VersaMax series. It provides mounting, field wiring terminals, and backplane interface support for a single companion I/O module, enabling efficient system integration in industrial automation settings.

General Information

Part Number: IC200CHS022G
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: VersaMax I/O Carriers
Type: Compact I/O Carrier / Mounting Base & Field Terminal Module
Function: Provides field wiring interface and backplane connectivity for a companion I/O module, supporting I/O termination and system bus connection.

Power Specifications

The carrier uses the system rack’s shared power and does not have a dedicated supply. Field wiring terminals are rated to handle up to 2 A per point and up to 8 A on the power/ground segment.

Communication & Interface

Interface Type: Backplane connection compatible with VersaMax system bus and I/O modules.
Field Wiring: IEC box‑style terminals arranged in a two‑row configuration (A1–A18, B1–B18) providing up to 32 I/O points plus common/power.
Mounting: Designed for DIN‑rail mounting and supports carrier‑to‑carrier stacking without the need for additional cables.

Environmental

Operating Temperature: 0 °C to +60 °C typical (application dependent)
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in appropriate enclosure
Cooling: Natural convection; ensure ventilation when multiple carriers are installed in series.

Dimensions & Weight

Dimensions (L × W × H): 66.8  × 133.4  × 70 mm
Weight: Approx. 0.20 kg
