Product Introduction：

Overview

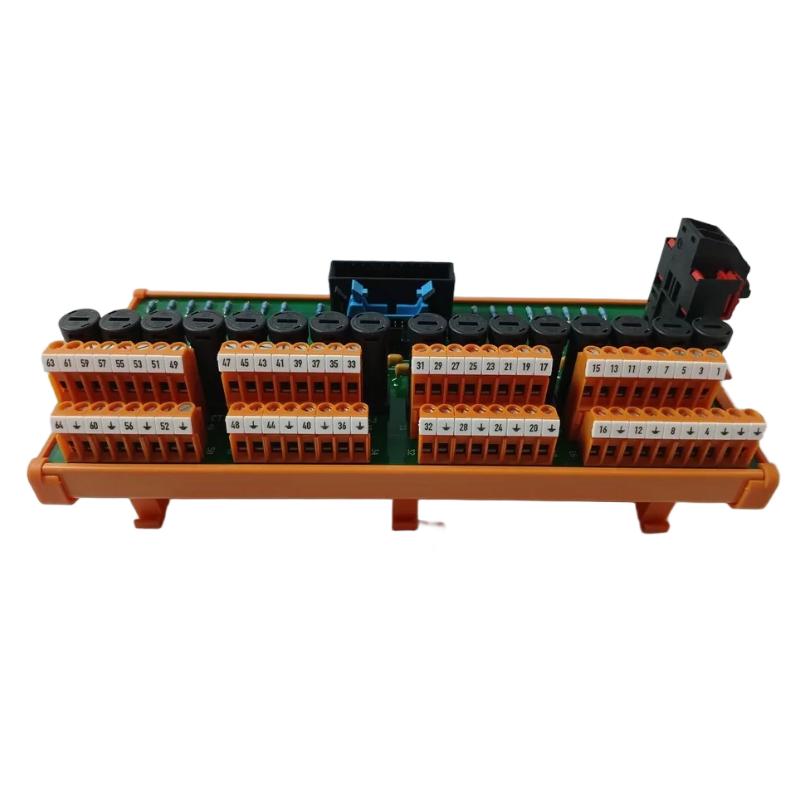

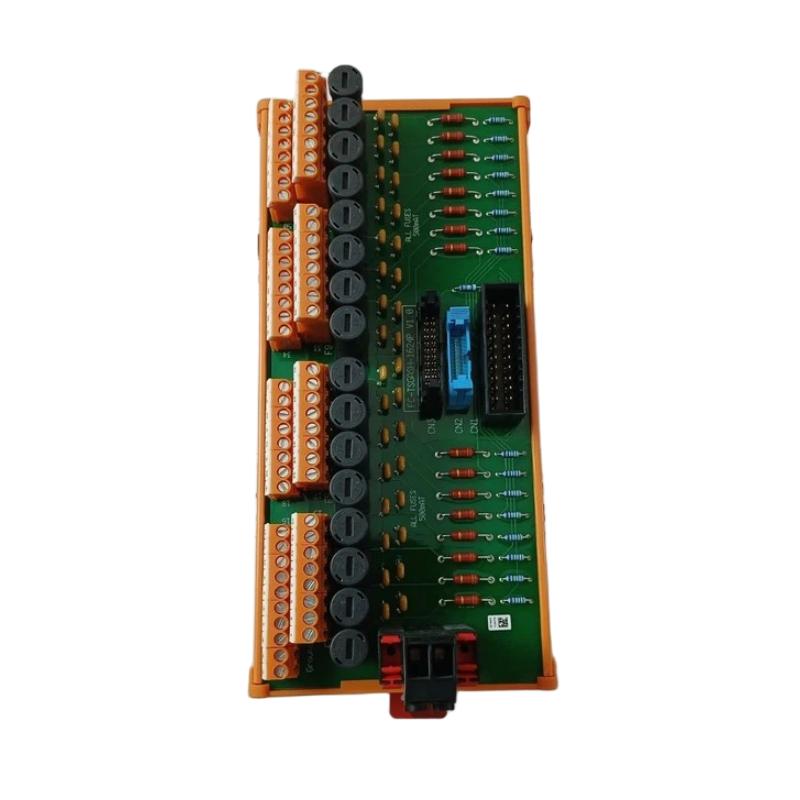

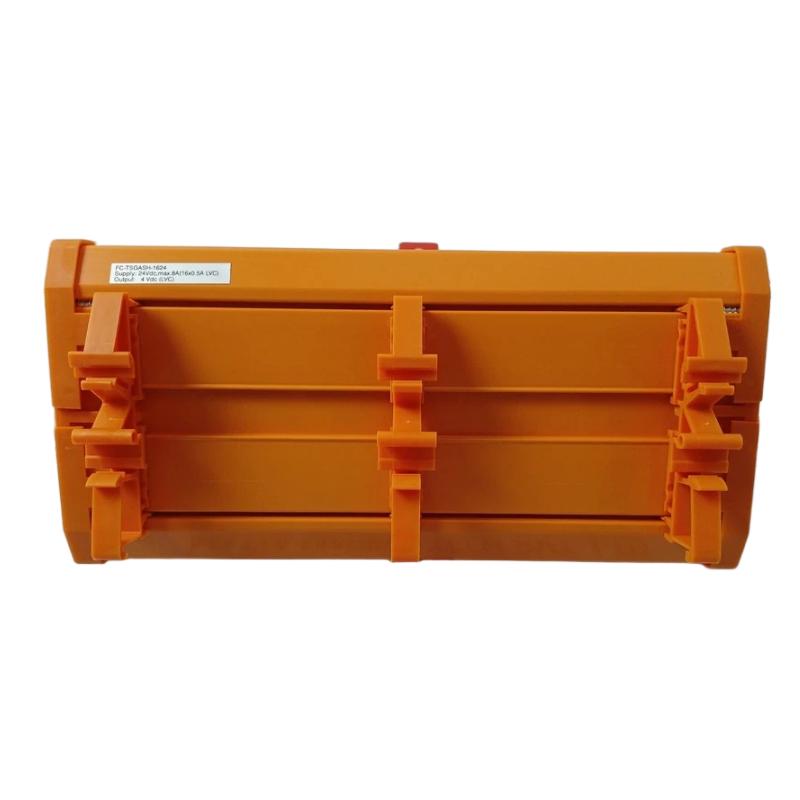

The Honeywell FC-TSGASH-1624P is a Field Termination Assembly (FTA) module used in Honeywell Safety Manager systems. It connects field gas or flame detectors (HART-compatible) to high-density analog input modules, providing safe signal conversion and reliable monitoring.

General Information
Part Number: FC-TSGASH-1624P
Manufacturer: Honeywell
Type: Field Termination Assembly Module
Channels: 16 analog input channels with common 0 V
HART Support: All 16 channels support HART communication
Mounting: Snap-in DIN rail installation
Cable Interface: Uses system interconnect cables

Power Specifications
Supply Voltage: 24 V DC external power
No-load Current: ~2.5 mA
Input Current Range (per channel): 0–25 mA
Input Resistance: 500 Ω ±5%

Signal Conversion & Output
Analog Signals: Converts detector signals to standard analog input for control modules
Digital Communication: Supports HART bi-directional communication for device diagnostics
Alarm Integration: Provides status and fault signals to the Safety Manager system

Environmental
Operating Temperature: 0 to 50 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment

Dimensions & Weight
Dimensions (L × W × H): 210 × 150 × 45 mm
Weight: ~3.0 kg
