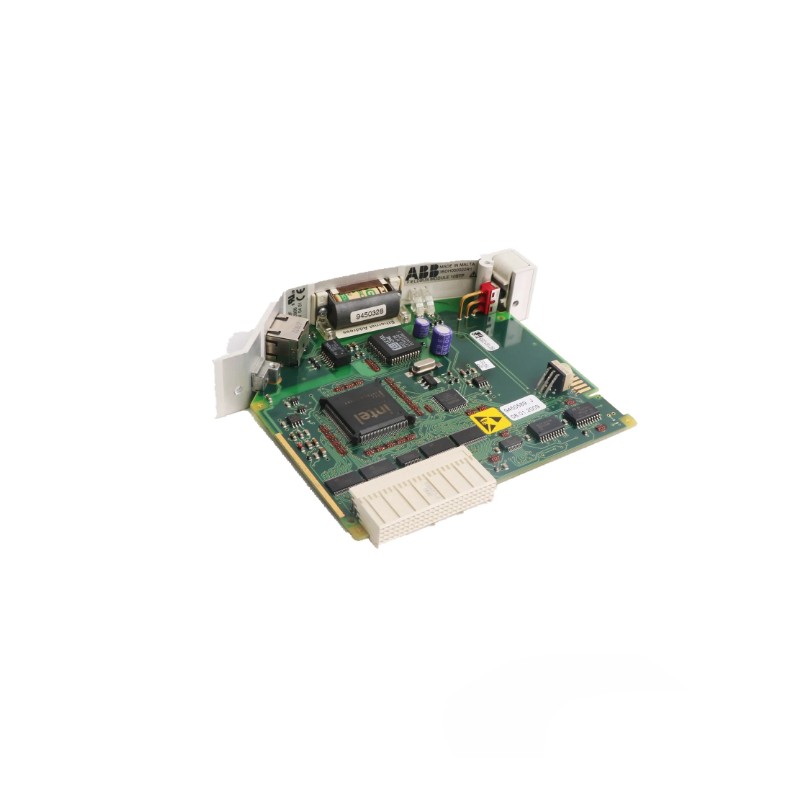

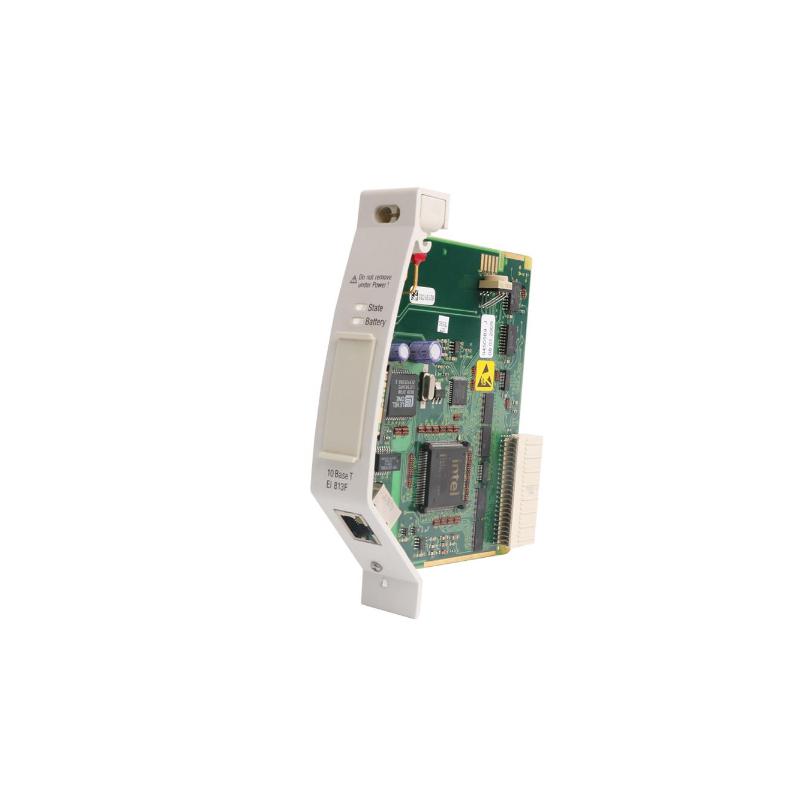

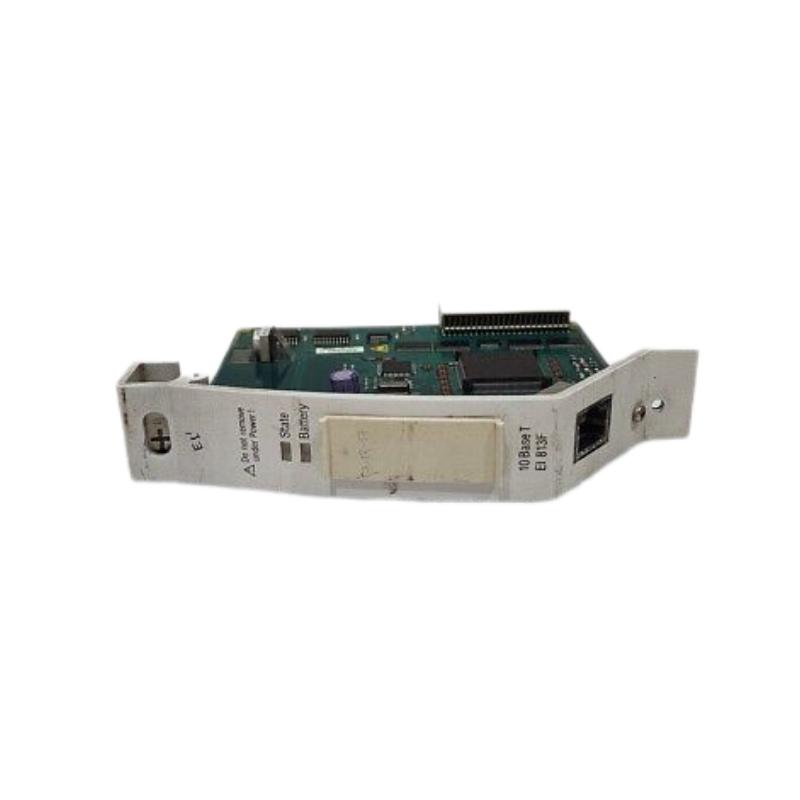

ABB EI813F 3BDH000022R1 | Energy Interface Module 12-Month Warranty Unbelievable Prices!

Brand：ABB PLC

Item No.：ABB EI813F 3BDH000022R1

Product origin：Sweden

Dimensions:125 × 155 × 28 mm

Weight:0.15 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The ABB EI813F 3BDH000022R1 is an energy interface module designed for ABB automation and control systems. It provides precise monitoring and transmission of energy signals from field devices, supporting accurate data acquisition and reliable system operation in industrial environments.

General Information

Part Number: 3BDH000022R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: EI (Energy Interface)

Type: Energy Interface Module

Mounting: Rack or panel installation

Function: Measures, monitors, and transmits energy-related signals to the control system

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: ≤ 5 W

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power, communication, and fault status

Communication & Interface

Interface Type: Digital and analog signal interface

System Connection: Connects to ABB Advant / Master automation backplane

Diagnostics: LED indicators for operational status and fault detection

Compatibility: Compatible with ABB energy monitoring and control modules

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 125 × 155 × 28 mm

Weight: 0.15 kg

Reliable stock of authentic brand-new items, with continuous customer support for quotations.

This product is in stock, with fast delivery, and project-based procurement supports special price assistance.
