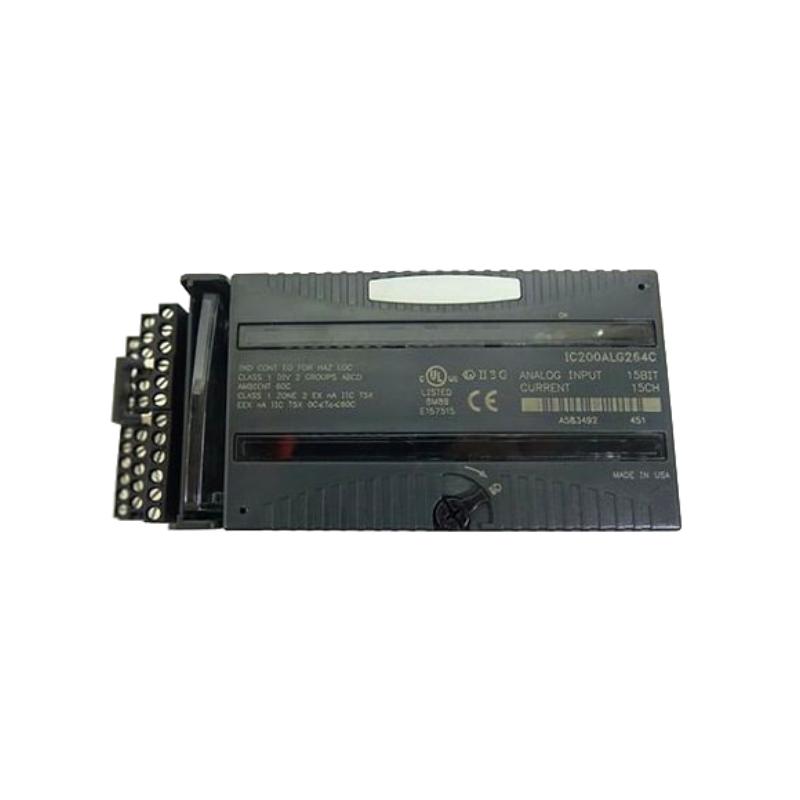

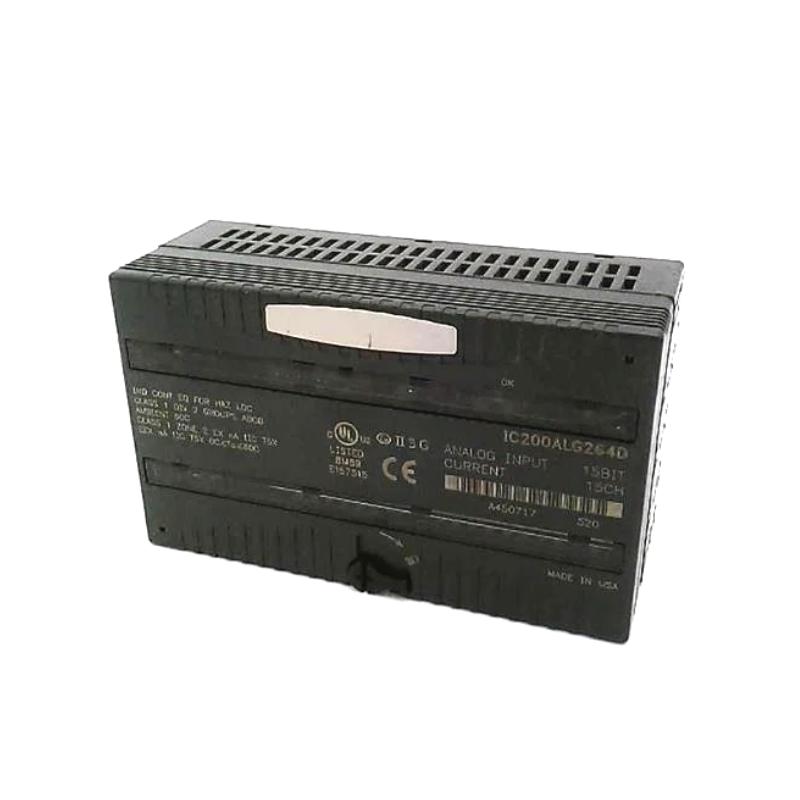

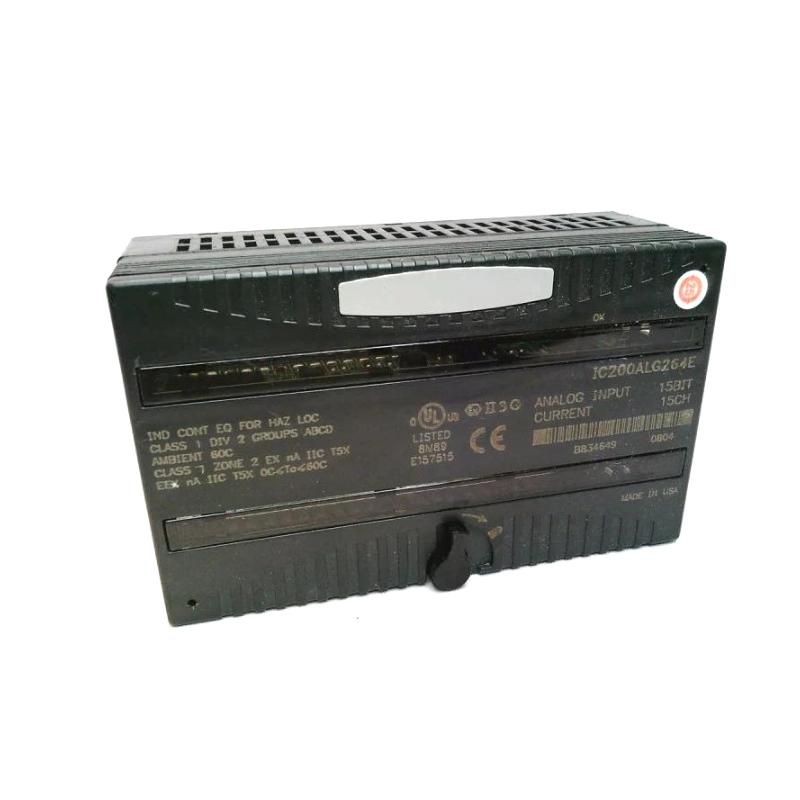

GE IC200ALG264L | Analog Input Module Hot Items 100% New

Brand：GE Fanuc PLC

Item No.：GE IC200ALG264L

Product origin：USA

Dimensions:110  × 66.8  × 50 mm

Weight:0.23 kg

Compliant import, support for cooperative testing, and fast response to after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview
The GE IC200ALG264L is a high‑density analog input module in the VersaMax I/O family. It supports 15 single‑ended current input channels, configurable for either 4–20 mA or 0–20 mA ranges, making it suitable for compact control system installations.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC200ALG264L
Product Type: Analog Input Module (Current)
Application: Industrial control systems requiring high‑channel‑count current measurement with 15‑bit resolution

Power Specifications
Supply Voltage: 5 V DC backplane power
Current Consumption: Maximum 100 mA @ 5 V DC
Input Channels: 15 single‑ended current input channels
Selectable Input Range: 4–20 mA (default) or 0–20 mA (jumper configured)
Protection & Diagnostics: Reports Loss of Internal Power fault; open‑wire detection in 4–20 mA mode

Communication & Interface
Channels: 15 single‑ended current inputs, one channel group
Conversion Resolution: 15‑bit (≈0.5 µA per count for 4–20 mA range)
Update Rate: 7.5 ms typical
Interface: VersaMax backplane connector for system integration
Diagnostics: OK LED for module status, fault reporting to host CPU

Environmental
Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack or module carrier in industrial control cabinet

Dimensions & Weight
Dimensions (W × H × D): Approx. 110  × 66.8  × 50 mm
Weight: Approx. 0.23 kg
