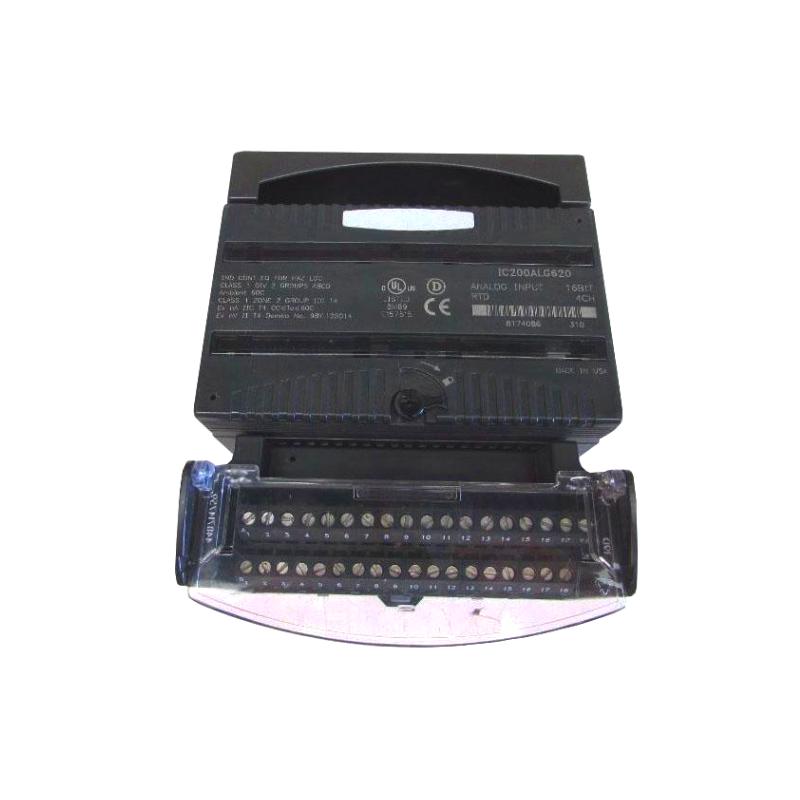

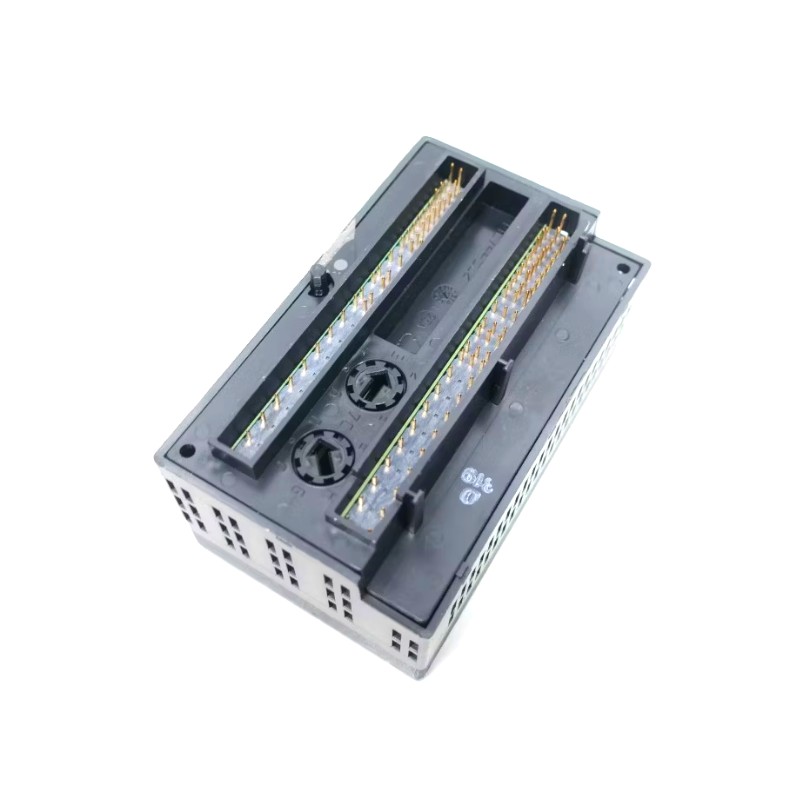

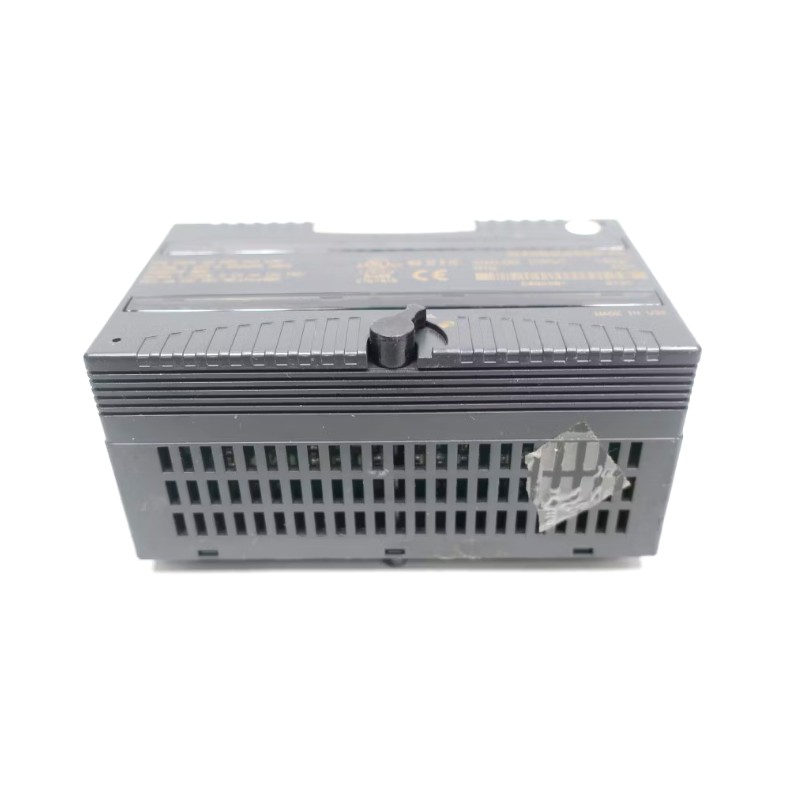

GE IC200ALG620‑EC | 4‑Channel RTD Analog Input Module Original 100% New

Brand：GE Fanuc PLC

Item No.：GE IC200ALG620-EC

Product origin：USA

Dimensions:110 × 66.8 × 50 mm

Weight:0.27 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

Large stock, diverse series, adapt to different working conditions, welcome to consult!

Product Introduction：

Overview
The GE IC200ALG620‑EC is a high‑resolution analog input module designed for RTD (Resistance Temperature Detector) input within the VersaMax control system. It supports four independent RTD channels with 16‑bit resolution for precision temperature measurement.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC200ALG620‑EC
Product Type: RTD Analog Input Module
Application: Industrial process control systems requiring accurate RTD temperature measurement

Power Specifications
Supply Voltage: +5 V DC and +3.3 V DC from system backplane
Current Consumption: Up to 125 mA on 5 V bus and 125 mA on 3.3 V bus
External Loop Power: None required; module provides excitation current for RTDs

Communication & Interface
Input Channels: 4 channels supporting 3‑wire or 4‑wire RTD input (platinum, copper, nickel, nickel/iron)
Selectable Input Ranges: 0‑500 Ω or 0‑3000 Ω; output selectable in tenths of ohms or tenths of degrees
Update Rate: Approximately 210 ms per channel at 60 Hz main frequency (approx. 230 ms at 50 Hz)
Diagnostics: Reports over‑range, under‑range, open‑wire, input short, wiring fault
LED Indicators: OK status LED (green for normal, amber for fault)

Environmental
Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack or carrier‑mounted within industrial control cabinets
Isolation: User input to logic and frame ground isolated 250 V AC continuous, group‑to‑group isolated, channel‑to‑channel integrity

Dimensions & Weight
Dimensions (L × W × H): Approx. 110 × 66.8 × 50 mm
Weight: Approx. 0.27 kg
