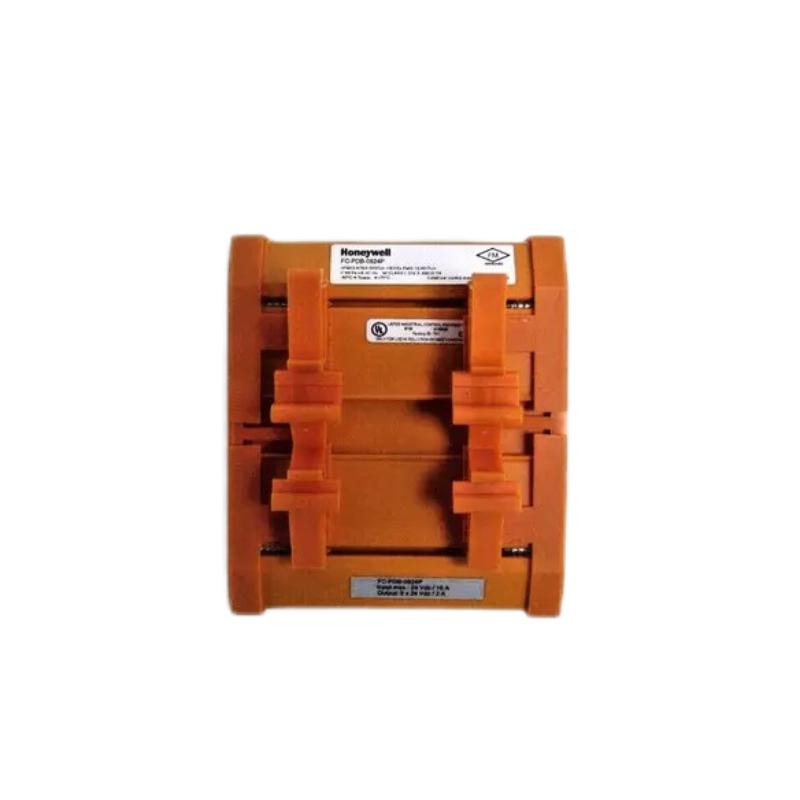

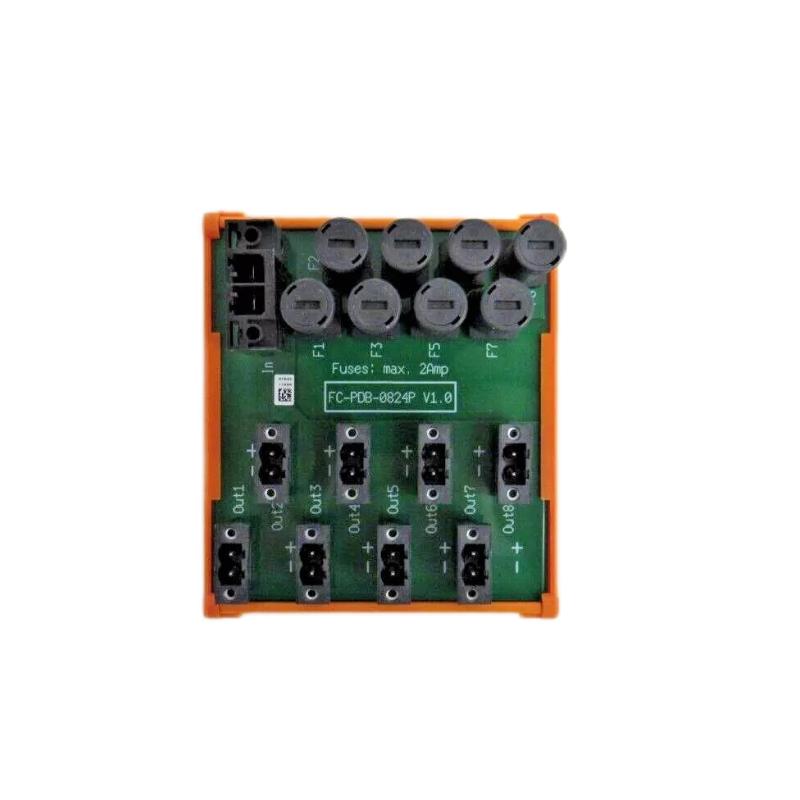

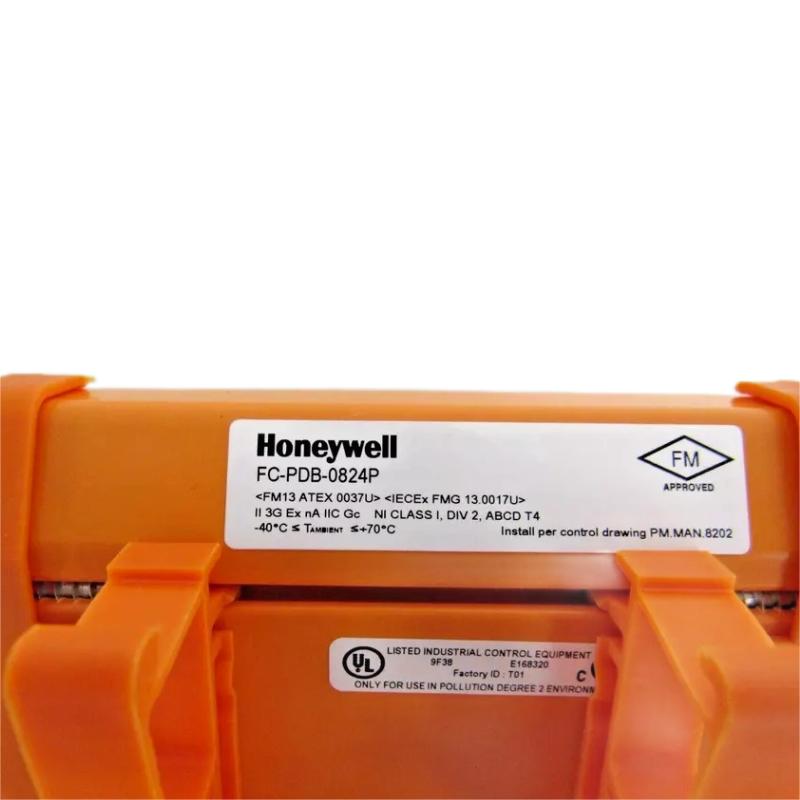

Honeywell FC-PDB-0824P | Power Distribution Board Recommended products Original

Brand：Honeywell DCS

Item No.：Honeywell FC-PDB-0824P

Product origin：USA

Dimensions:210 × 150 × 45 mm

Weight:2.5 kg

Formal channels, complete test instructions, and responsive services

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

The Honeywell FC-PDB-0824P is a power distribution board designed for use in Honeywell Experion and related control systems. It provides reliable DC power distribution to multiple system modules, ensuring stable operation, fault protection, and monitoring across the control network.

General Information

Part Number: FC-PDB-0824P
Manufacturer: Honeywell
Series: FC (Field/Control Power Modules)
Type: Power Distribution Board
Mounting: Rack or chassis installation within control panels
Technology: Power routing, surge protection, fault detection, load monitoring

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: ≤ 20 W (typical)
Input: Main DC supply from system power source
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for power status, fault, and output monitoring

Communication & Interface

Field Interface: Provides isolated DC power to control and I/O modules
Bus Coupler Role: Integrates power distribution across system modules
Diagnostics: Power fault detection, load monitoring, and status reporting
Operator Interface: LED indicators for power and fault
Reset Features: Supports soft and hardware reset via system controller

I/O & Channels

Power Outputs: Multiple isolated DC outputs to connected modules
External Load Support: Supports additional field devices within rated limits

Environmental

Operating Temperature: 0 to 55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 210 × 150 × 45 mm
Weight: ~ 2.5 kg

We provide verified new original parts, with full inventory and reliable service.

The product has a quick delivery response, a short inventory cycle, and a certain price advantage. Large quantities support discounts.
