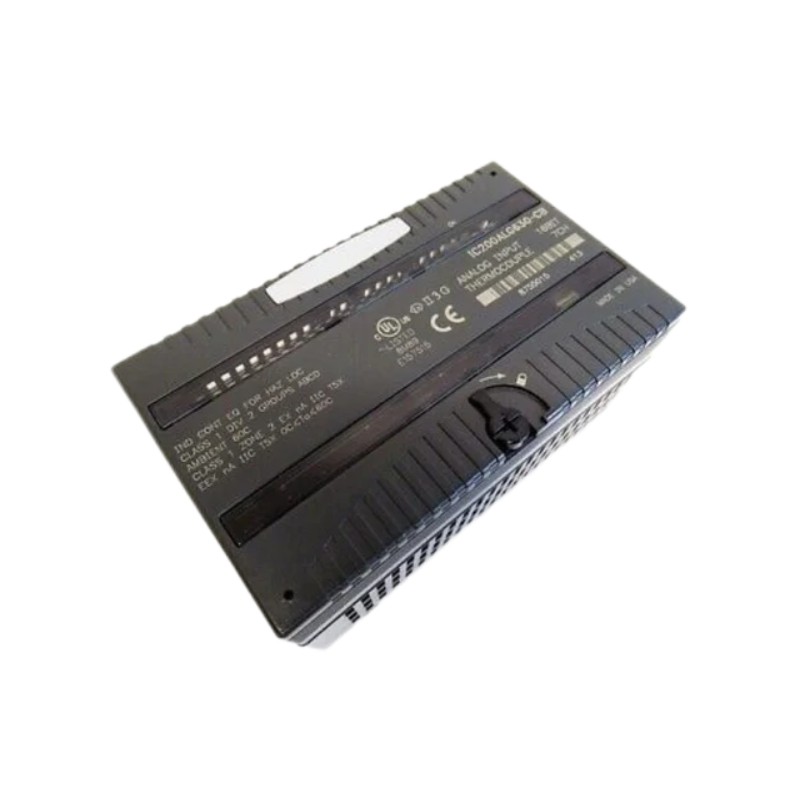

GE IC200ALG630‑BB | Thermocouple Analog Input Module 100% New Trusted supplier

Brand：GE Fanuc PLC

Item No.：GE IC200ALG630-BB

Product origin：USA

Dimensions:110 × 66.8 × 50 mm

Weight:0.17 kg

Regular channels, complete test instructions, and responsive services

Complete models, inventory is updated in real time, welcome to get the latest list!

Product Introduction：

Overview
The GE IC200ALG630‑BB is a high‑precision thermocouple input module from the VersaMax series. It accepts up to seven independent thermocouple or millivolt signals and provides 16‑bit resolution analog conversion for accurate temperature measurement and monitoring.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC200ALG630‑BB
Product Type: Thermocouple/Millivolt Analog Input Module
Application: Industrial automation systems requiring precise thermocouple or millivolt signal measurement and processing

Power Specifications
Supply Voltage: +5 V DC and +3.3 V DC from the backplane
Power Consumption: Max approx. 125 mA on each bus (5 V and 3.3 V)
Protection: Built‑in diagnostics for open circuit, over‑range and under‑range conditions

Communication & Interface
Input Channels: 7 independent inputs supporting thermocouples (J, K, T, S, R) and millivolt ranges
Resolution: 16‑bit (15 bits plus sign)
Update Rate: Approx. 60 ms per channel at 60 Hz frequency; approx. 70 ms at 50 Hz
Diagnostics: Channel level alarm limits, open thermocouple detection, cold junction compensation options

Environmental
Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Designed for VersaMax I/O carrier or rack in industrial control cabinet
Isolation: User input to logic and frame ground isolation rated 250 VAC continuous; 1500 VAC for 1 minute

Dimensions & Weight
Dimensions (L × W × H): Approx. 110 × 66.8 × 50 mm
Weight: Approx. 0.17 kg

Authentic brand-new products are always available, and our customer service team is ready around the clock.

The product supports project procurement, fast delivery, high price matching, and discounts can be coordinated for bulk orders.
