Honeywell FS‑TDOL‑07120 | Digital Output Trusted supplier Original

Brand：Honeywell DCS

Item No.：Honeywell FS-TDOL-07120

Product origin：USA

Dimensions:240 × 109 × 71 mm

Weight:1 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

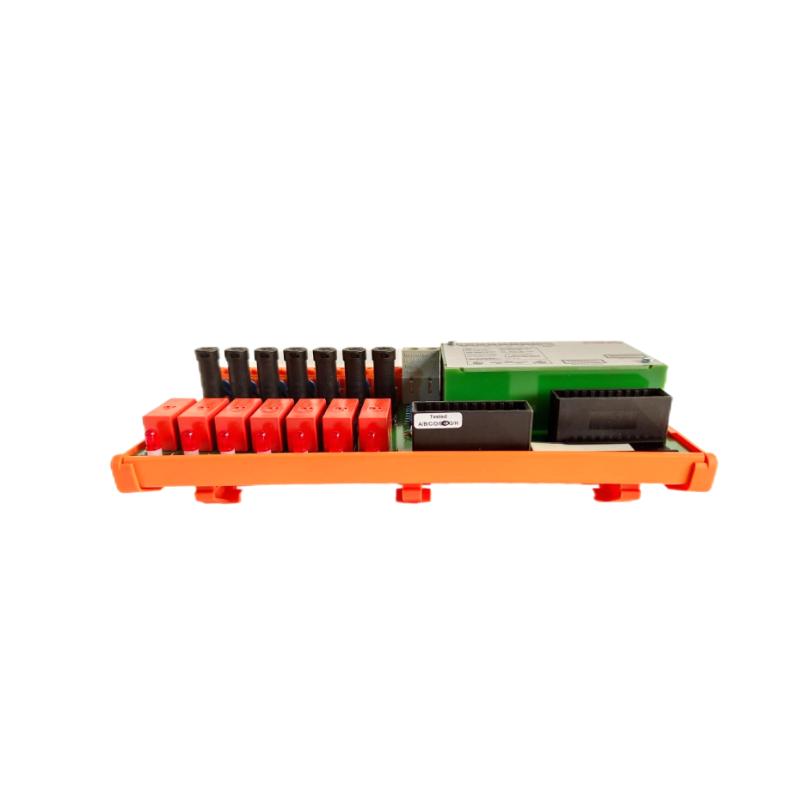

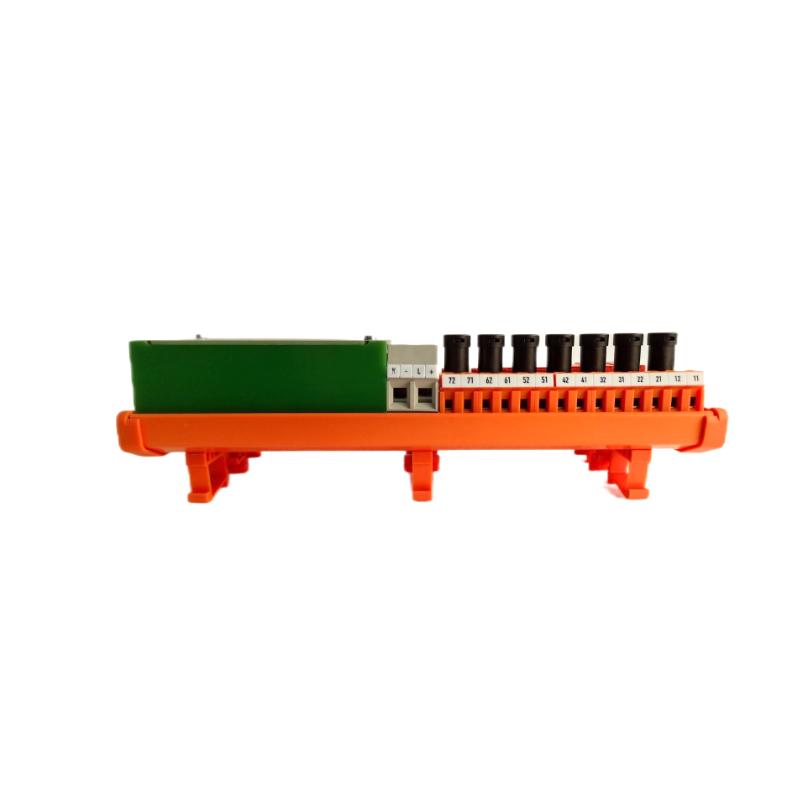

The Honeywell FS‑TDOL‑07120 is a 7‑channel digital output field termination assembly designed for loop‑monitored outputs operating at 120 V AC or 120 V DC. It serves as an interface between safe logic output modules and field loads, offering fault detection, load monitoring, and secure control in safety instrumented systems.

General Information
Brand: Honeywell
Country of Origin: United States
Model: FS‑TDOL‑07120
Series: Safety Manager I/O Modules
Product Type: Loop‑Monitored Digital Output FTA (Field Termination Assembly)
Application: Safety instrumented systems (SIS), industrial control, field device output interface for loads requiring 120 V

Power Specifications
Output Supply Voltage: 120 V AC or 120 V DC nominal (±20%)
Number of Channels: 7 fused relay contact outputs
Maximum Load per Channel: Up to approx. 240 VA (AC) or 150 W (DC)
Max Current per Channel: Up to approx. 2 A
Protection Features: Channel fuse protection, line‑monitoring, loop fault detection

Communication & Interface
Channel Type: Digital relay outputs with loop‑monitoring per output channel
Interface: Connects to safe digital output module (e.g., SDO‑0824) and monitors wiring to field device loads
Diagnostics: Line fault detection (open/short), LED indication per channel, integrated with safety logic for fault response

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Mounted in indoor control cabinet; designed for use in safety rated cabinets and industrial automation environments

Dimensions & Weight
Dimensions (L × W × H): 240 × 109 × 71 mm
Weight: Approx. 1.0 kg

Authentic new items, available with continuous customer communication.

The product information is complete, the quotation structure is reasonable, the outbound response is fast, and bargaining communication is welcome for large quantities.
