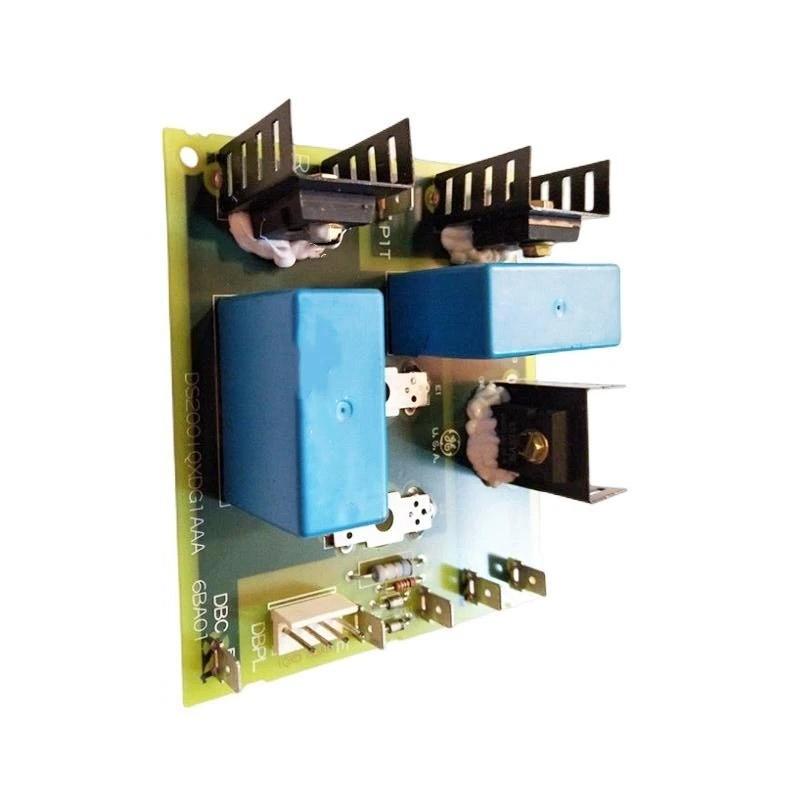

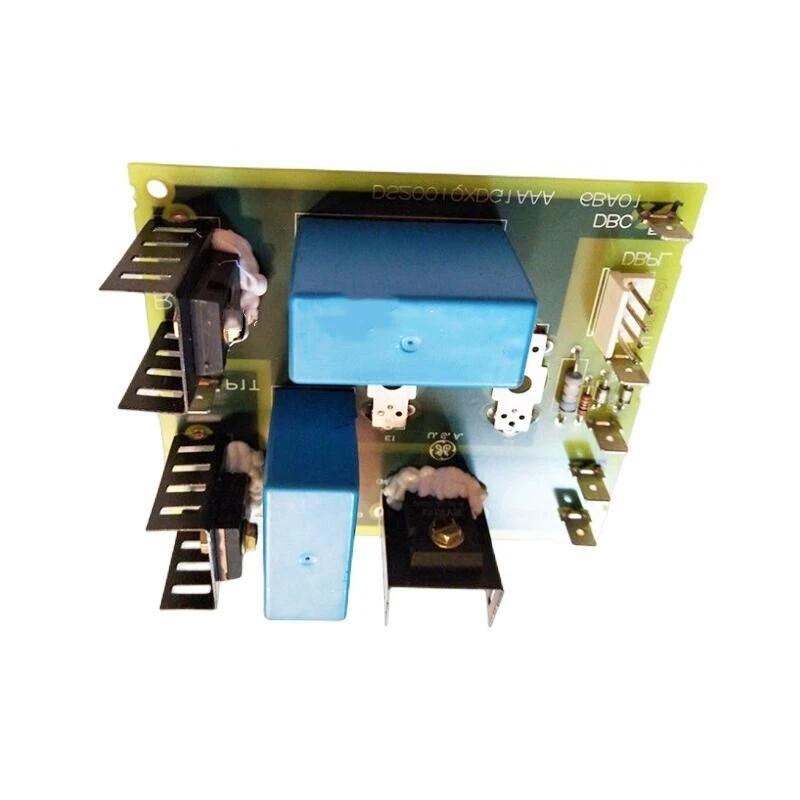

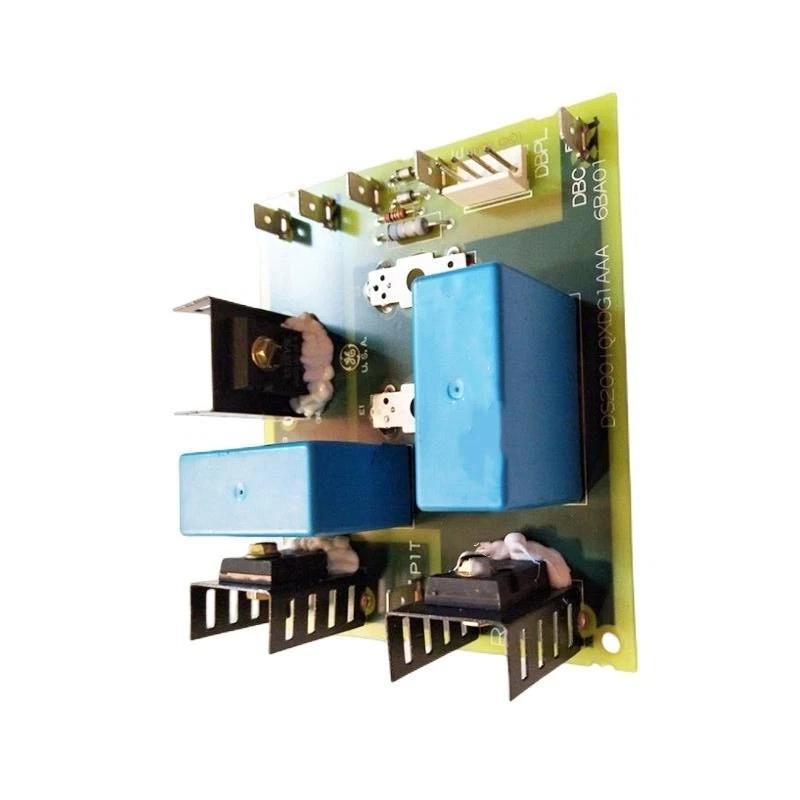

GE DS200IQXDG1AAA | Inverter Snubber Card Recommended products 12-Month Warranty

Brand：GE Fanuc PLC

Item No.：GE DS200IQXDG1AAA

Product origin：USA

Dimensions:159 mm × 127 mm

Weight:0.0408 kg

Original source, data supports testing content, and after-sales processing is efficient

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The GE DS200IQXDG1AAA is an inverter snubber card used in GE Mark V and EX2000 drive and turbine control systems. Its primary function is to absorb and suppress switching transients generated by power devices such as IGBTs, protecting the inverter circuitry and ensuring stable operation.

General Information

Part Number: DS200IQXDG1AAA

Manufacturer: GE (General Electric)

Series: Mark V / EX2000

Type: Inverter Snubber Card

Mounting: Installed inside the drive or turbine control cabinet

Technology: Snubber capacitors, resistive damping network, transient suppression components

Power & Electrical Characteristics

Voltage Handling: Designed to suppress high-frequency inverter voltage spikes

Circuit Function: Provides energy absorption during switching events

PCB Coating: Standard coating type

Revisions: Functional Revision D-series (depending on batch)

Communication & Interface

Connections: Multiple terminal points (E-series terminals) for integration within inverter power circuits

Interface Role: Works in conjunction with IGBT or power bridge circuitry

Diagnostics: Passive board; monitored indirectly through system behavior

Operator Interface: No LEDs or switches

I/O & Channels

Input/Output: Power transient absorption path only

External Load Support: None (not an I/O board; purely protection circuitry)

Environmental

Operating Temperature: Designed for industrial control cabinet environments

Humidity: Suitable for standard non-condensing industrial conditions

Protection Rating: Depends on cabinet; PCB itself is open-frame

Dimensions & Weight

Dimensions (Approx.): 159 mm × 127 mm

Weight: 0.0408 kg

Stock includes brand-new originals, 24/7 customer service available, transparent pricing provided.

Imported sources, complete supporting information, short delivery cycle, and price support strategies for batch transactions.
