Honeywell FS‑SAO‑0220M | Analog Output Module 30-Day Returns 12-Month Warranty

Brand：Honeywell DCS

Item No.：Honeywell FS-SDI-1624

Product origin：USA

Dimensions:22 x 124 x 126 mm

Weight:0.3 kg

Original overseas introduction, testing assistance instructions support, stable and reliable service

Flexible stock of various models, support for rapid response, welcome to cooperate and communicate!

Product Introduction：

Overview

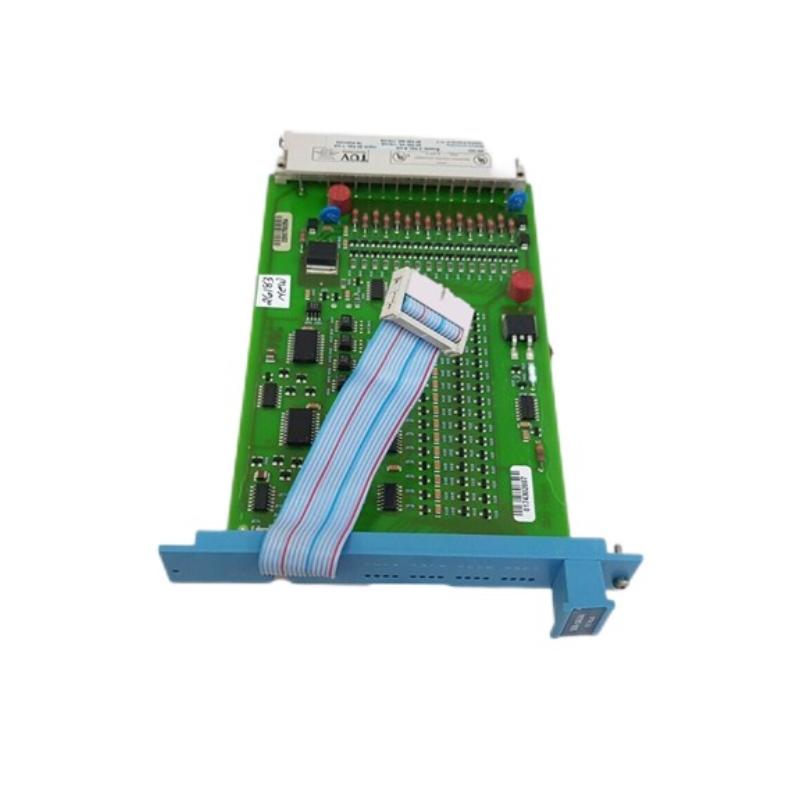

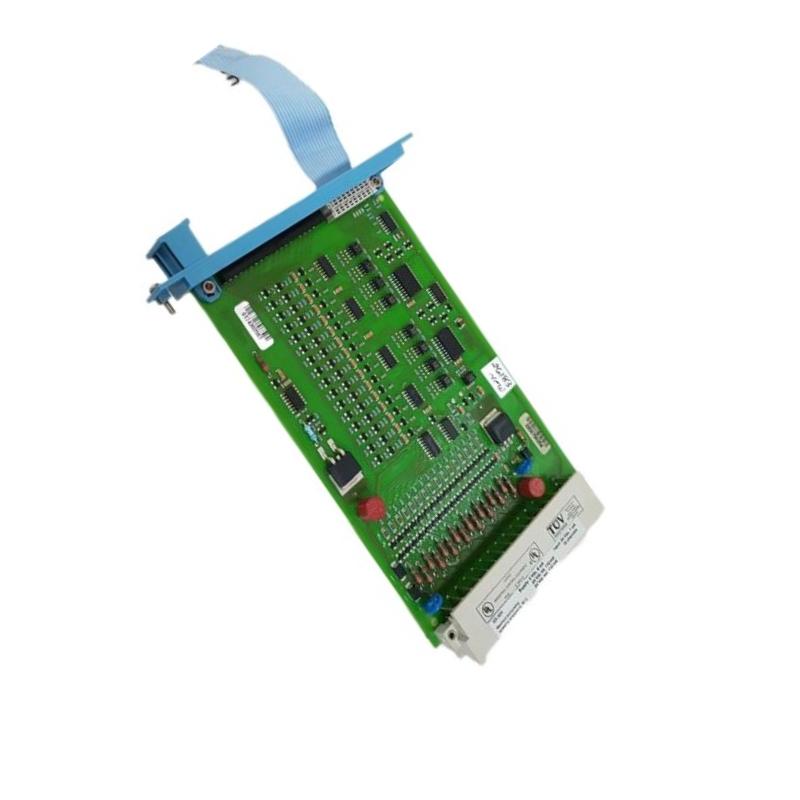

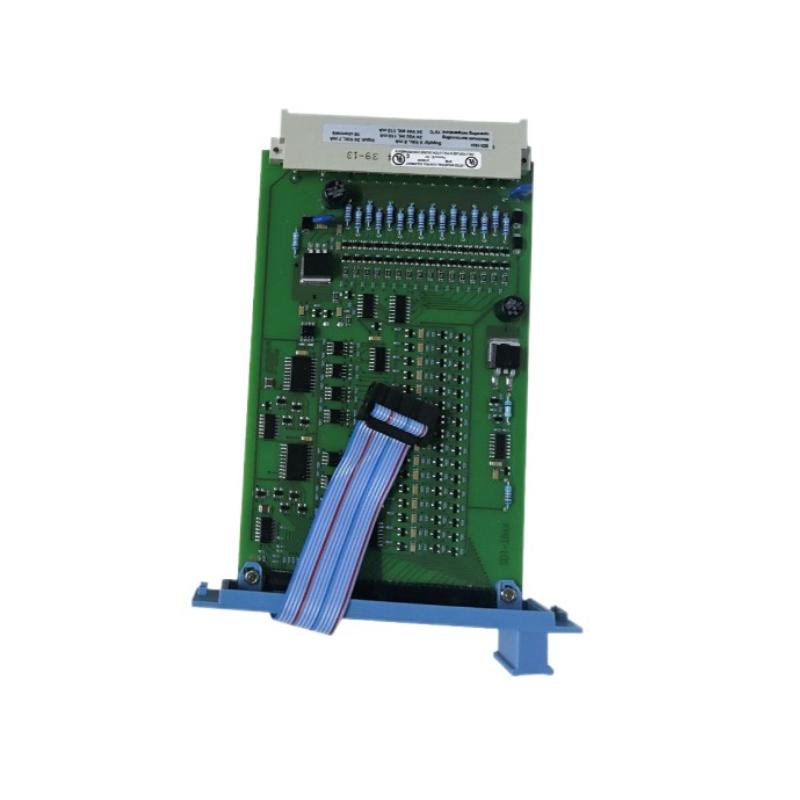

The Honeywell FS‑SDI‑1624 is a safety‑rated digital input module designed for use in Honeywell Safety Manager systems. It features sixteen 24 V DC digital input channels and incorporates fail‑to‑safe design and built‑in diagnostics, making it suitable for safety instrumented applications where reliability and system integrity are critical.

General Information
Brand: Honeywell
Country of Origin: United States
Model Number: FS‑SDI‑1624
Series: Safety Manager I/O Modules
Product Type: Digital Input Module (Safe)
Application: Safety instrumented systems (SIS), process automation, field device input to safety controllers

Power Specifications
Supply Voltage: 5 V DC for logic section (approx. 8 mA)
Field Supply Voltage: 24 V DC internal supply (approx. 110 mA)
External Supply: 24 V DC external supply capability (approx. 110 mA)
Protection Features: Short‑circuit and overload detection on 24 V output, current limiting for field supply

Communication & Interface
Number of Channels: 16 digital input channels
Input Type: 24 V DC input signals
Input Conditions: Input HIGH > 15 V DC; Input LOW < 9 V DC with current < 2 mA
Input Delay: Typically ~10 ms
Output Interface: 24 V DC electronic output for field input supply (solid state)
Diagnostics: Self‑test coverage for logic, channel integrity, and cross‑talk detection

Environmental
Operating Temperature: −40 °C to +70 °C
Storage Temperature: −55 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack‑mounted in industrial control cabinet
Certifications: CE, TUV, UL, CSA, FM approvals

Dimensions & Weight
Dimension: 22 x 124 x 126 mm
Weight: Approx. 0.3 kg
