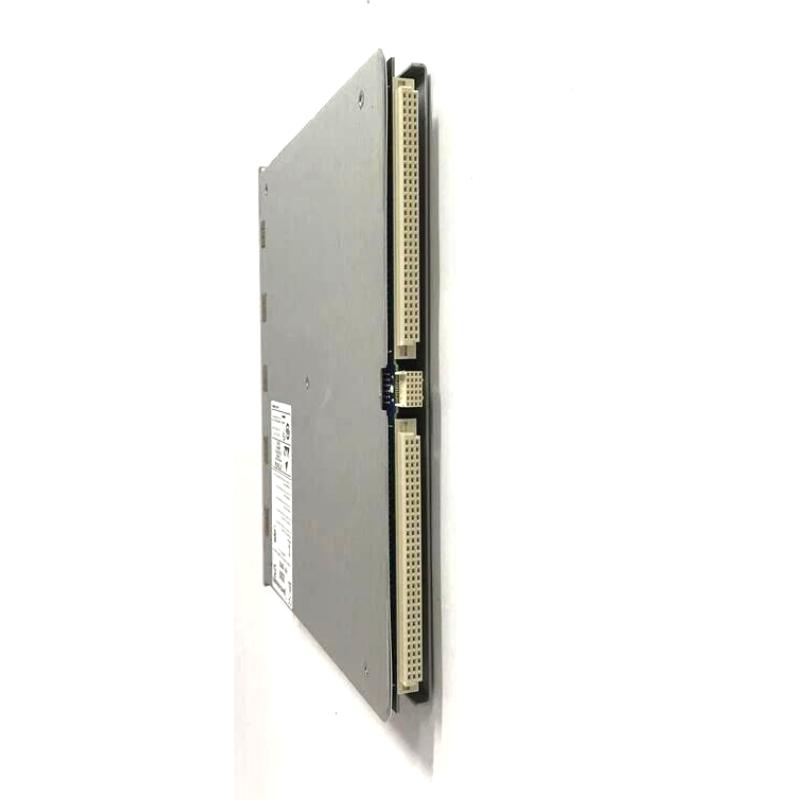

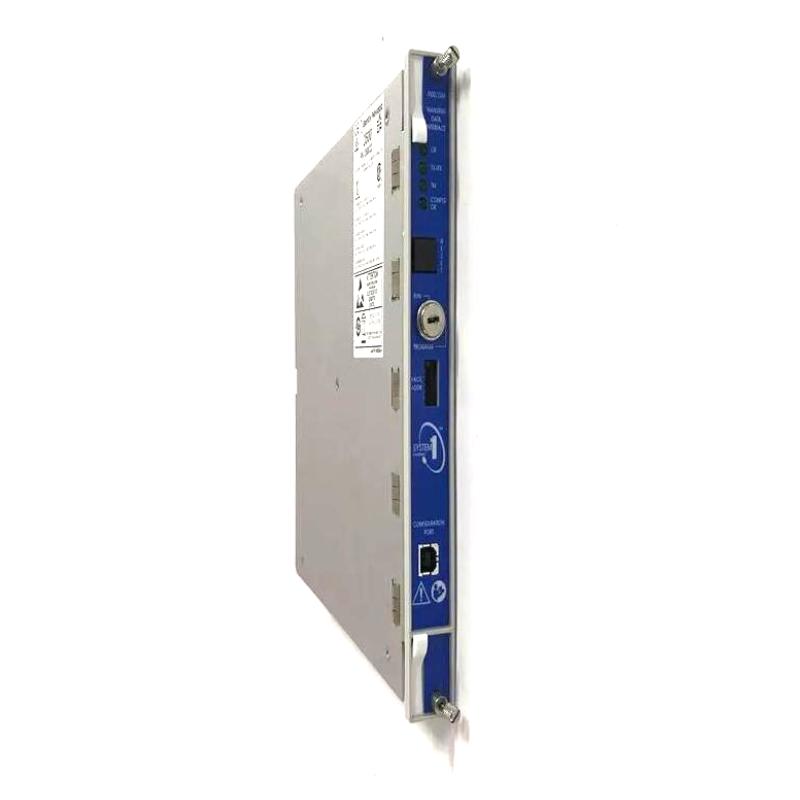

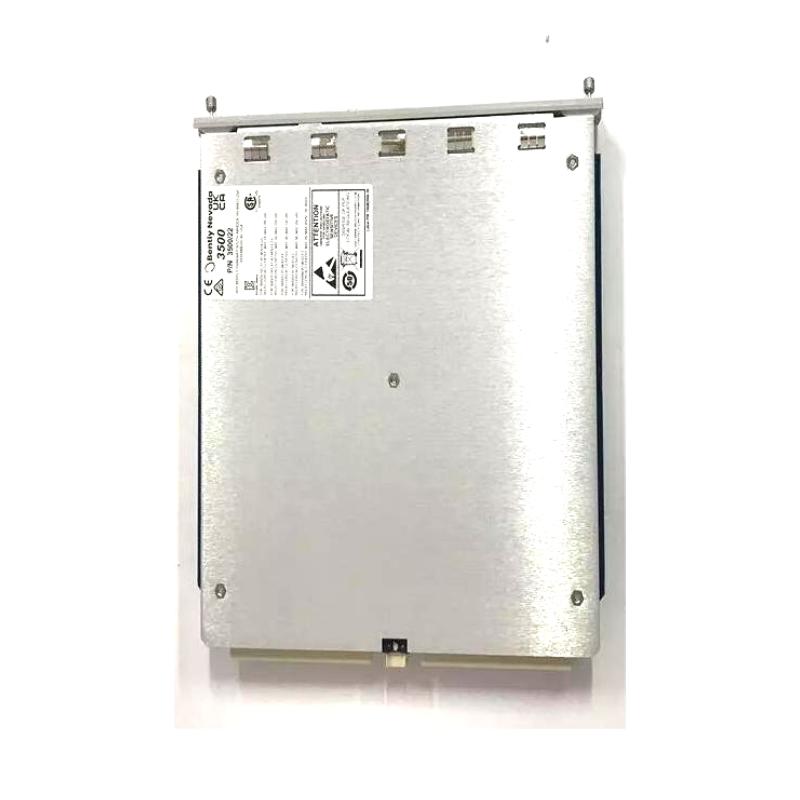

Bently Nevada 3500/22 288055‑01 | Transient Data Interface Module Hot Items 30-Day Returns！

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/22 288055-01

Product origin：USA

Dimensions:241.3 x 24.4 x 241.8 mm

Weight:0.91 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

A wide range of models in stock, supports quick docking of procurement needs, welcome to inquire for details!

Product Introduction：

Overview
The Bently Nevada 3500/22 288055‑01 is a Transient Data Interface (TDI) module used in the 3500 series machinery protection system. It captures steady‑state and transient waveform data and serves as the communication interface between the rack and host systems.

General Information
Part Number: 288055‑01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Type: Transient Data Interface Module
Mounting: Full‑height rack slot (typically slot 1) in the 3500 system
Technology: Integrates rack interface and high‑speed data transfer functions

Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: ~10.5 W
Protection: Reverse‑polarity and transient‑voltage protection built‑in

Communication & Interface
Interface: Backplane connection and external Ethernet/fiber‑optic link
Functions: Captures both static and dynamic (waveform) monitoring data for host system transfer
Diagnostics: Module status, communication link monitoring, fault indication

Environmental
Operating Temperature: −30 °C to +65 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Standard industrial control cabinet within machinery protection systems

Dimensions & Weight
Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: 0.91 kg
