Triconex 4211 | Remote Extender Module Quality Selection 12-Month Warranty

Brand：Invensys Triconex

Item No.：Triconex 4211

Product origin：USA

Dimensions:170 × 100 × 30 mm

Weight:1.5 kg

Original import channel source, support for testing instructions, worry-free after-sales

A wide range of spot models supports fast docking of procurement needs, welcome to inquire for details!

Product Introduction：

Overview

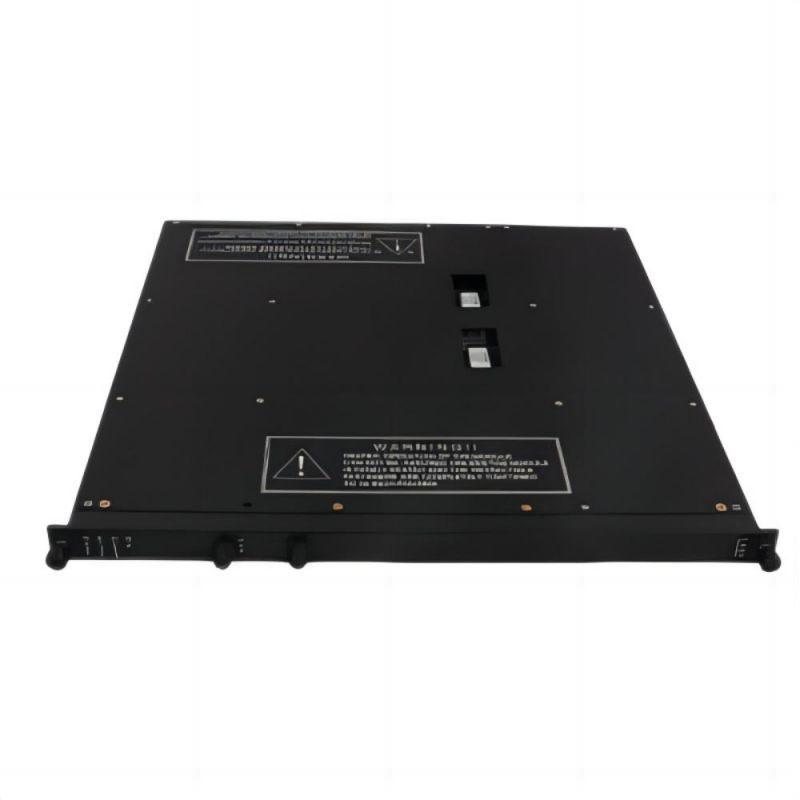

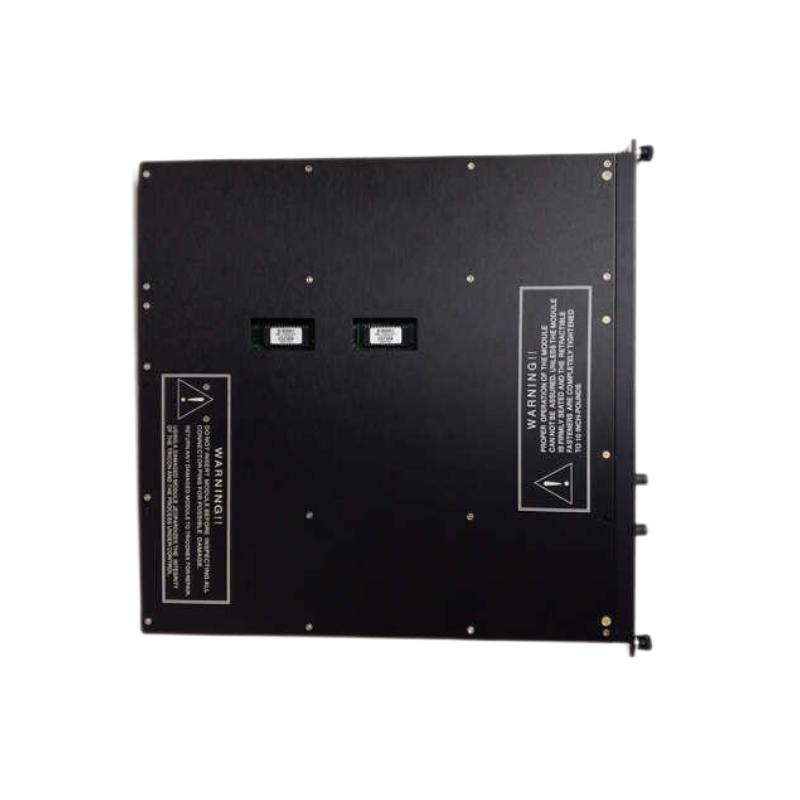

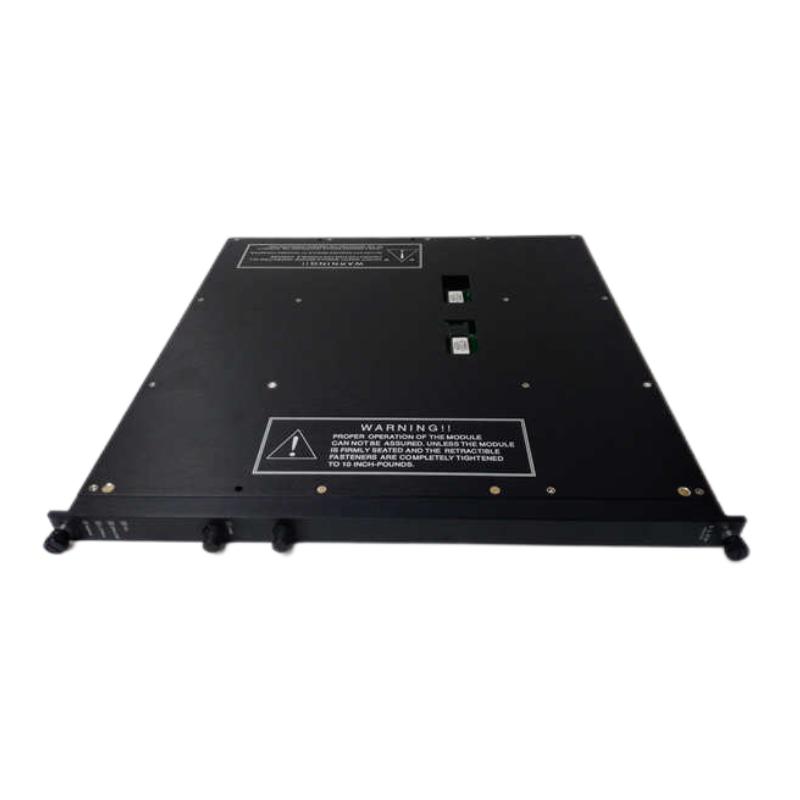

The Triconex 4211 is a remote extender module designed to expand the I/O bus of the Triconex safety controller to remote locations up to 12 km away.

General Information
Part Number: 4211
Manufacturer: Triconex (Schneider Electric)
Brand / Country of Origin: Triconex / USA
Type: Remote Extender Module
Mounting: Plug‑in card installation in Tricon chassis
Technology: Fiber‐optic communication for remote I/O expansion

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 6 W
Protection: Reverse‐polarity and transient protection

Communication & Interface
Interface: Fiber‑optic link to main chassis
Connections: Up to six fiber links per remote site
Diagnostics: LED indicators for PASS, FAIL, ACTIVE, TX/RX status

Environmental
Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet for safety‑instrumented systems

Dimensions & Weight
Dimensions: 170 × 100 × 30 mm
Weight: 1.5 kg

We provide brand-new original items, verified and supported by real-time inventory.

Complete product information, stable inventory, and support for bulk plan negotiation of reasonable prices.
