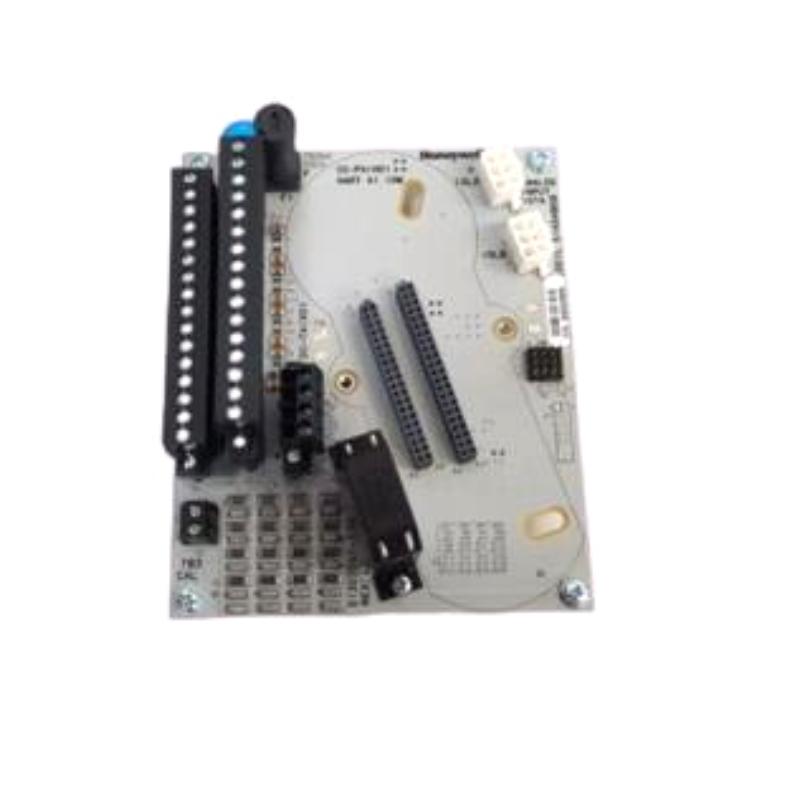

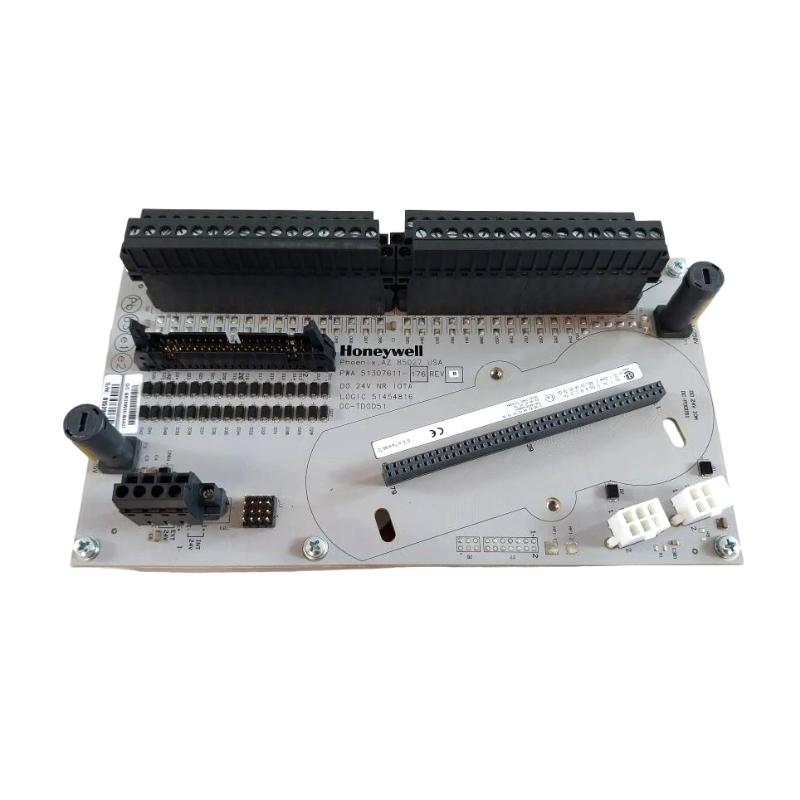

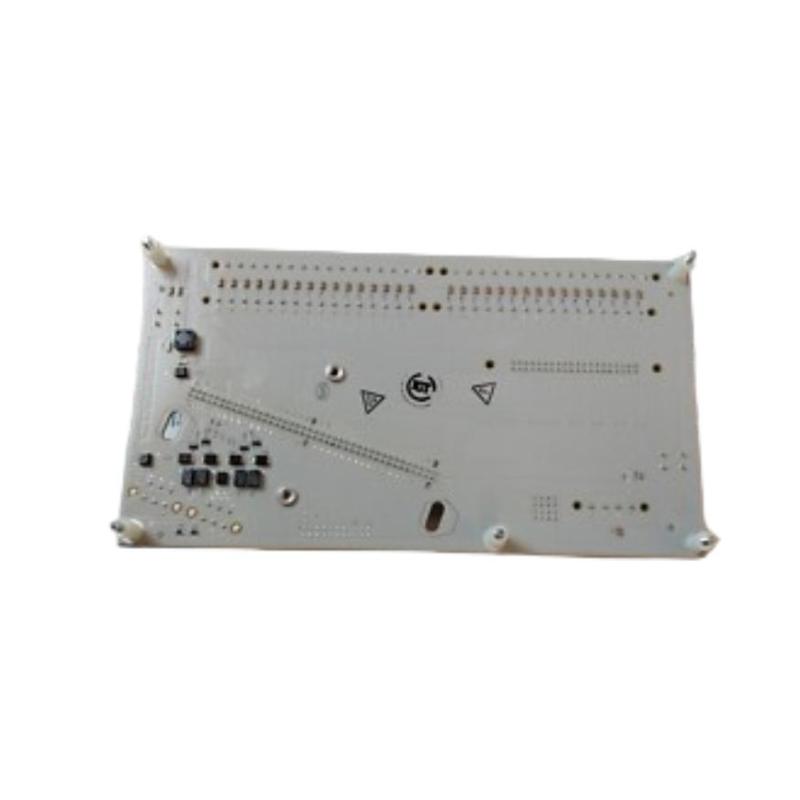

Honeywell DC‑TDOD51 51307611‑176 | Digital Output Module Rave reviews 30-Day Returns！

Brand：Honeywell DCS

Item No.：Honeywell DC-TDOD51 51307611-176

Product origin：USA

Dimensions:22 × 124 × 126 mm

Weight:1.6 kg

Formal channels, complete test instructions, responsive service

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview
The Honeywell DC‑TDOD51 51307611‑176 is a bussed 24 V DC digital output module designed for use with Honeywell Experion and Series‑C I/O systems. It supports standard industrial control loads with comprehensive diagnostics for quality and reliability.

General Information
Part Number: DC‑TDOD51 51307611‑176
Manufacturer: Honeywell International Inc.
Brand / Country of Origin: Honeywell / USA
Type: Digital Output Module (24 V bus, sink type)
Mounting: Rack‑mounted module for Series‑C I/O platform
Technology: Solid state digital outputs, short‑circuit protected, configurable safe‑state behavior

Power Specifications
Supply Voltage: 24 V DC
Load Current: Up to 0.5 A per channel maximum in standard configuration
Protection: Electronic over‑current protection, open‑wire and short‑fault diagnostics
Turn‑On/Turn‑Off Time: Maximum 10 ms
Leakage Current (Off‑State): ≤ 100 µA

Communication & Interface
Interface: Connects to the I/O backplane of Honeywell’s process control system
Channels: Up to 32 discrete digital output channels (depending on configuration)
Diagnostics: Real‑time monitoring of channel status, open‑wire detection and fault indication
Redundancy: Supports dual/ redundant module installation for enhanced system availability

Environmental
Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet (IP20 rated for module)

Dimensions & Weight
Dimensions: 22 × 124 × 126 mm
Weight: 1.6 kg

100% original and unused products, full stock, and dedicated 24/7 assistance.

The product is imported, with complete information, fast delivery, and price advantages. Bulk purchases can be negotiated.
