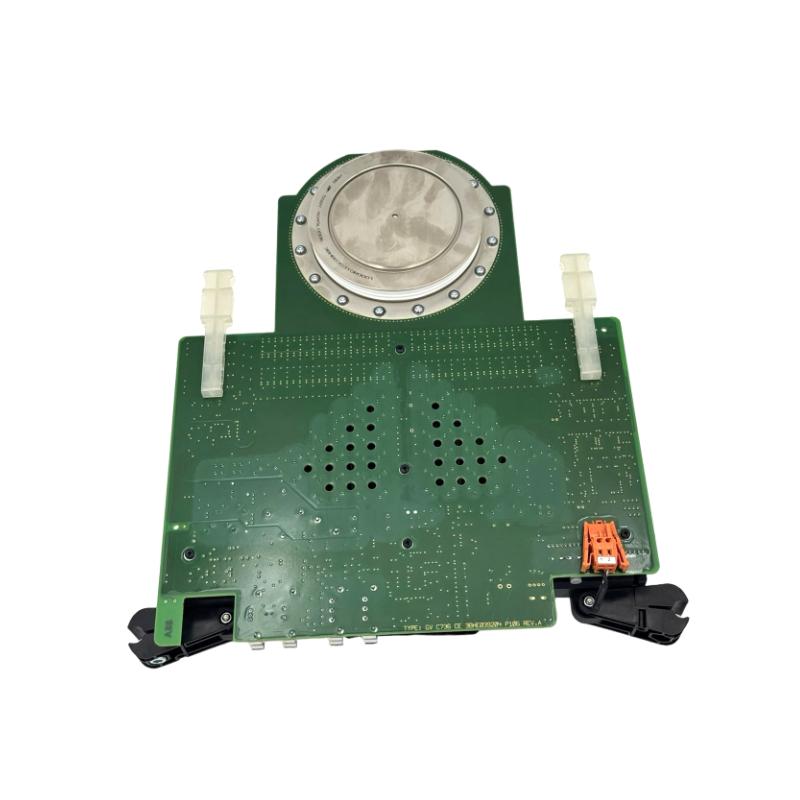

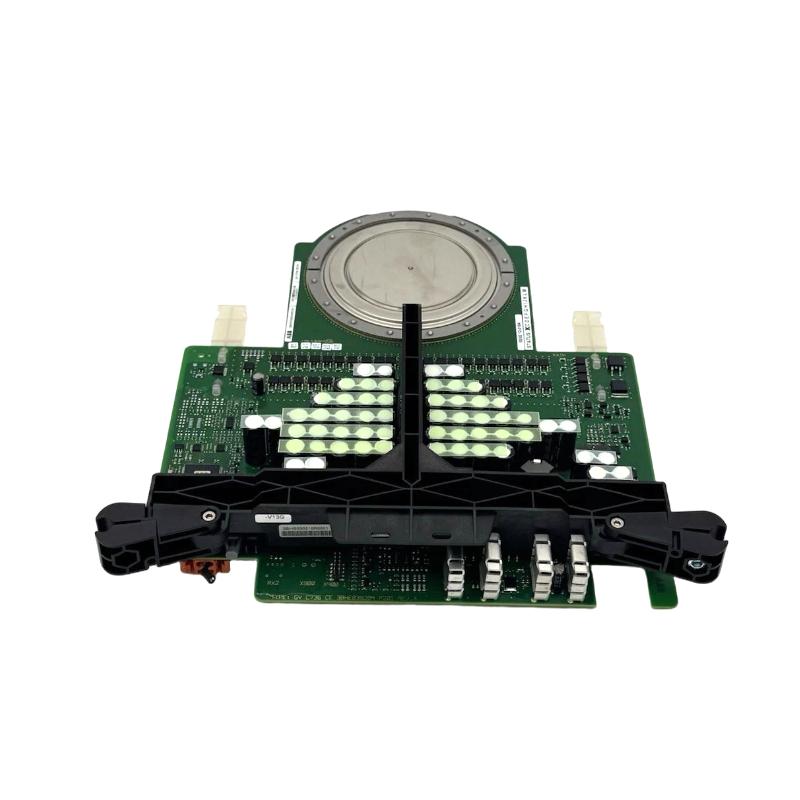

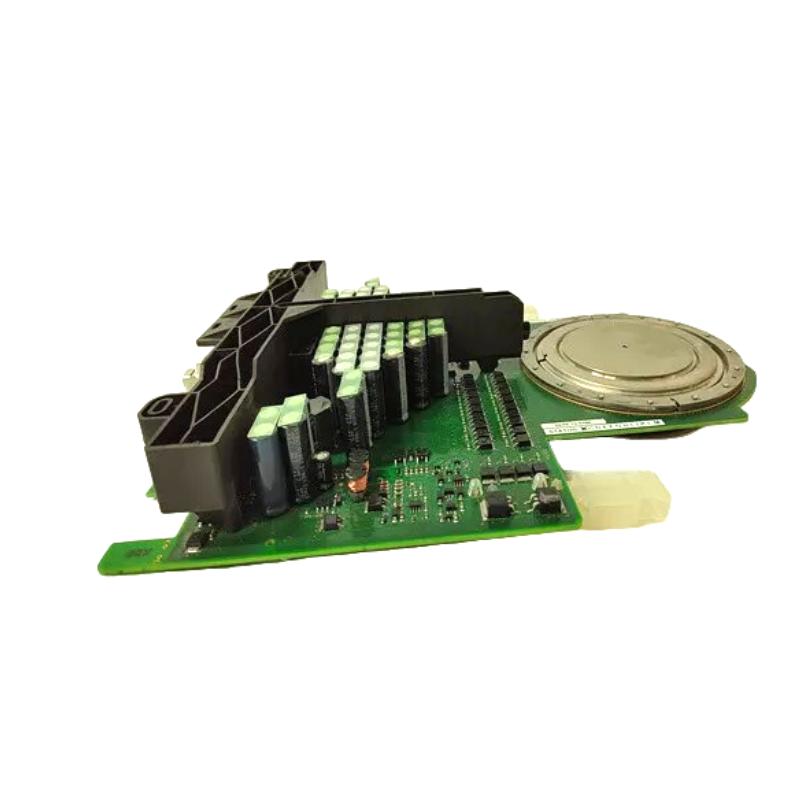

ABB 5SHY4045L0006 3BHB030310R0001 | IGCT Power Module Rave reviews 12-Month Warranty

Brand：ABB PLC

Item No.：ABB 5SHY4045L0006 3BHB030310R0001

Product origin：Sweden

Dimensions:210 × 140 × 45 mm

Weight:3 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview
The ABB 5SHY4045L0006 / 3BHB030310R0001 is a high-power IGCT (Integrated Gate-Commutated Thyristor) module. It combines characteristics of thyristors and transistors to support high-voltage, high-current switching in industrial power electronics applications.

General Information
Part Number: 5SHY4045L0006 / 3BHB030310R0001
Manufacturer: ABB
Brand / Country of Origin: ABB / Switzerland (or ABB’s global manufacturing)
Type: IGCT power semiconductor module
Mounting: Module installation in power converter or inverter assemblies
Technology: Gate-commutated thyristor with integrated drive and protection circuitry

Power Specifications
Rated Voltage: 4,500 V
Switching Speed: Microsecond-level switching capability
On-State Voltage Drop: Low voltage drop to reduce conduction loss
Current Capability: Designed for large currents (typically in the kiloampere range)
Protection: Built-in overcurrent, overvoltage, thermal protection
Cooling: Requires effective heat removal (liquid cooling or forced-air cooling recommended)

Communication & Interface
Interface: Driven via gate control signals (often via fiber-optic or isolated drive circuits)
Diagnostics: Support for module status feedback (e.g. fault, drive error)
Integration: Compatible with high-voltage inverter systems (e.g. ABB ACS / PCS / HV drives)

Environmental
Operating Temperature: Suitable for industrial power environments
Humidity: Designed for non-condensing high-humidity industrial environments
Installation Environment: Intended for installation inside power electronic racks or enclosures

Dimensions & Weight

Dimension: 210 × 140 × 45 mm

Weight: Approximately 3 kg
