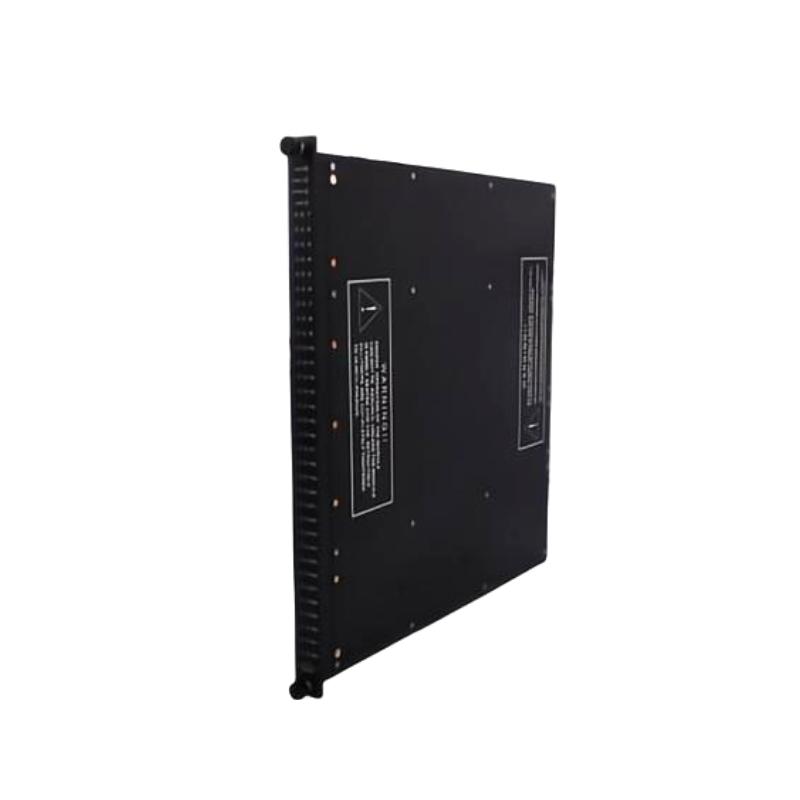

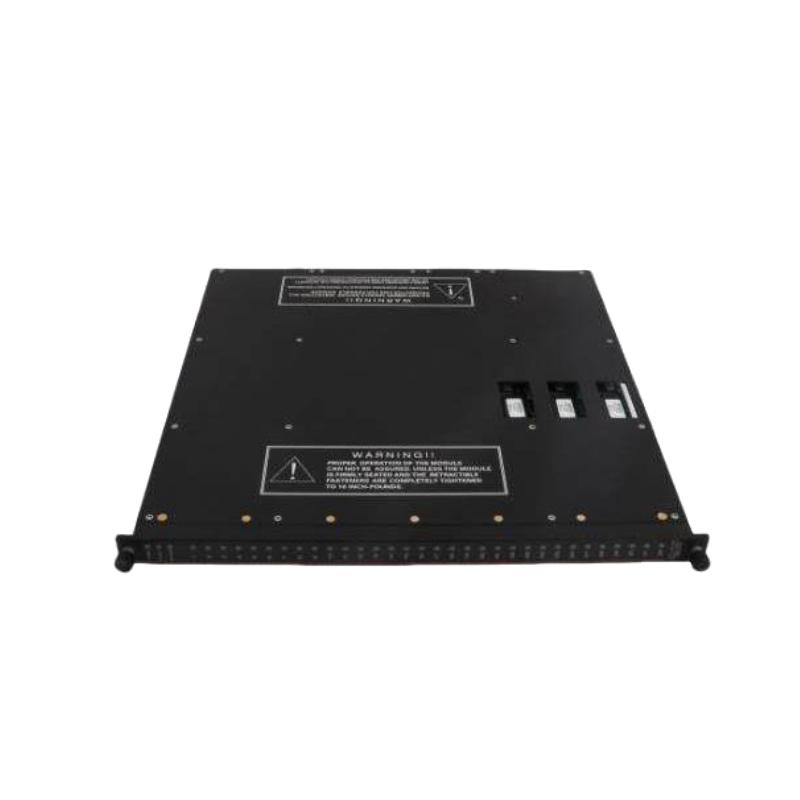

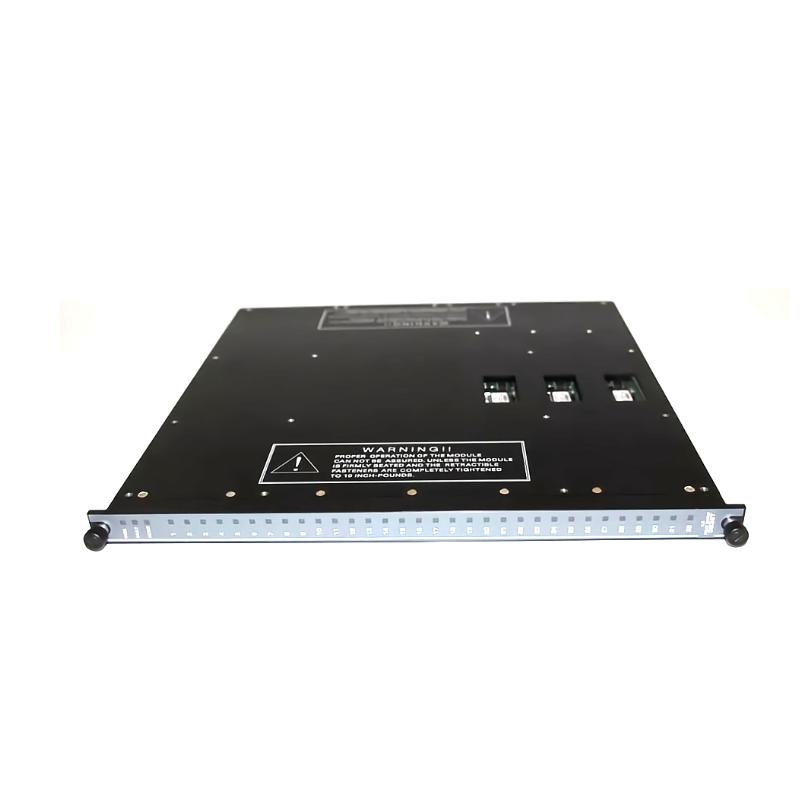

Triconex 3636T | Relay Output Module 30-Day Returns 12-Month Warranty

Brand：Invensys Triconex

Item No.：Triconex 3636T

Product origin：USA

Dimensions:160 × 160 × 120 mm

Weight:0.5 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview
The Triconex 3636T is a non‑triplicated relay output module designed for industrial control systems. It supports 32 individual relay channels with loop‑back verification and continuous diagnostics for reliable operation.

General Information
Part Number: 3636T
Manufacturer: Triconex (Schneider Electric)
Brand / Country of Origin: Triconex / USA
Type: Relay Output Module
Mounting: Plug‑in card installation in Triconex I/O chassis
Technology: 32 normally‑open relay contacts, three‑channel vote from main processor, hot‑spare capable

Power Specifications
Voltage Range: Up to 125 VAC/DC maximum
Maximum Load Current: 2 A per channel
Switching Power: Up to 150 W resistive (approx.), or 2 000 VA switched power
Point Isolation Voltage: Approximately 1 900 V DC
Fuse: 2.5 A fast‑acting fuse per output channel

Communication & Interface
Interface: Backplane connection to the Triconex system logic bus
Channels: 32 individual relay outputs (non‑commoned)
Diagnostics: Each channel has loop‑back verification of relay switch; module status gives PASS/FAULT/ACTIVE indication
Redundancy: Supports hot‑spare modules for increased system availability

Environmental
Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or safety instrumented system

Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 160 × 120 mm
Weight: Approx. 0.5 kg
