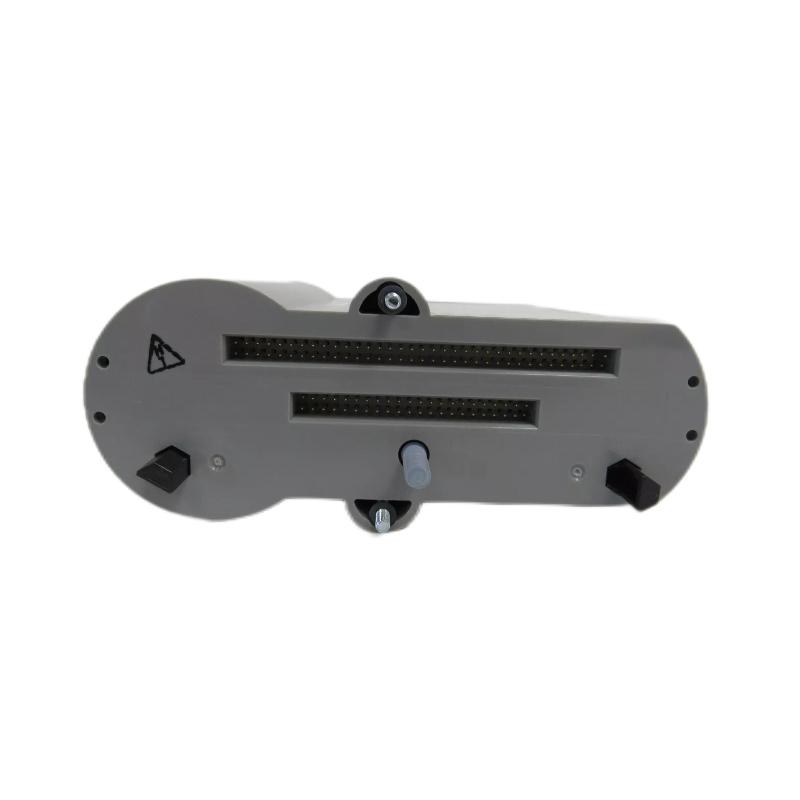

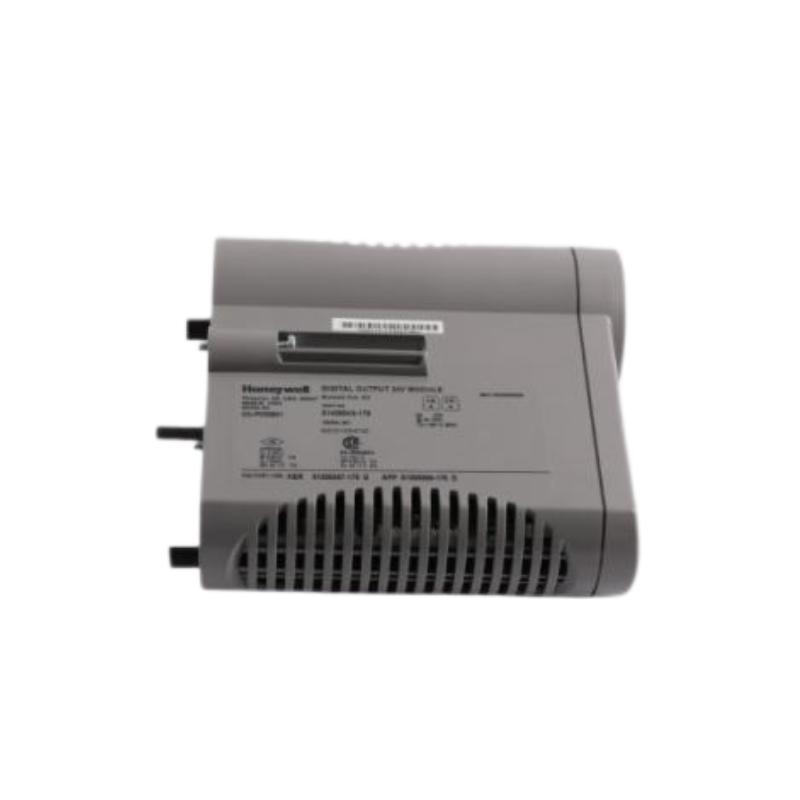

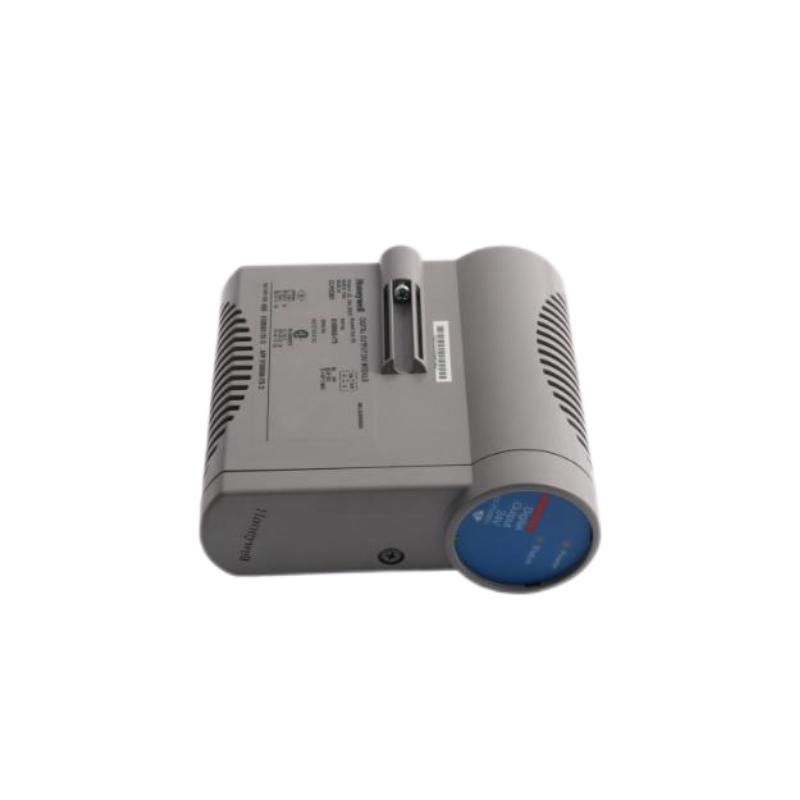

Honeywell CC‑PDOB01 51405043‑176 | Digital Output Module Hot Items Original

Brand：Honeywell DCS

Item No.：Honeywell CC-PDOB01 51405043-176

Product origin：USA

Dimensions:191 × 188 × 65 mm

Weight:0.3 kg

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview

The Honeywell CC‑PDOB01 51405043‑176 is a 32‑channel digital output module designed for industrial automation systems. It supports 24 V DC load applications and features built‑in diagnostics for enhanced reliability in demanding environments.

General Information

Part Number: CC‑PDOB01 51405043‑176
Manufacturer: Honeywell International Inc.
Brand / Country of Origin: Honeywell / USA
Type: Digital Output Module
Mounting: Plug‑in installation on I/O rack in control cabinet
Technology: 32 discrete 24 V DC outputs, galvanically isolated, short‑circuit protected

Power Specifications

Supply Voltage: 24 V DC
Load Voltage: Up to 30 V DC maximum
Load Current: Typically 0.5 A per channel under normal conditions
Protection: Galvanic isolation rated 1500 V AC RMS (or ±1500 V DC) between logic and field outputs
Turn‑On/Off Time: Up to 10 ms maximum

Communication & Interface

Interface: Connects to Series‑C I/O backplane for digital output data transfer
Diagnostics: Per‑channel status monitoring, detection of open‑wire and short failures, configurable fail‑safe behavior
Redundancy: Compatible with redundant I/O rack configuration for increased system availability

Environmental

Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Suitable for standard industrial control cabinet use

Dimensions & Weight

Dimensions (L × W × H): Approx. 191 × 188 × 65 mm
Weight: Approx. 0.30 kg

Our inventory consists of factory-new original components, with dedicated support available anytime.

Imported products have stable supply, flexible prices, fast delivery response, and support solutions for large quantities.
