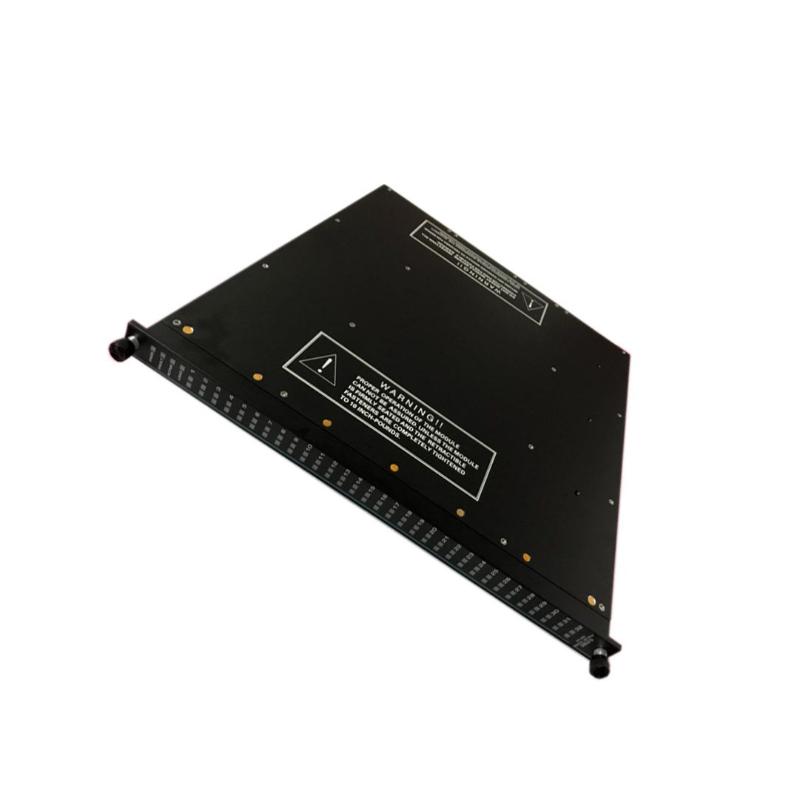

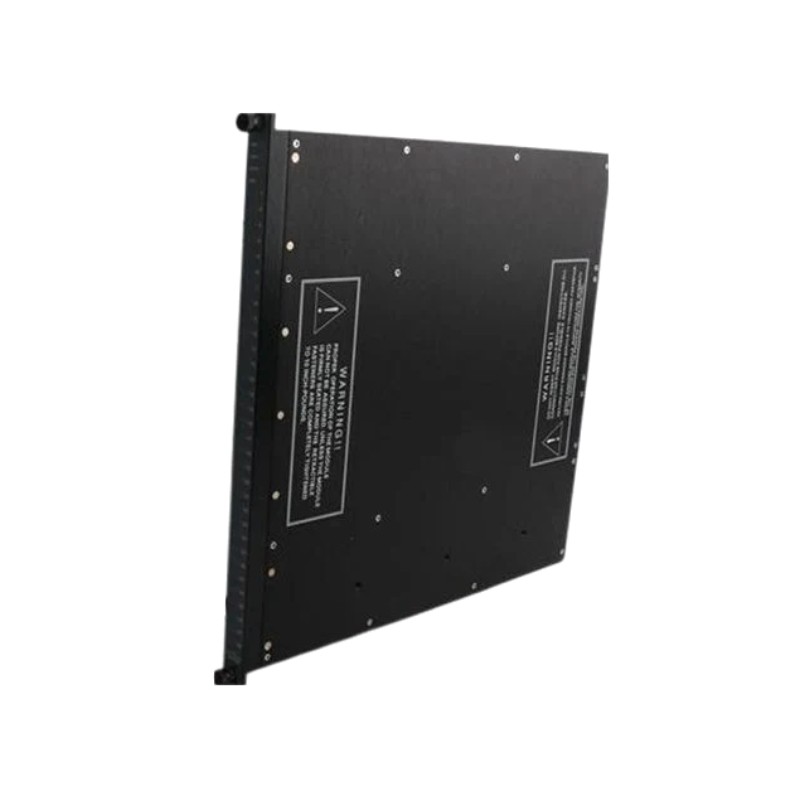

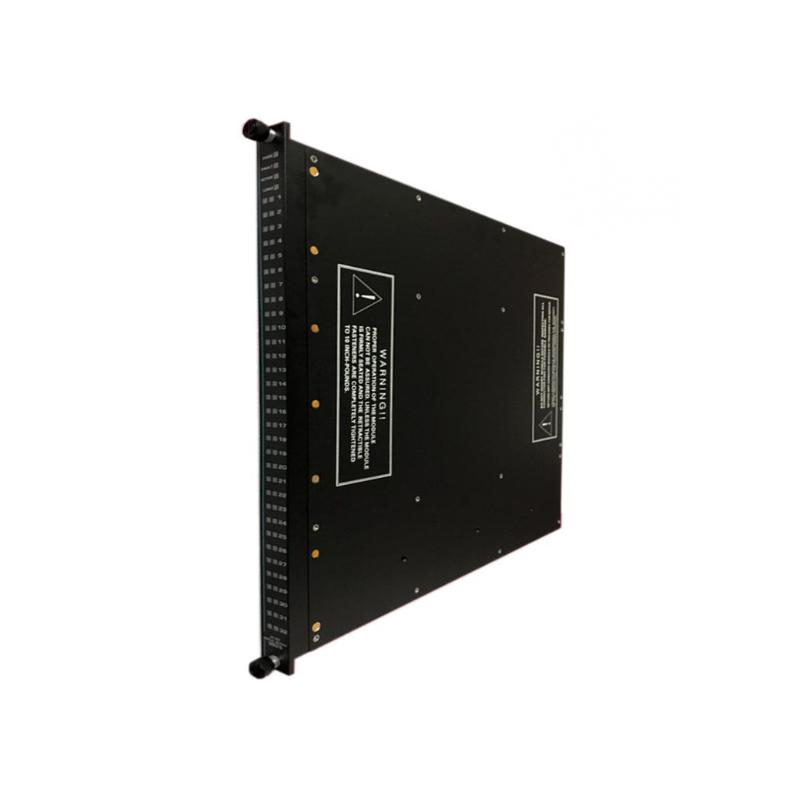

Triconex 3625N | 24 V DC Digital Output Module Original Original

Brand：Invensys Triconex

Item No.：Triconex 3625N

Product origin：USA

Dimensions:160 × 160 × 120 mm

Weight:1.5 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The product inventory is continuously updated, and the order demand is quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

The Triconex 3625N is a 32-channel digital output module designed for safety-critical and fault-tolerant control systems. It provides both supervised and non-supervised outputs with built-in diagnostics to ensure reliable operation in industrial environments.

General Information

Part Number: 3625N
Manufacturer: Triconex (Schneider Electric)
Brand / Country of Origin: Triconex / USA
Type: Digital Output Module
Mounting: Plug-in card installation in Triconex I/O chassis
Technology: Supervised digital outputs with load monitoring and triple-modular redundancy architecture

Power Specifications

Supply Voltage: 24 V DC nominal
Voltage Range: 16–32 V DC
Maximum Load Current: Approx. 1.7 A per channel
Protection: Short-circuit and open-load detection, load supervision

Communication & Interface

Interface: Backplane connection to Triconex system
Channels: 32 digital output channels
Diagnostics: Monitors load presence, open/short circuits, and field wiring faults
Redundancy: Supports triple modular redundancy (TMR) for high system availability

Environmental

Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinets and safety instrumented systems

Dimensions & Weight

Dimensions (L × W × H): Approx. 160 × 160 × 120 mm
Weight: Approx. 1.5 kg

Reliable stock of authentic brand-new items, with continuous customer support for quotations.

The inventory of the product is stable, the delivery response is fast, the unit price is reasonable, and large orders are supported for negotiation discounts.
