Triconex 3601T | Digital Output Module 12-Month Warranty Unbelievable Prices!

Brand：Invensys Triconex

Item No.：Triconex 3601T

Product origin：USA

Dimensions:132 × 100 × 220 mm

Weight:0.5 kg

Formal sources, cooperative testing instructions, and continuous follow-up of after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product Introduction：

Overview

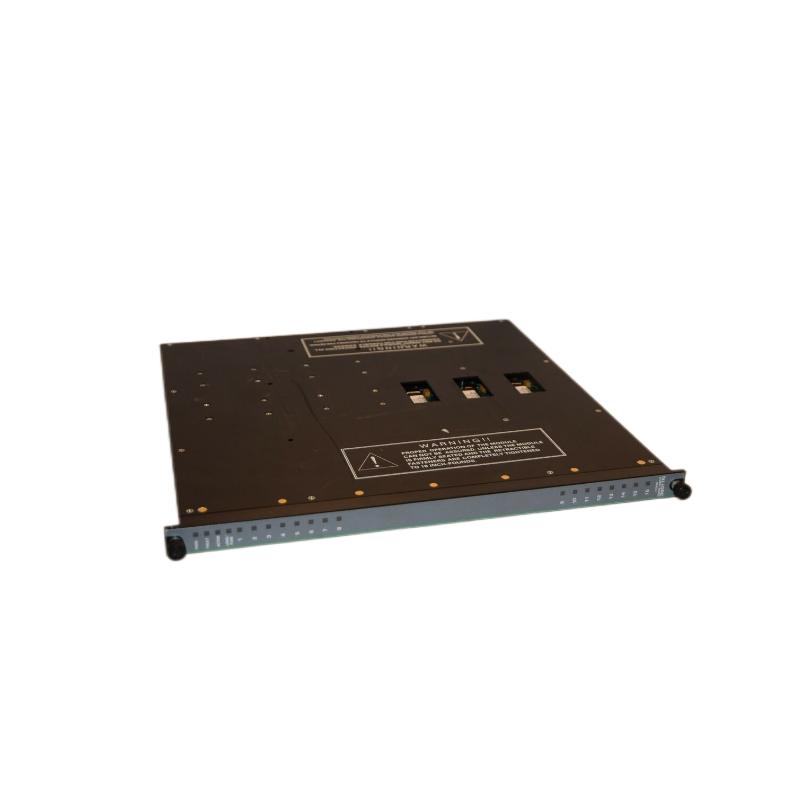

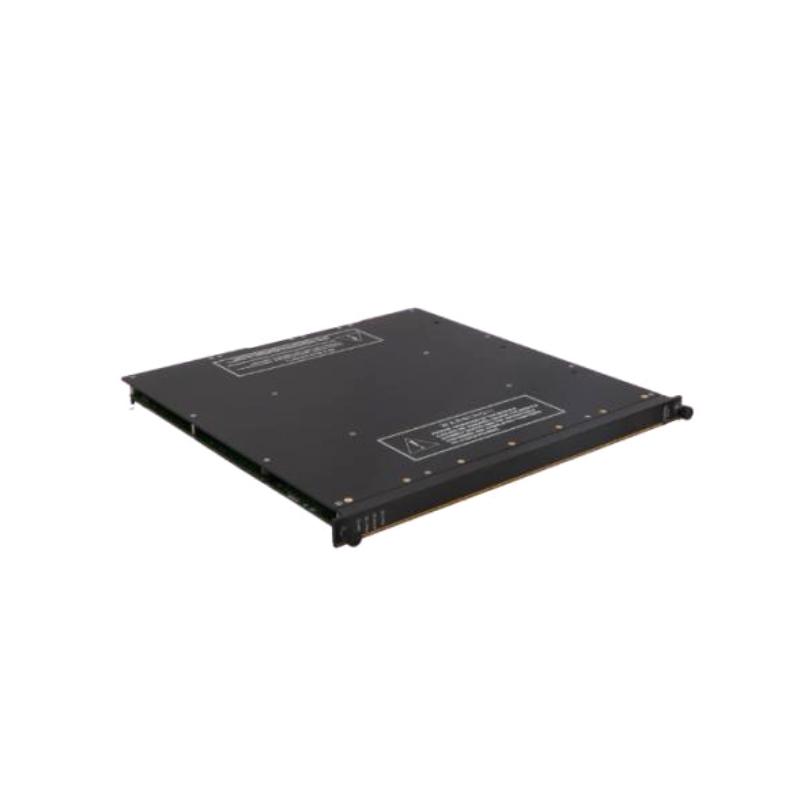

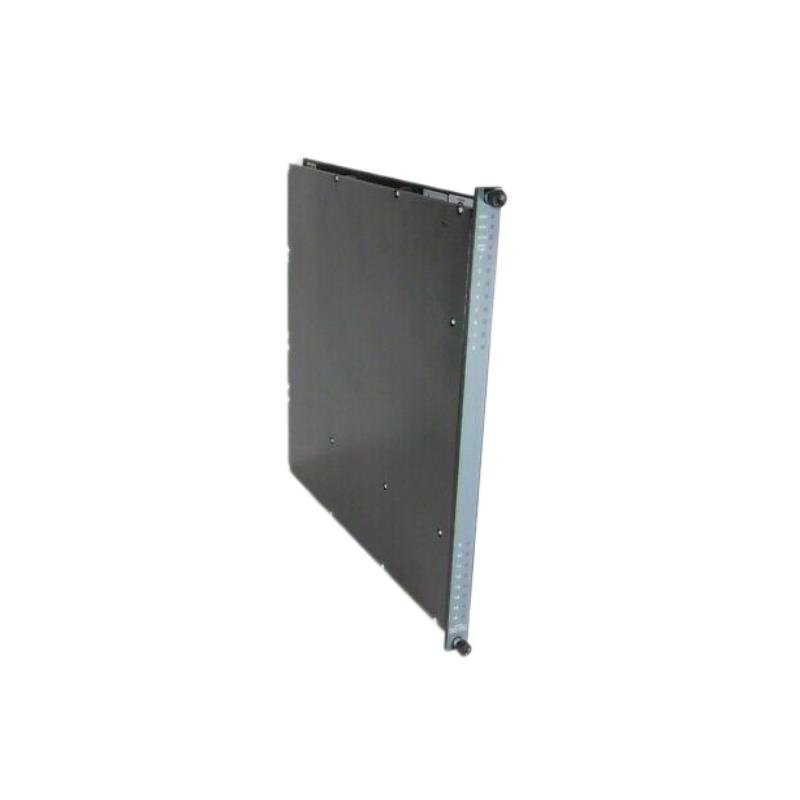

The Triconex 3601T is a Triple Modular Redundant (TMR) digital output module built for high‑integrity industrial safety systems. Brand: Triconex. Country of Origin: USA.

General Information
Part Number: 3601T
Manufacturer: Triconex (Schneider Electric)
Brand: Triconex
Country of Origin: USA
Type: Digital Output Module
Channels: 16 independent output points
Function: Converts voted logic signals from the TMR system into field‑driving digital outputs for actuators and devices.

Power Specifications
Nominal Output Voltage: 115 V AC
Operating Voltage Range: 80‑155 V AC, 47‑63 Hz
Maximum Output Current: 2 A per channel continuous
Surge Capability: Up to 12 A per channel for short durations
Leakage Current (Off state): Max 2 mA at 60 Hz
Isolation Voltage: 1500 V DC or higher between each point and system logic

Communication & Interface
Signal Type: Digital discrete outputs
Architecture: Triple Modular Redundancy with channel‑wise voting logic
Diagnostics: Per‑channel status indicators, load/fuse fault detection, module status LED
Field Interface: Requires external termination panel for field wiring

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Installation: Suitable for use in safety‑instrumented systems and industrial cabinets

Dimensions & Weight
Dimensions: Approx. 132 × 100 × 220 mm
Weight: Approx. 0.5 kg

Brand-new factory-sealed inventory, contact us anytime for immediate quotations.

The product price is transparent, delivery is fast, and project procurement supports a tiered pricing plan.
