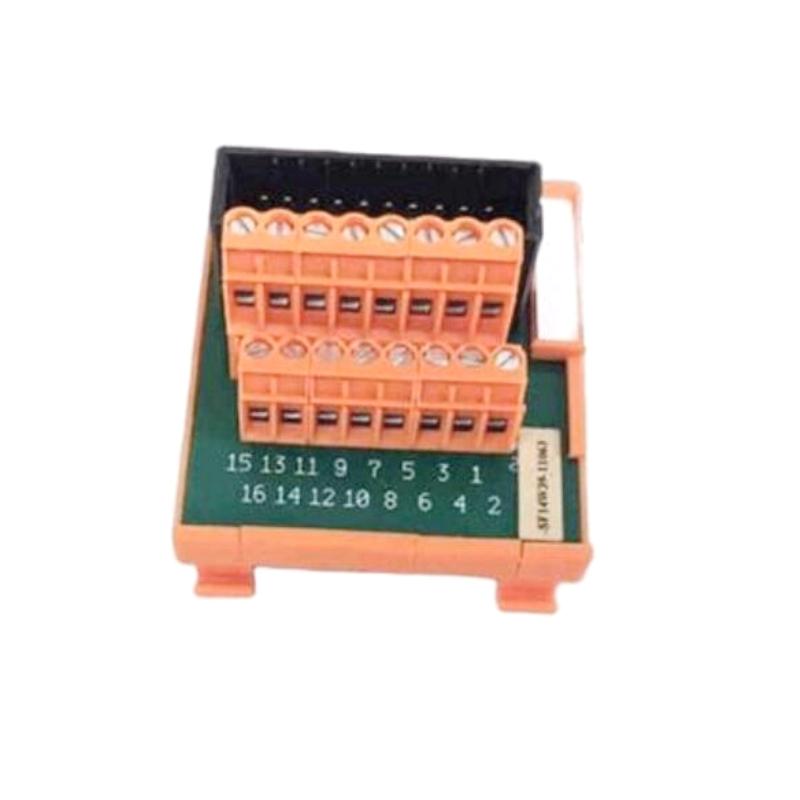

Honeywell FC-TSDO-0824 | 8-Channel Safe Digital Output Original 12-Month Warranty

Brand：Honeywell DCS

Item No.：Honeywell FS-TSDO-0824

Product origin：USA

Dimensions:60 × 70 × 58 mm

Weight:0.3 kg

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview
The Honeywell FC-TSDO-0824 is a safety-rated digital output field termination assembly designed for interface between control modules and external field wiring. Brand: Honeywell. Country of Origin: USA.

General Information
Part Number: FC-TSDO-0824
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Channels: 8 output loops
Function: Provides safe isolated digital outputs for field devices and connects to redundant digital output modules

Power Specifications
Rated Supply: 24 V DC nominal
Maximum Voltage: Up to 36 V DC (depending on installation)
Maximum Continuous Current Per Channel: Up to approximately 1.5-2.0 A (depending on external output module)
Protection: Designed for safe-system integration and channel isolation

Communication & Interface
Signal Type: Digital output loop drivers for safety device control
Connection: Screw-terminal field wiring and DIN-rail mountable termination assembly
Interface Role: Connects to digital output module pair (e.g., SDO-0824) and the system interconnection cable
Diagnostics: Fault monitoring for each loop including short-circuit or open-circuit detection

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Approvals: CE, TUV, UL, CSA, FM listed for use in safety-instrumented systems

Dimensions & Weight
Dimensions: 60 × 70 × 58 mm (approximate)
Weight: ~0.3 kg
