Product Introduction：

Overview

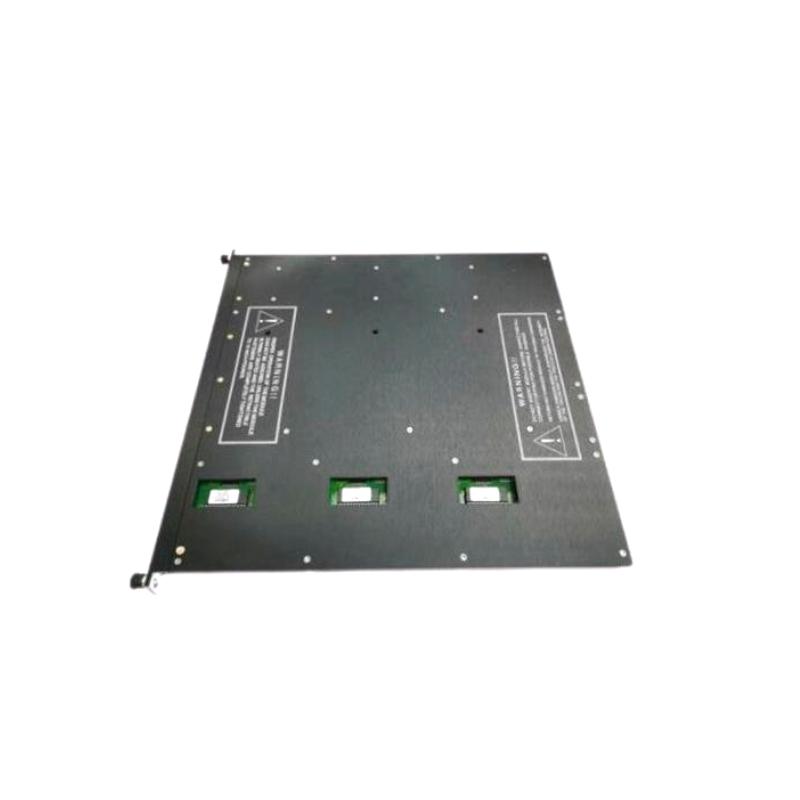

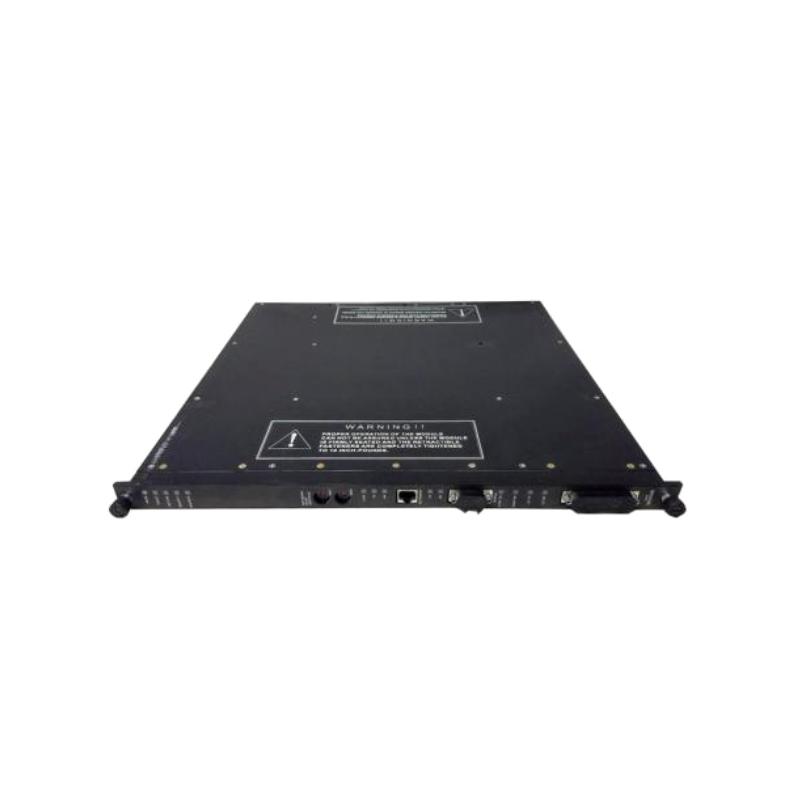

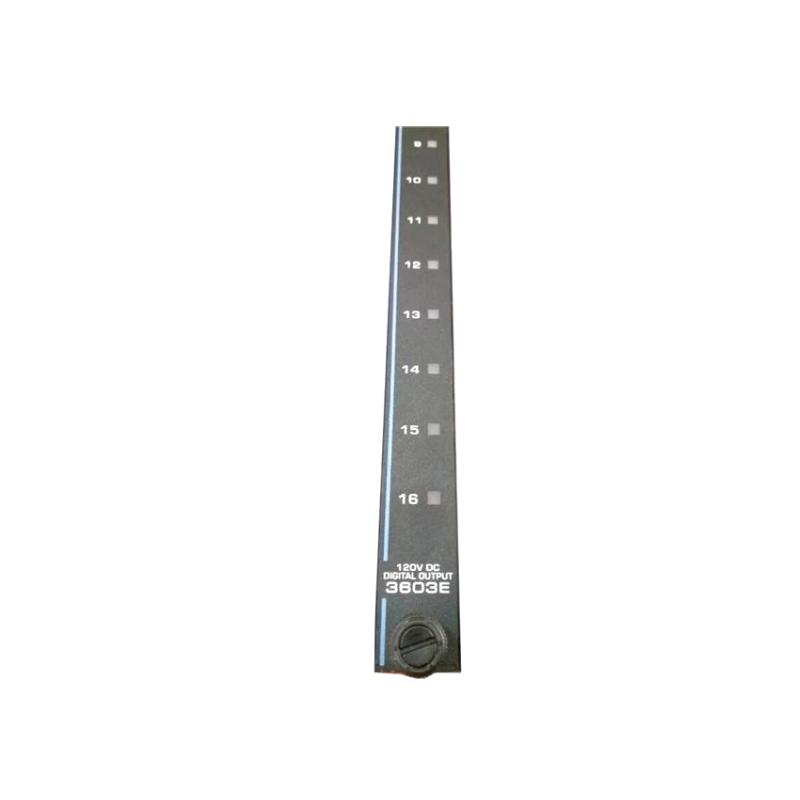

The Triconex 3603E is a Triple Modular Redundancy (TMR) digital output module designed for safety‑critical industrial control systems. Brand: Triconex. Country of Origin: USA.

General Information
Part Number: 3603E
Manufacturer: Triconex
Brand: Triconex
Country of Origin: USA
Type: Digital Output Module
Channels: 16 output points (commoned)
Function: Converts voted logic signals into field‑driving digital outputs with diagnostics and high fault tolerance.

Power Specifications
Nominal Voltage: 120 V DC
Voltage Range: 90‑150 V DC
Maximum Current: 0.8 A per channel continuous
Surge Current: Up to 4 A for 10 ms
Leakage Current (Off‑state): 2 mA maximum
Isolation: ≥1500 V DC between channels and system logic

Communication & Interface
Signal Type: Discrete digital outputs
Architecture: TMR with quadruplicated voter circuitry and hot‑spare capability
Diagnostics: Per‑channel ON/OFF status, module PASS/FAULT/ACTIVE indicators, LOAD/FUSE alarm per channel
Interface: Connects via system backplane to field termination hardware

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Installation: Suitable for control cabinets and safety‑instrumented environments

Dimensions & Weight
Dimensions: Approximately 132 × 100 × 220 mm
Weight: Approximately 0.9 kg
