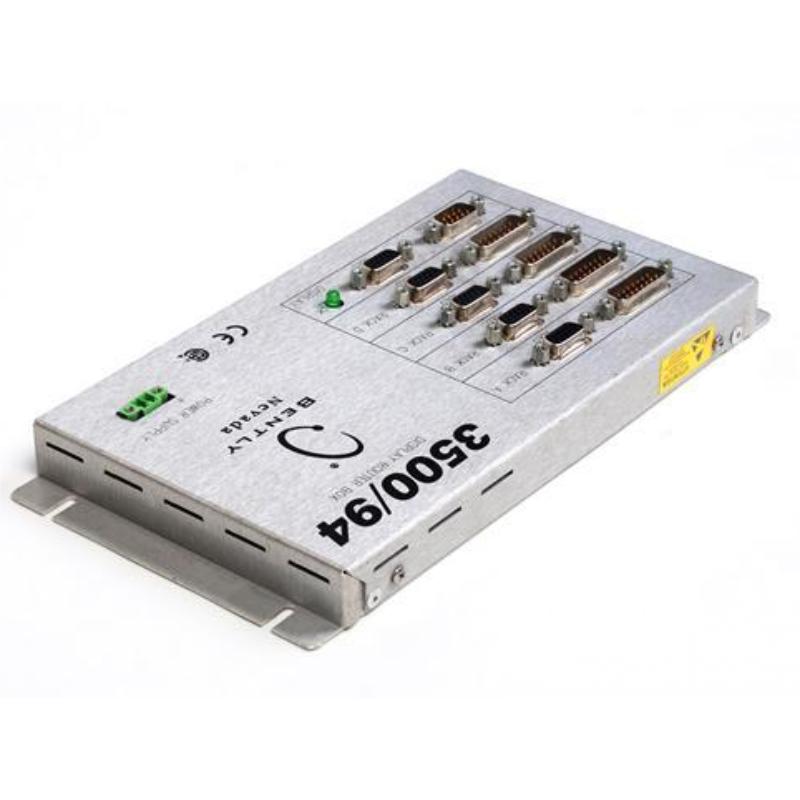

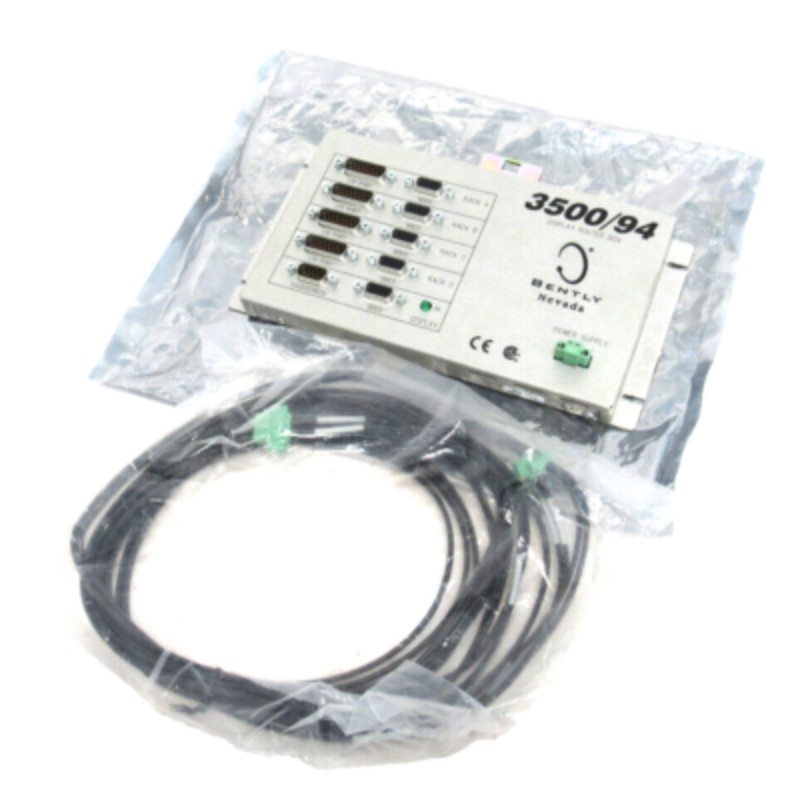

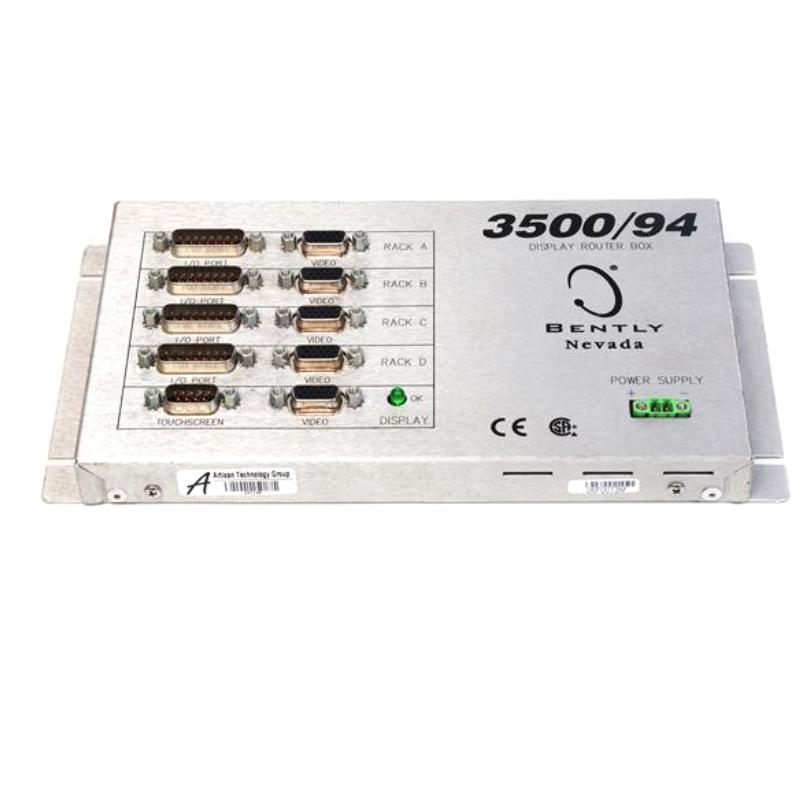

Bently Nevada 3500/94 146377‑01 | Display Router Box Module Rave reviews Fast Shipping!

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/94 146377-01

Product origin：USA

Dimensions:241.3 × 24.4 × 241.8 mm

Weight:0.73 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The model is complete, and the inventory is updated in real time. Welcome to get the latest list!

Product Introduction：

Overview
The 146377‑01 is a display router module for the Bently Nevada 3500/94 system. It routes video signals from multiple racks to a single display, enabling shared visual monitoring.

General Information
Part Number: 146377‑01
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: USA
Type: Display Router / Video Switch Module
Function: Selects which rack’s VGA output is displayed on a single monitor

Power Specifications
Supply Voltage: +24 V DC from rack backplane
Power Consumption: Low, consistent with standard analog/video switching electronics
Protection: Internal voltage regulation and tolerance for industrial signal conditions

Communication & Interface
Video Inputs: Accepts VGA inputs from multiple rack modules
Video Output: Provides a single VGA output to display or touch screen
Control Interface: Receives routing commands via rack communications
Diagnostics: LED indicators showing module status and active rack selection

Environmental
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Installation: Fits within 3500/94 display cabinet or remote display configurations

Dimensions & Weight
Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: 0.73 kg
