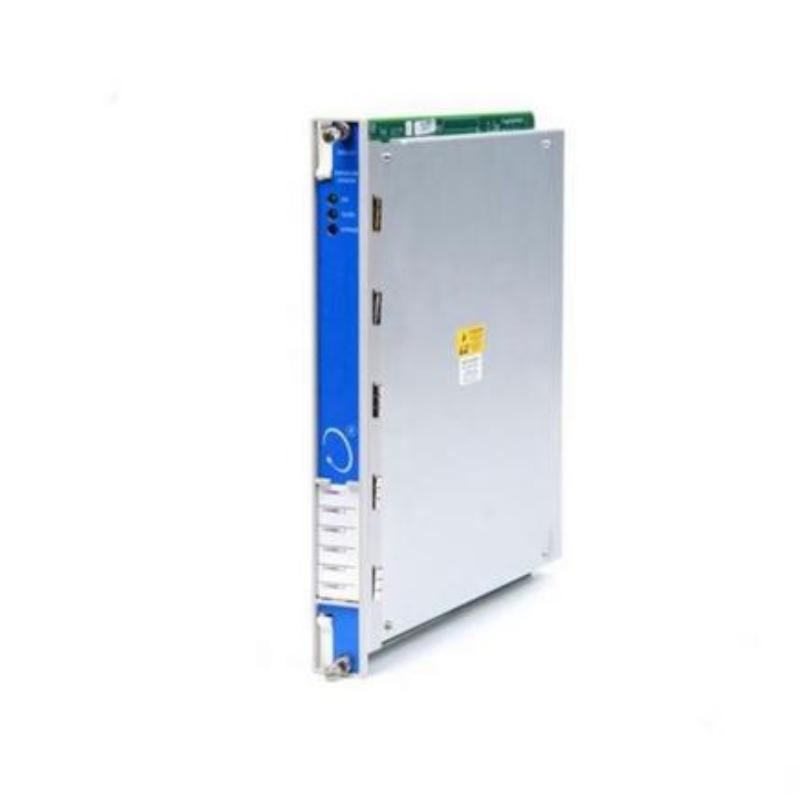

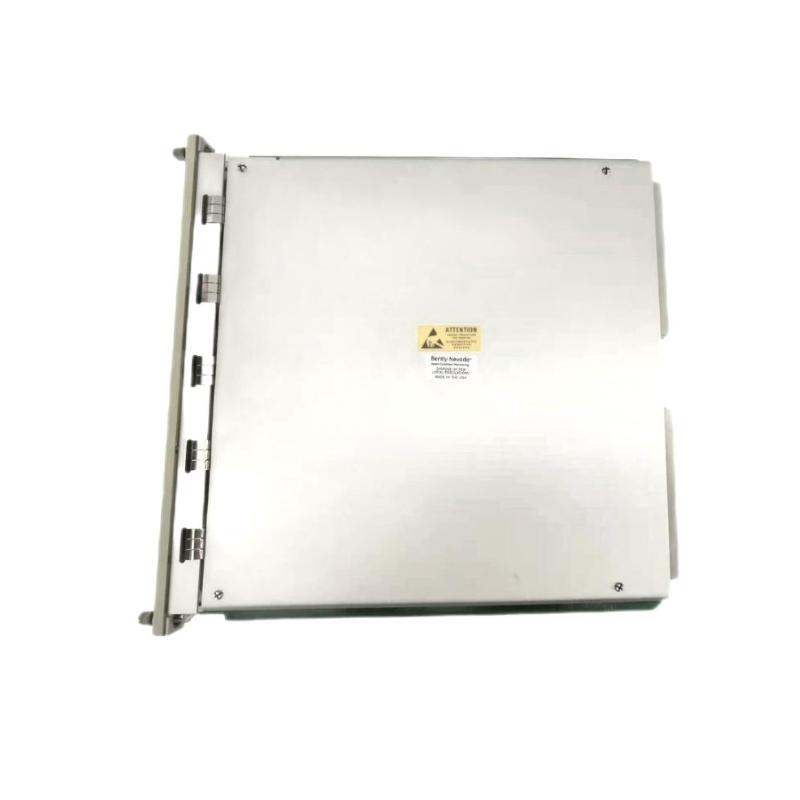

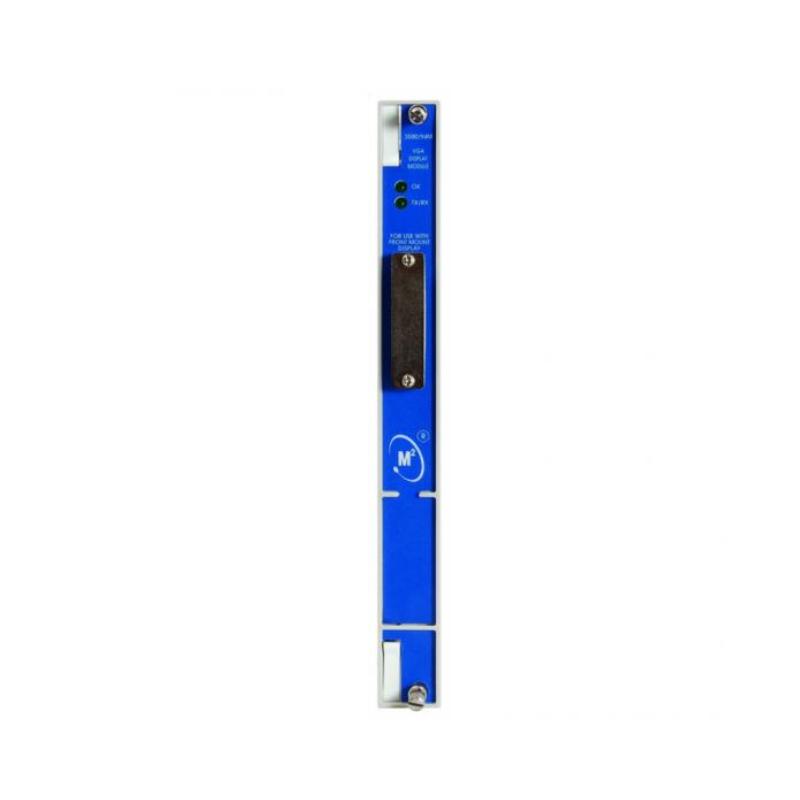

Bently Nevada 3500/94 145988‑01 + 147663‑01 | Display Router + VGA Display Module Original 12-Month Warranty

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/94 145988-01+147663-01

Product origin：USA

Dimensions:241.3 x 24.4 x 241.8 mm

Weight:0.73 kg

Original import channel supply, support testing instructions, worry-free after-sales

A wide range of spot models, support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview
This combined set includes the 145988‑01 display router and 147663‑01 VGA display module for the 3500/94 system. The router directs rack video outputs to a display, while the VGA module presents system data and user interface. Brand: Bently Nevada. Country of Origin: USA.

General Information
Modules: 145988‑01 (Router) + 147663‑01 (VGA Display)
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: USA
Function: Routes video from multiple racks and provides the user display interface

Power Specifications
Supply Voltage: +24 V DC via rack interface
Power Consumption: Determined by display backlighting and router electronics
Protection: Internal regulation, tolerance to supply variances

Communication & Interface
Video Routing: Router accepts VGA inputs from up to four racks
Display Output: VGA module drives touch‑screen or standard display
Control Signals: Router logic steers which rack is shown; display module shows alarms, events, system data
Diagnostics: LEDs for OK, TX/RX, active selection

Environmental
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Installation: Fits into 3500/94 display cabinet or remote display mounting

Dimensions & Weight
Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: 0.73 kg

Genuine new stock available, customer service online all day for pricing and inquiries.

The product inventory cycle is short, the delivery response is fast, the price coordination is high, and batch cooperation has advantages.
